Siemens SIPROCESS GA700 User Manual

Operating with the Local User Interface
Operating Manual, 06/2017, A5E31930478-05
255
Alarm, error, and system messages
7
7.1
LUI symbol sets
Indicators
The symbols are displayed in the status bar and the message list. They provide visual
information on the current status of your device. The symbols of messages with the highest
message level are displayed in the status bar. You will find additional information in the
section → OXYMAT 7 message list (Page 257).
You use either the SIMATIC PCS7 symbol set or the Namur symbol set. For information on
making settings, see: → Setting the symbol sets (Page 101).

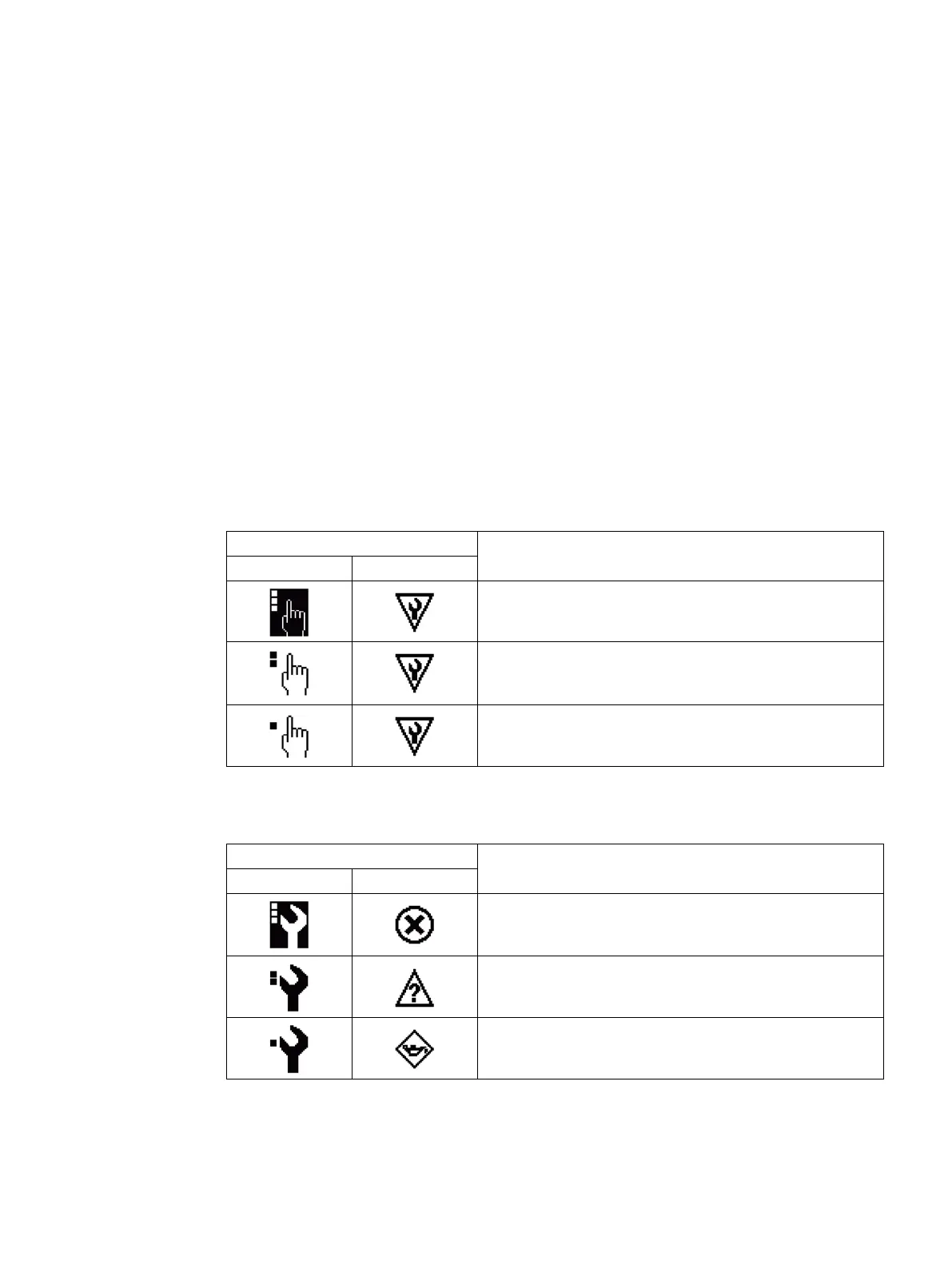

Table 7- 1 Function check indicators
Symbols
Description
PCS7
Namur
Manual operation, e.g., calibration.
Function check is active.
Simulation or substitute value is output.
Function check is active. For example: a predefined simula-
tion value is output at the current output.
Function check is active, e.g. a user is logged on.
Table 7- 2 Maintenance indicators
Symbols
Description
PCS7
Namur
Maintenance alarm / fault
The measured value is invalid. Check list of pending messag-
es.
Maintenance demanded
Maintenance required
