Operation
4.3 Display
Operating with the Local User Interface
Operating Manual, 06/2017, A5E31930478-05
67
Main view (selection mode)

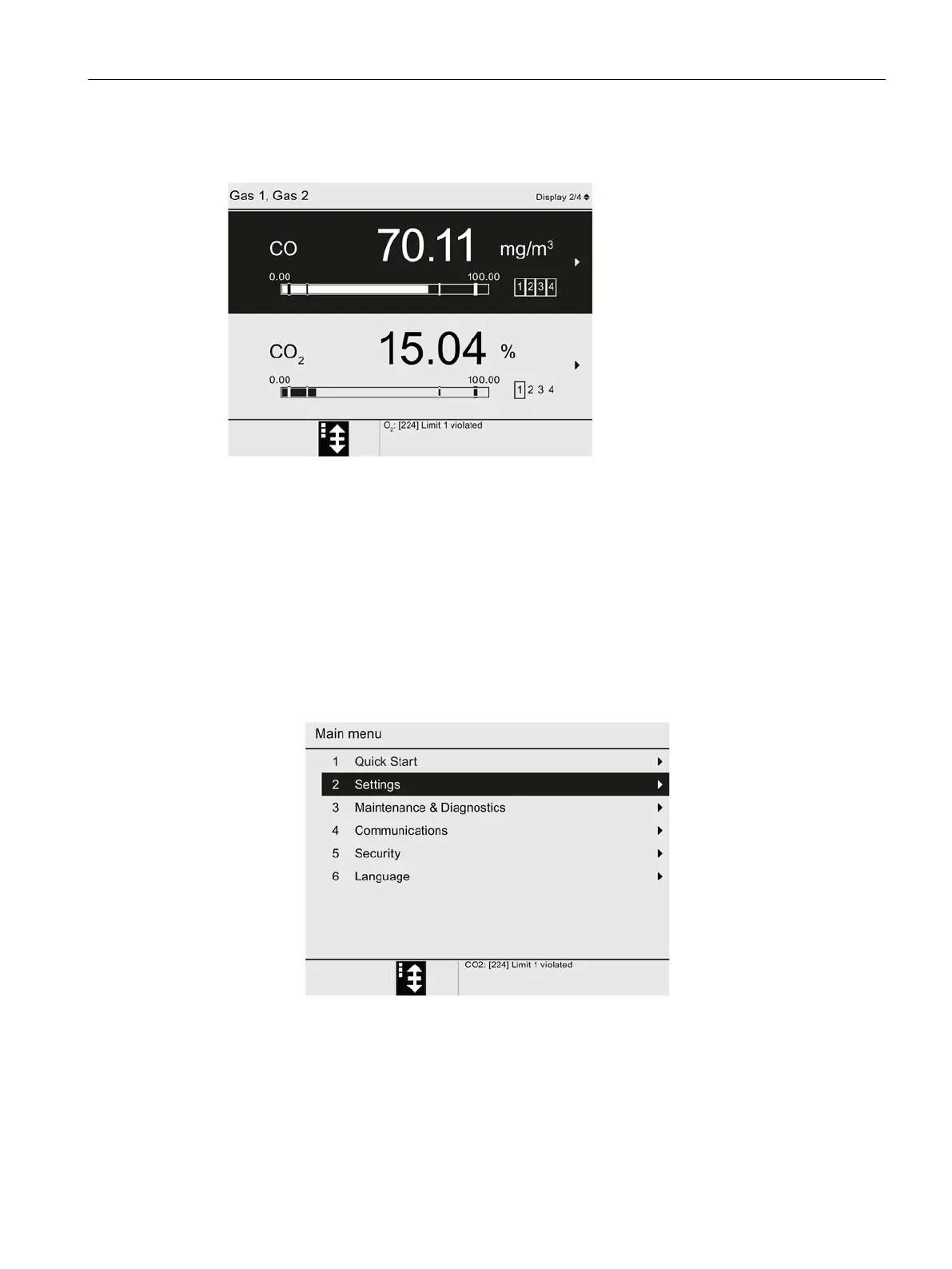

Figure 4-13 Example: Main view with two components in selection mode
If you press <ENTER> in one of the two measured-value displays, the display switches from
read mode to selection mode. The first displayed component is highlighted with a black
background.
Use the <
> and <
> keys to select between displayed components. Use the <
> or
<ENTER> key to change to the menus of the selected component. You can find information
about views in the read mode under: →
Main view (read mode) (Page 63),
Figure 4-14 Example: Main menu
The navigational display comprises all levels of the menu structure in which you open
device-, module-, or component-specific menus, and select their menu entries. The currently
selected menu entry is always highlighted with a black background.
