Siemens SIPROCESS GA700 User Manual

Operation
4.3 Display
Operating with the Local User Interface
60 Operating Manual, 06/2017, A5E31930478-05
4.3
Display
4.3.1
Structure
The figure below shows the structure of the display using a measured-value display of all
components in read mode as an example.
①
Header
③
Status bar
②
Display area

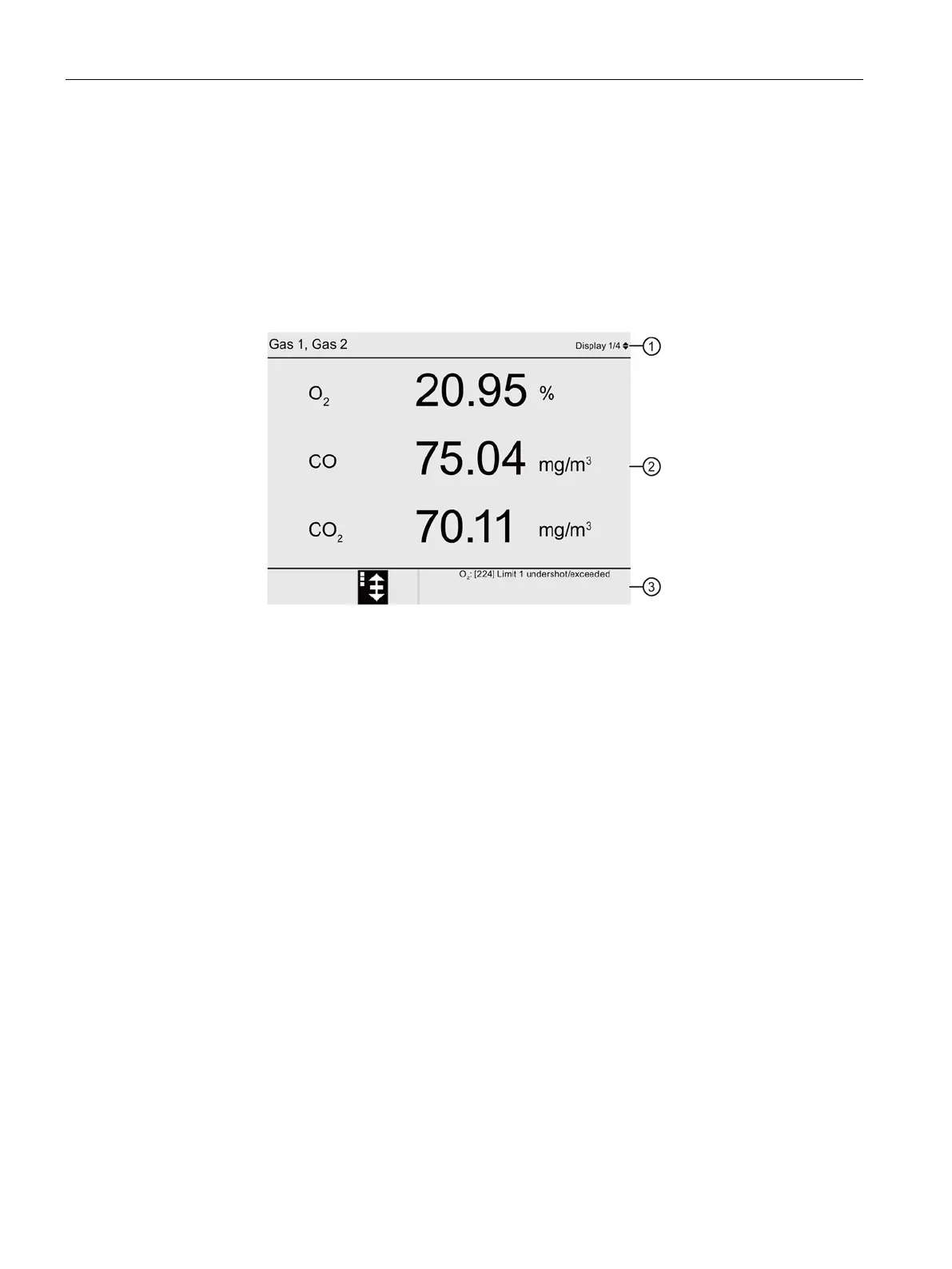

Figure 4-4 Display structure, example: Measured-value display in read mode with three components
See also
Setting the symbol sets (Page 101)
[2.01] Settings >Display/USER FUNC key (Page 98)
