Yealink VC110 Administrator's Guide

Configuring Network
89

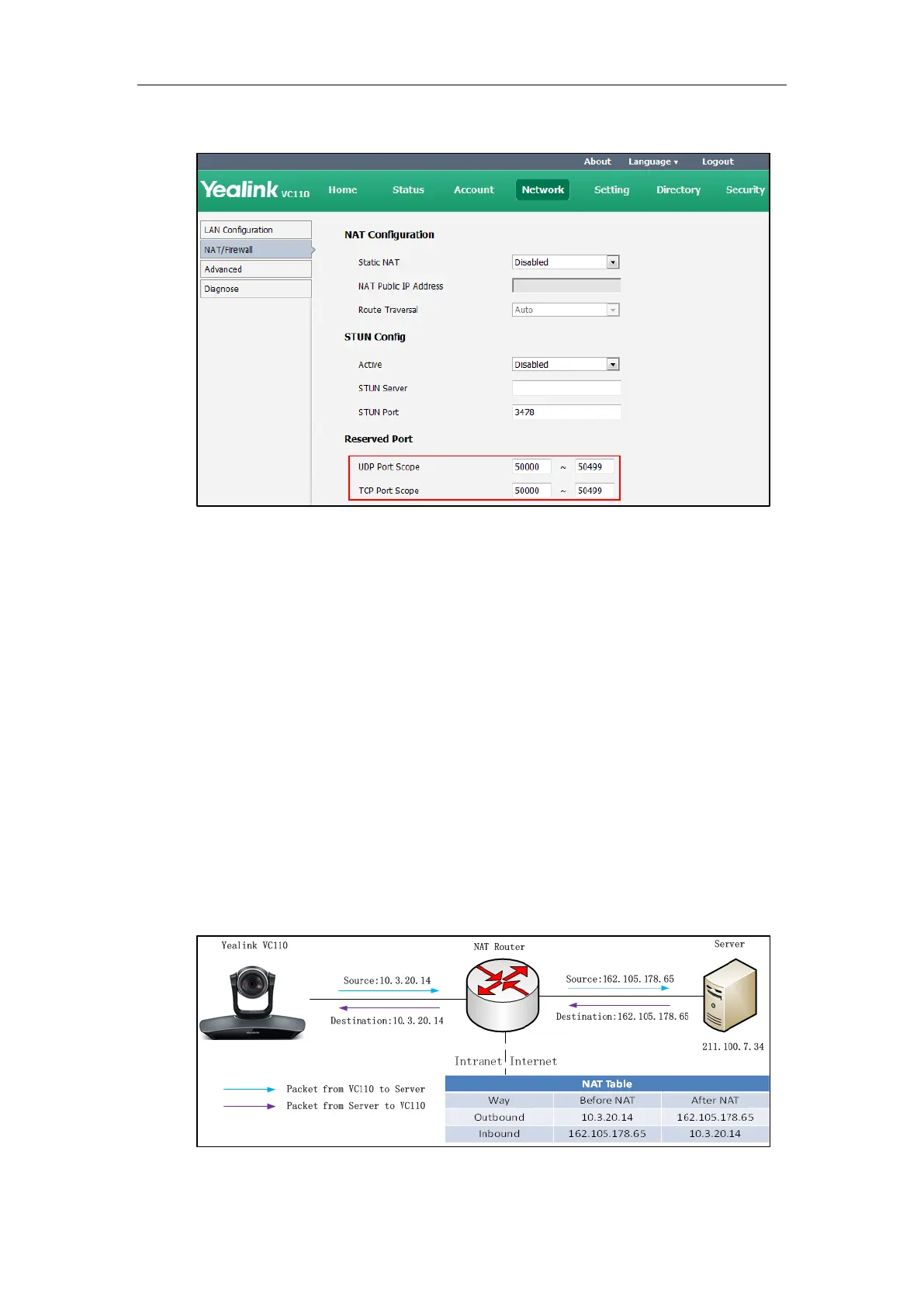

3. In the Reserve Port block, configure the TCP port range in the TCP Port Scope field.
4. Click Confirm to accept the change.
A dialog box pops up to prompt that the settings will be implemented after a reboot.
5. Click Confirm to reboot the endpoint immediately.
To configure reserved ports via the remote control:
1. Select Menu->Advanced (default password: 0000) ->NAT/Firewall.
2. In the Reserved block, configure the range of the UDP ports and TCP ports.
3. Press the Save soft key to accept the change.
The display device prompts “Reboot now?”.
4. Select OK to reboot the endpoint immediately.
Network Address Translation
If you choose to place your video conferencing endpoints in a private LAN, you must use NAT to
communicate with outside endpoints. This may include enabling static NAT on your endpoint.

Yealink VC110 Specifications

General

Digital zoom	4 x
Focus adjustment	Auto
Video codecs	H.264, H.263
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Video formats supported	H.263, H.264
Supported graphics resolutions	352 x 288, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711a, G.722, G.722.1, G.722.1C
Line-in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Pan range	-100 - 100 °
Tilt angle range	-30 - 30 °
Security algorithms	128-bit AES, HTTPS, SRTP, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP (IPv4), DHCP/ stastic IP, HTTP/ HTTPS, SRTP/TLS, IEEE802.1X, LLDP-MED, VLAN
Current	2 A
Power consumption (max)	30 W
Power consumption (typical)	24 W
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	151.5 mm
Width	234.6 mm
Height	161 mm
Package depth	318 mm
Package width	432 mm
Package height	274 mm
Package weight	5900 g
