Yealink VC110 Administrator's Guide

Configuring Network
77

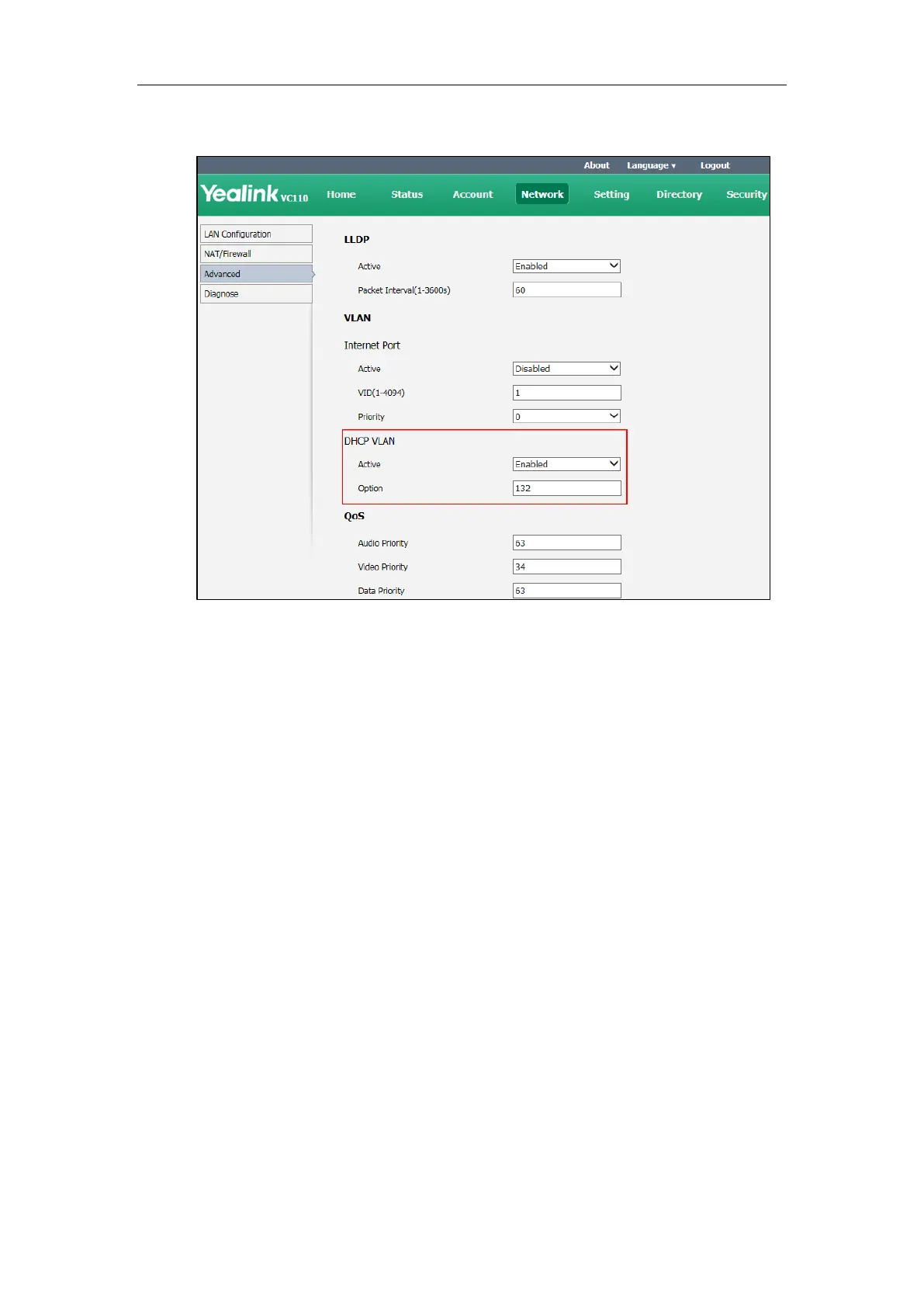

The default option is 132.
4. Click Confirm to accept the change.
A dialog box pops up to prompt that the settings will take effect after a reboot.
5. Click Confirm to reboot the endpoint immediately.
802.1X Authentication
IEEE 802.1X authentication is an IEEE standard for Port-based Network Access Control (PNAC),
part of the IEEE 802.1 group of networking protocols. It offers an authentication mechanism for
devices to connect to a LAN or WLAN. The 802.1X authentication involves three parties: a
supplicant, an authenticator and an authentication server. The supplicant is the endpoint that
wishes to attach to the LAN or WLAN. With 802.1X port-based authentication, the endpoint
provides credentials, such as user name and default password, for the authenticator. The
authenticator then forwards the credentials to the authentication server for verification. If the
authentication server determines the credentials are valid, the endpoint is allowed to access
resources located on the protected side of the network.
The endpoint supports the authentication protocols EAP-MD5, EAP-TLS, PEAP-MSCHAPv2 and
EAP-TTLS/EAP-MSCHAPv2 for 802.1X authentication.
For more information on 802.1X authentication, refer to Yealink 802.1X Authentication .

Yealink VC110 Specifications

General

Digital zoom	4 x
Focus adjustment	Auto
Video codecs	H.264, H.263
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Video formats supported	H.263, H.264
Supported graphics resolutions	352 x 288, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711a, G.722, G.722.1, G.722.1C
Line-in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Pan range	-100 - 100 °
Tilt angle range	-30 - 30 °
Security algorithms	128-bit AES, HTTPS, SRTP, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP (IPv4), DHCP/ stastic IP, HTTP/ HTTPS, SRTP/TLS, IEEE802.1X, LLDP-MED, VLAN
Current	2 A
Power consumption (max)	30 W
Power consumption (typical)	24 W
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	151.5 mm
Width	234.6 mm
Height	161 mm
Package depth	318 mm
Package width	432 mm
Package height	274 mm
Package weight	5900 g
