Yealink VC110 Administrator's Guide

Configuring Network
75

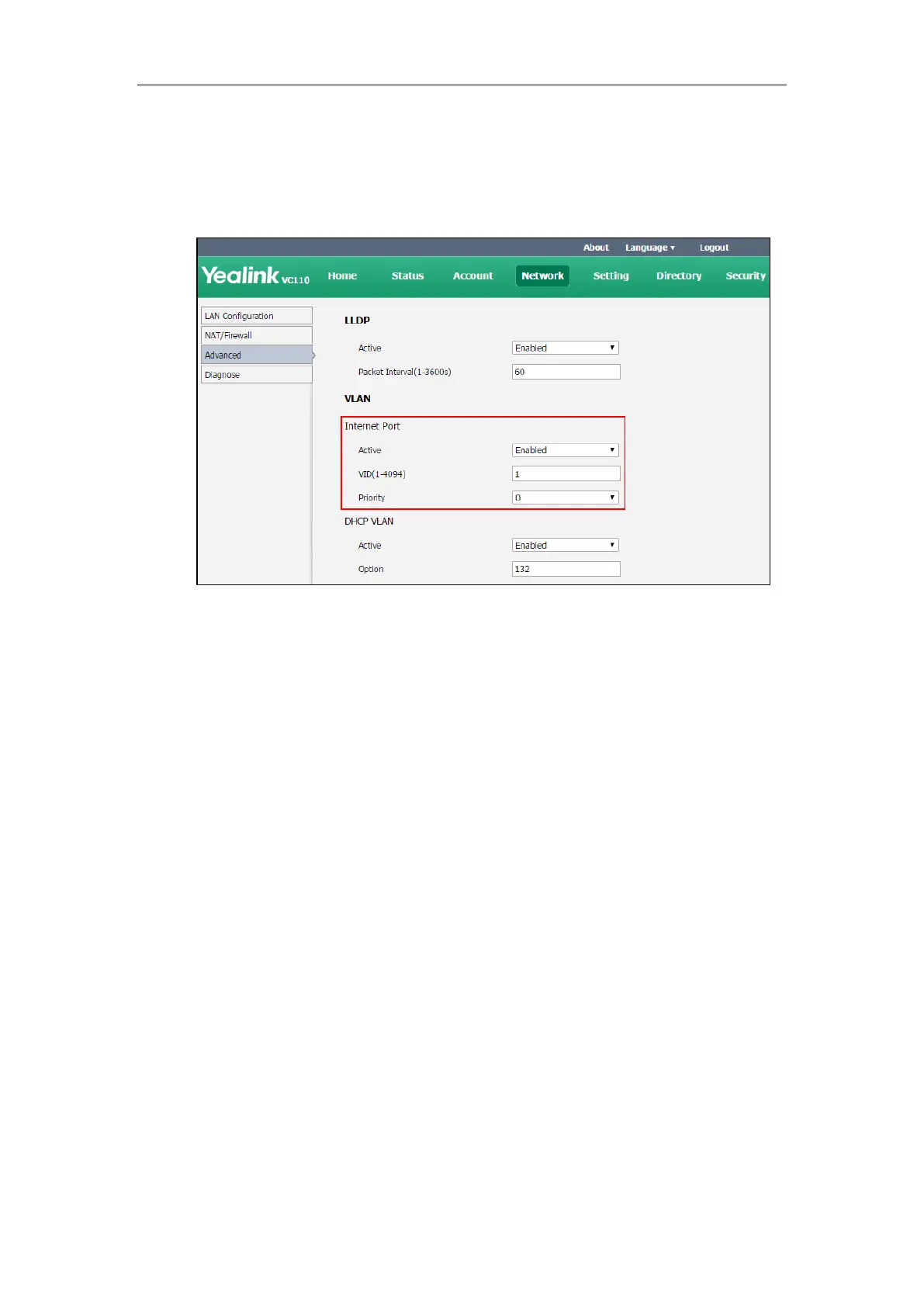

2. In the VLAN block, select the desired value from the pull-down list of Internet Port
Active.
3. Enter the VLAN ID in the VID (1-4094) field.
4. Select the desired value (0-7) from the pull-down list of Priority.
5. Click Confirm to accept the change.
A dialog box pops up to prompt that the settings will take effect after a reboot.
6. Click OK to reboot the phone.
To configure VLAN via the remote control:
1. Select Menu->Advanced (default password: 0000) ->Advanced Network.
2. In the VLAN block, check the Active checkbox.
3. Enter the VLAN ID in the VID(1-4094) field.
4. Enter the priority value (0-7) in the Priority field.
5. Press the Save soft key to accept the change.
The display device prompts “Reboot now?”.
6. Select OK to reboot the endpoint immediately.
DHCP VLAN
The endpoint supports VLAN discovery via DHCP. When the VLAN Discovery method is set to
DHCP, the endpoint will examine the DHCP option for a valid VLAN ID. The predefined option
132 is used to supply the VLAN ID by default. You can customize the DHCP option used to
request the VLAN ID.

Yealink VC110 Specifications

General

Digital zoom	4 x
Focus adjustment	Auto
Video codecs	H.264, H.263
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Video formats supported	H.263, H.264
Supported graphics resolutions	352 x 288, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711a, G.722, G.722.1, G.722.1C
Line-in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Pan range	-100 - 100 °
Tilt angle range	-30 - 30 °
Security algorithms	128-bit AES, HTTPS, SRTP, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP (IPv4), DHCP/ stastic IP, HTTP/ HTTPS, SRTP/TLS, IEEE802.1X, LLDP-MED, VLAN
Current	2 A
Power consumption (max)	30 W
Power consumption (typical)	24 W
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	151.5 mm
Width	234.6 mm
Height	161 mm
Package depth	318 mm
Package width	432 mm
Package height	274 mm
Package weight	5900 g
