Yealink VC110 Administrator's Guide

Administrator’s Guide for Yealink VC110 Video Conferencing Endpoint
272
4. Click Confirm to confirm upgrading.
Note
Importing/Exporting Configuration
We may need you to provide the endpoint configurations for the Yealink field application
engineers to help analyze problems. You can import configurations to your endpoint to
configure your endpoint quickly. The file format of configuration file must be *.bin.

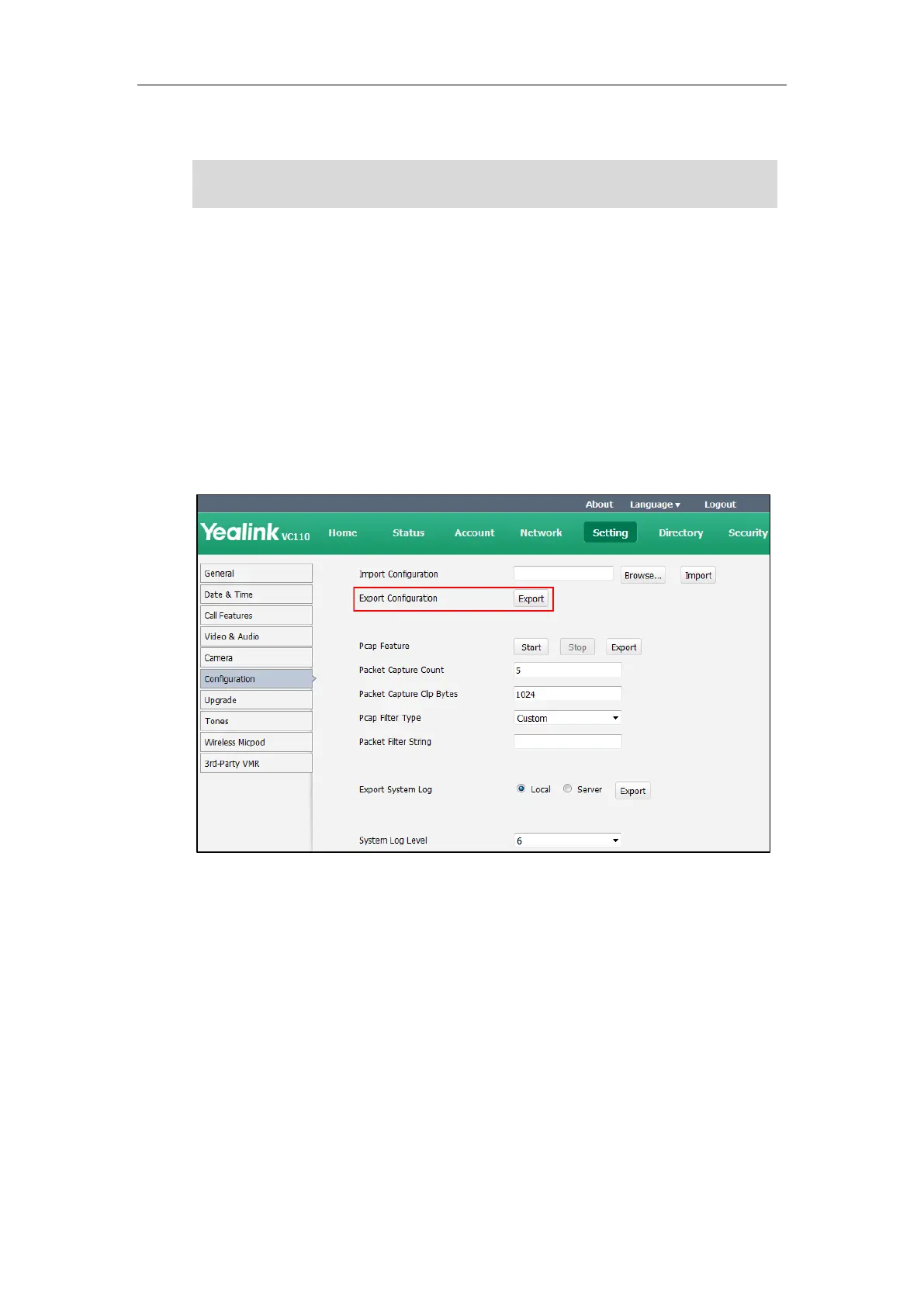

To export the endpoint configurations via web user interface:
1. Click on Setting->Configuration.
2. Click Export.
3. Click Confirm to export the configurations.
To import the endpoint configurations via web user interface:
1. Click on Setting->Configuration.
Caution! Don’t remove the Ethernet cable and power cord during the upgrade process.
Don’t close or refresh the web page when upgrading the firmware via web user interface.

Yealink VC110 Specifications

General

Digital zoom	4 x
Focus adjustment	Auto
Video codecs	H.264, H.263
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Video formats supported	H.263, H.264
Supported graphics resolutions	352 x 288, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711a, G.722, G.722.1, G.722.1C
Line-in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Pan range	-100 - 100 °
Tilt angle range	-30 - 30 °
Security algorithms	128-bit AES, HTTPS, SRTP, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP (IPv4), DHCP/ stastic IP, HTTP/ HTTPS, SRTP/TLS, IEEE802.1X, LLDP-MED, VLAN
Current	2 A
Power consumption (max)	30 W
Power consumption (typical)	24 W
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	151.5 mm
Width	234.6 mm
Height	161 mm
Package depth	318 mm
Package width	432 mm
Package height	274 mm
Package weight	5900 g
