Yealink VC110 Administrator's Guide

Administrator’s Guide for Yealink VC110 Video Conferencing Endpoint
198

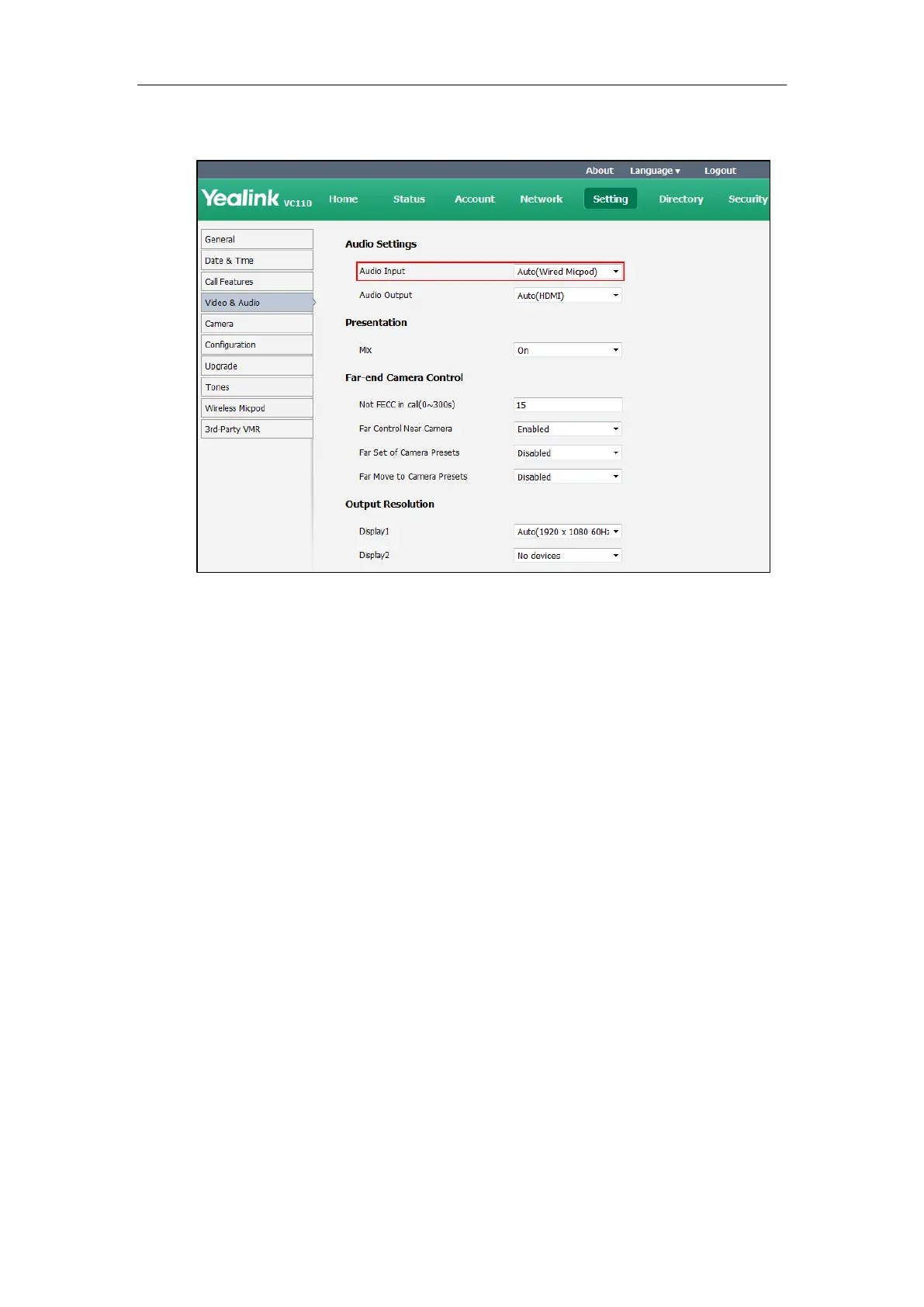

2. Select the desired value from the pull-down list of Audio Input.
3. Click Confirm to accept the change.
To configure the audio input device via the remote control:
1. Select Menu->Video & Audio->Audio Settings.
2. Select the desired value from the pull-down list of Audio Input.
3. Press the Save soft key to accept the change.
Adjusting MTU of Video Packets
Video packets that exceed the maximum transmission unit (MTU) size for any router or segment
along the network path may be fragmented or dropped. This results in poor quality video at the
receiving device. You can set the maximum MTU size of the video packets sent by the endpoint.
The default value is 1500 bytes. Specify the MTU size used in calls based on the network
bandwidth settings. If the video becomes blocky or network errors occur, packets may be too
large; decrease the MTU. If the network is burdened with unnecessary overhead; packets may be
too small, increase the MTU.

Yealink VC110 Specifications

General

Digital zoom	4 x
Focus adjustment	Auto
Video codecs	H.264, H.263
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Video formats supported	H.263, H.264
Supported graphics resolutions	352 x 288, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711a, G.722, G.722.1, G.722.1C
Line-in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Pan range	-100 - 100 °
Tilt angle range	-30 - 30 °
Security algorithms	128-bit AES, HTTPS, SRTP, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP (IPv4), DHCP/ stastic IP, HTTP/ HTTPS, SRTP/TLS, IEEE802.1X, LLDP-MED, VLAN
Current	2 A
Power consumption (max)	30 W
Power consumption (typical)	24 W
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	151.5 mm
Width	234.6 mm
Height	161 mm
Package depth	318 mm
Package width	432 mm
Package height	274 mm
Package weight	5900 g
