Yealink VC110 Administrator's Guide

Getting Started
49
 Endpoint IP address and site name
 Status icon
 Soft key labels
 Video image
6. The video conferencing phone starts up normally. The phone’s LCD screen displays the site
name, status icon, soft keys, time and date.
If the endpoint has successfully passed through these steps, it starts up correctly and is ready for
use.
Setup Wizard

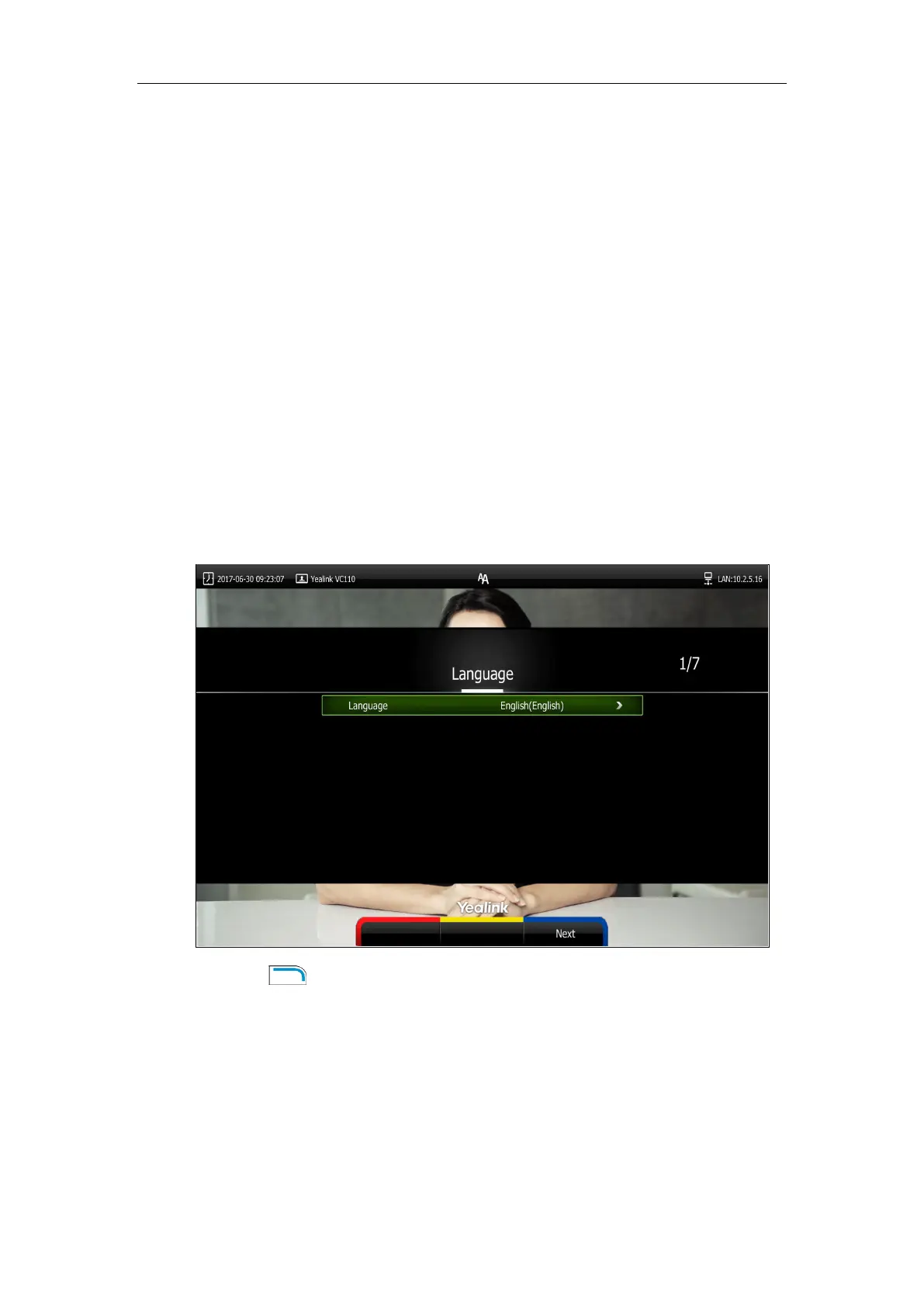

When you first start up or reset the endpoint, the display device will display the setup wizard.
To complete the setup wizard via the remote control:
1. Set the language displayed on the display device.
The default language is English.
2. Press (Next soft key) to continue.
3. Set the date and time (e.g., set the time zone, time format, date format and the type of the
daylight saving time).

Yealink VC110 Specifications

General

Digital zoom	4 x
Focus adjustment	Auto
Video codecs	H.264, H.263
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Video formats supported	H.263, H.264
Supported graphics resolutions	352 x 288, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711a, G.722, G.722.1, G.722.1C
Line-in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Pan range	-100 - 100 °
Tilt angle range	-30 - 30 °
Security algorithms	128-bit AES, HTTPS, SRTP, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP (IPv4), DHCP/ stastic IP, HTTP/ HTTPS, SRTP/TLS, IEEE802.1X, LLDP-MED, VLAN
Current	2 A
Power consumption (max)	30 W
Power consumption (typical)	24 W
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	151.5 mm
Width	234.6 mm
Height	161 mm
Package depth	318 mm
Package width	432 mm
Package height	274 mm
Package weight	5900 g
