Yealink VC110 Administrator's Guide

Administrator’s Guide for Yealink VC110 Video Conferencing Endpoint
70

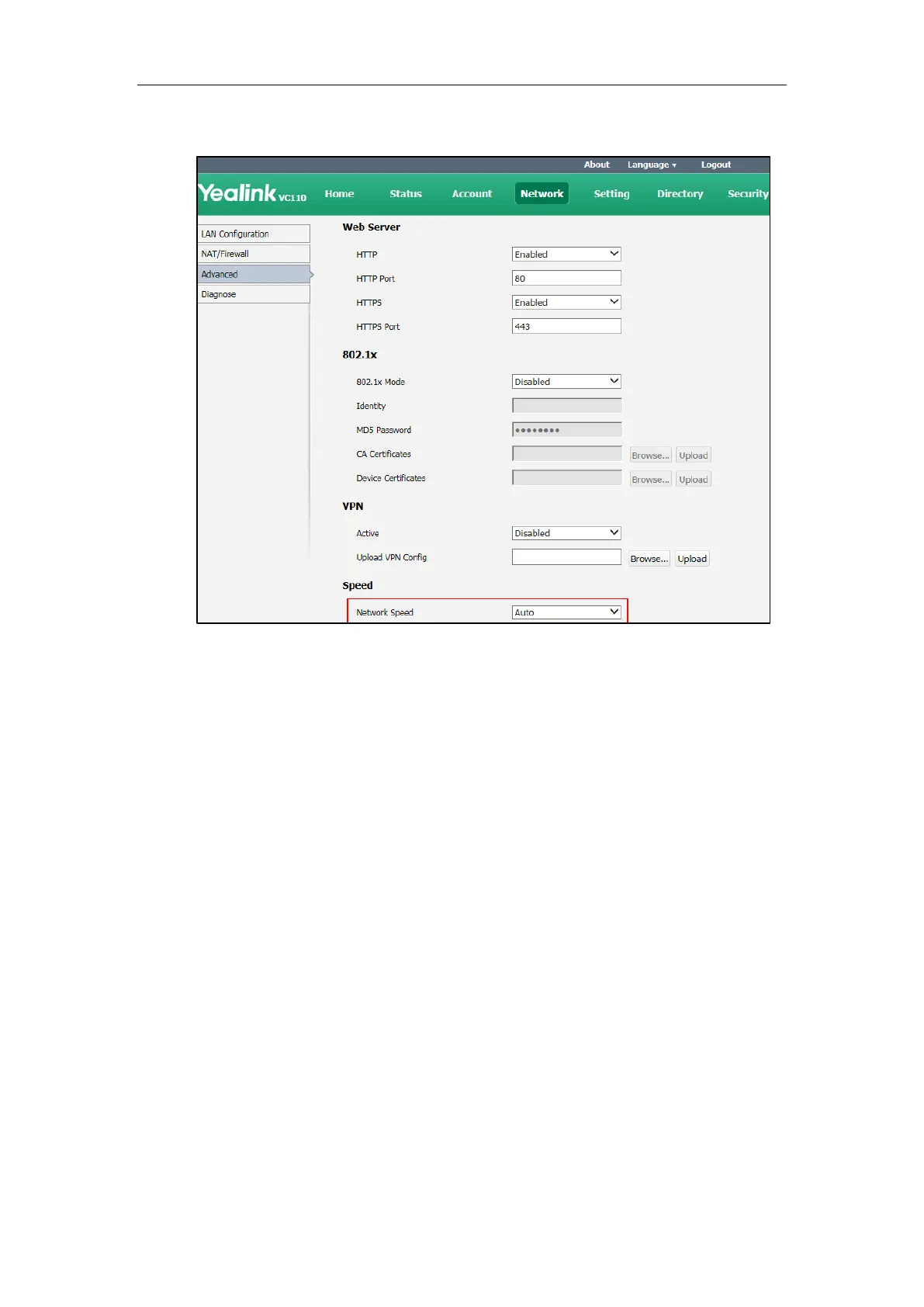

2. Select the desired value from the pull-down list of Network Speed.
3. Click Confirm to accept the change.
A dialog box pops up to prompt that settings will take effect after a reboot.
4. Click Confirm to reboot the endpoint immediately.
VLAN
VLAN (Virtual Local Area Network) is used to divide a physical network logically into several
broadcast domains. VLAN membership can be configured through software instead of
physically relocating devices or connections. Grouping devices with a common set of
requirements regardless of their physical location can greatly simplify network design. VLANs
can address issues such as scalability, security, and network management.
The purpose of VLAN configurations on the endpoint is to insert a tag with VLAN information to
the packets generated by the endpoint. When VLAN is configured on the endpoint properly, the
endpoint will tag all packets with the VLAN ID. The switch receives and forwards the tagged
packets to the corresponding VLAN according to the tag’s VLAN ID, as described in IEEE Std
802.3.
In addition to manual configuration, the endpoint also supports automatic VLAN discovery via
LLDP or DHCP. The assignment takes effect in the following order: assignment via LLDP, manual
configuration, then assignment via DHCP.
For more information on VLAN, refer to VLAN Feature on Yealink IP Phones .

Yealink VC110 Specifications

General

Digital zoom	4 x
Focus adjustment	Auto
Video codecs	H.264, H.263
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Video formats supported	H.263, H.264
Supported graphics resolutions	352 x 288, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711a, G.722, G.722.1, G.722.1C
Line-in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Pan range	-100 - 100 °
Tilt angle range	-30 - 30 °
Security algorithms	128-bit AES, HTTPS, SRTP, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP (IPv4), DHCP/ stastic IP, HTTP/ HTTPS, SRTP/TLS, IEEE802.1X, LLDP-MED, VLAN
Current	2 A
Power consumption (max)	30 W
Power consumption (typical)	24 W
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	151.5 mm
Width	234.6 mm
Height	161 mm
Package depth	318 mm
Package width	432 mm
Package height	274 mm
Package weight	5900 g
