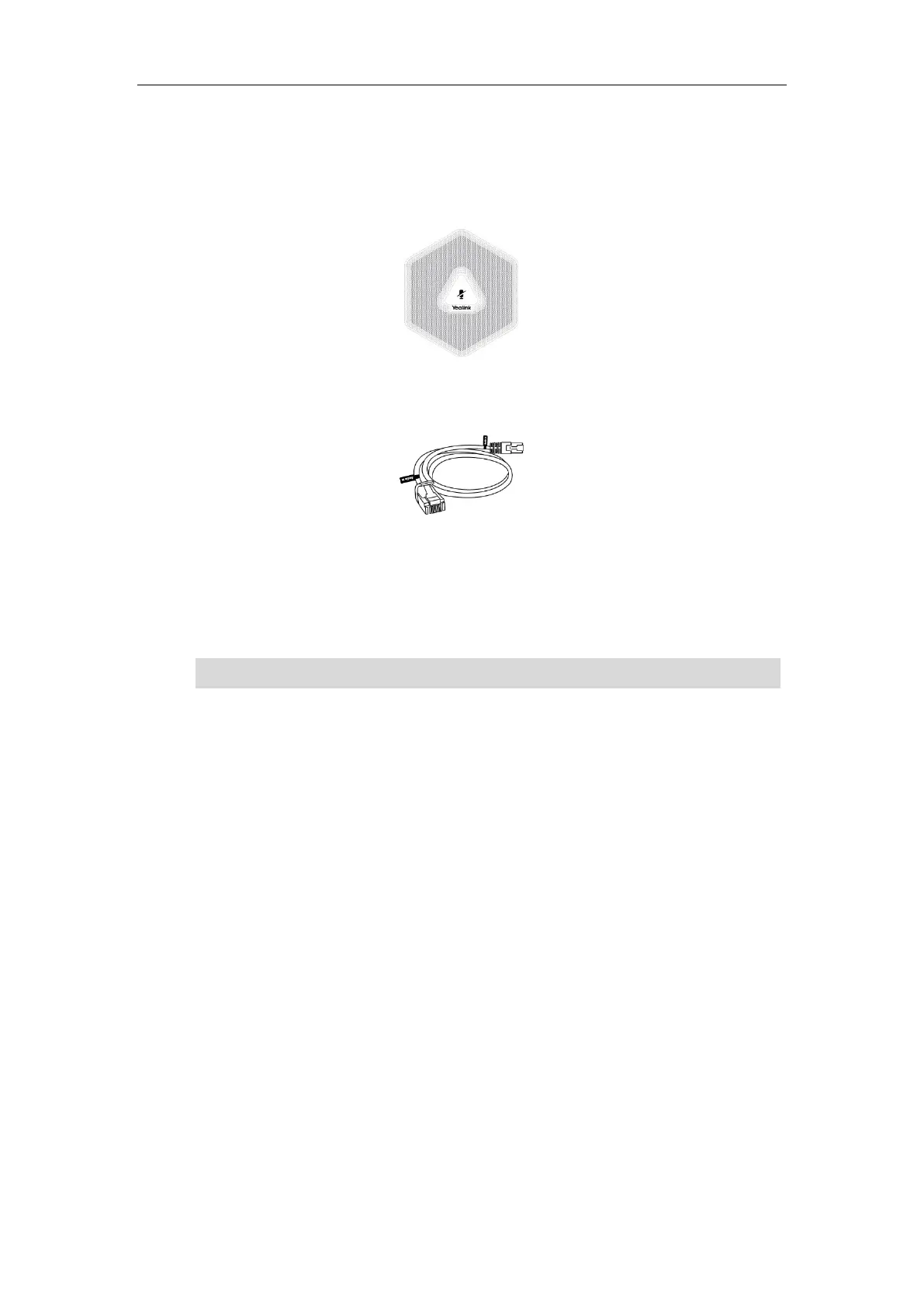

VCM30 Package
 VCM30 Video Conferencing Microphone Array
 Ethernet Cable (7.5m)
Locate the Audio In port of the cable hub, and connect it to the Audio Out port of the VCM30
with the 7.5m Ethernet cable. VCM30 video conferencing microphone array can work as the
audio input device for the VC110 endpoint. For more information, refer to Audio Input Device
on page 195.
Note
Endpoint Component Instructions
Before installing and using the VC110 video conferencing endpoint, you need to be familiar with
the following endpoint components, including:
 VC110 All-in-one Unit
 Cable Hub
 VCM60 Video Conferencing Wireless Microphone
 Video Conferencing Phone
 CPE80 Expansion Microphone
 VCM30 Video Conferencing Microphone Array
 VCR10 Remote Control
Check the list before installation. If you find anything missing, contact your system administrator.

Yealink VC110 Specifications

General

Digital zoom	4 x
Focus adjustment	Auto
Video codecs	H.264, H.263
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Video formats supported	H.263, H.264
Supported graphics resolutions	352 x 288, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711a, G.722, G.722.1, G.722.1C
Line-in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Pan range	-100 - 100 °
Tilt angle range	-30 - 30 °
Security algorithms	128-bit AES, HTTPS, SRTP, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP (IPv4), DHCP/ stastic IP, HTTP/ HTTPS, SRTP/TLS, IEEE802.1X, LLDP-MED, VLAN
Current	2 A
Power consumption (max)	30 W
Power consumption (typical)	24 W
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	151.5 mm
Width	234.6 mm
Height	161 mm
Package depth	318 mm
Package width	432 mm
Package height	274 mm
Package weight	5900 g
