Yealink VC110 Administrator's Guide

VC110 Video Conferencing Endpoint Introduction
39
into the web user interface with user credentials.

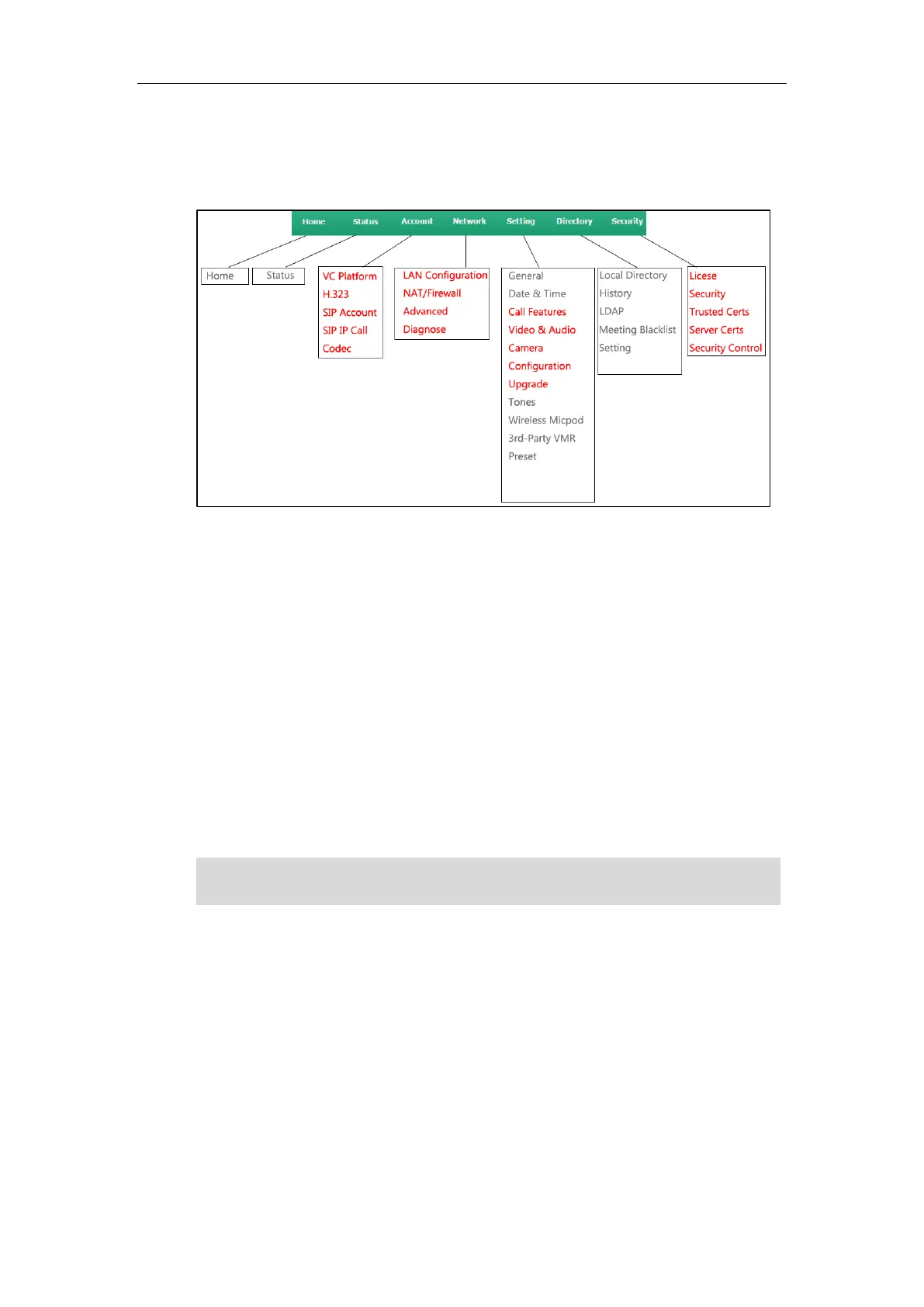

The web structure tree of VC110 is shown as below, (the red highlight is hidden for users with
user credentials):
You can monitor or place calls via web user interface. You can do the following in the Home
page.
 Placing or ending calls
 Viewing remote and nearby sites
 Enabling the mute mode or the DND mode for a call
 Changing the video input source
 Adjusting the position and focus of the camera
 Saving the camera preset
 Capturing the video images
 Control the video conferencing endpoint remotely via the virtual remote control
Note
Remote Control
You can use the remote control and display device to configure and use the VC110 video
conferencing endpoint.
For more information on the function of each key on the remote control, refer to VCR10 Remote
Control on page 31. The Advanced option is only accessible to the user with the administrator’s
permission. The default administrator password is “0000”.
You can also use virtual remote control on the web user interface to configure the VC110 video
conferencing endpoint. For more information, refer to Virtual Remote Control on page 171
Although the web user interface is used to initiate the call, it is the video conferencing endpoint
that is used for the call. It is not the PC running the web user interface.

Yealink VC110 Specifications

General

Digital zoom	4 x
Focus adjustment	Auto
Video codecs	H.264, H.263
Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Video formats supported	H.263, H.264
Supported graphics resolutions	352 x 288, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711a, G.722, G.722.1, G.722.1C
Line-in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Pan range	-100 - 100 °
Tilt angle range	-30 - 30 °
Security algorithms	128-bit AES, HTTPS, SRTP, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP (IPv4), DHCP/ stastic IP, HTTP/ HTTPS, SRTP/TLS, IEEE802.1X, LLDP-MED, VLAN
Current	2 A
Power consumption (max)	30 W
Power consumption (typical)	24 W
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	151.5 mm
Width	234.6 mm
Height	161 mm
Package depth	318 mm
Package width	432 mm
Package height	274 mm
Package weight	5900 g
