11、REAR COVER COMPONENT 99
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000
（
）
2 1274100-057095
Flanging bushing φ6.2×φ8.5×3.5
＋
4
3 1244100-052000
Buffer rubber of flanging bushing
（
）
4
1274200-138000 ZT310-V Rear cover trim cover holder 1
4044201-290052
Rear cover left trim cover (dark grey with red sticker)
red
4044201-292052
Rear cover left trim cover (dark grey with yellow sticker)
yellow
4044201-286052
Rear cover left trim cover (dark grey with goldden sticker)
black
4044201-294052
Rear cover left trim cover (dark grey with white sticker)
white
4044201-288052
Rear cover left trim cover (dark grey with purple sticker)
purple
4044201-291052
Rear cover right trim cover (dark grey with red sticker)
red
4044201-293052
Rear cover right trim cover (dark grey with yellow sticker)
yellow
4044201-287052
Rear cover right trim cover (dark grey with goldden sticker)
black
4044201-295052
Rear cover right trim cover (dark grey with white sticker)
white
4044201-289052
Rear cover right trim cover (dark grey with purple sticker)
purple
7 1250502-010093
（
）
8
1274100-018000 Anti-hot plate sleeve, muffler 2
9
1250104-006097 GB16674M6×12 (chrome plating/HH) 2
6 1
PROCEDURE:
●Rear cover trim cover
Remove the bolt ⑴ on the bottom left side and remove the bushing ⑵ and cushion rubber ⑶.
Remove the bolt ⑴ on the bottom right side and remove the bushing ⑵ and cushion rubber ⑶.
Remove the bolt ⑴ and bolt ⑼ on the trim cover holder and remove the bushing ⑵ and cushion rubber ⑶.
Remove the bolt ⑴ on the rear trim cover and remove the gasket ⑺ bushing ⑶ and cushion rubber ⑻.
Pull the left trim cover ⑸ and the right tail trim cover ⑹ together and remove.
Remove the trim cover bracket ⑷.
CAUTION:
●The material should be protected during discomponent to prevent scratching the lamp.

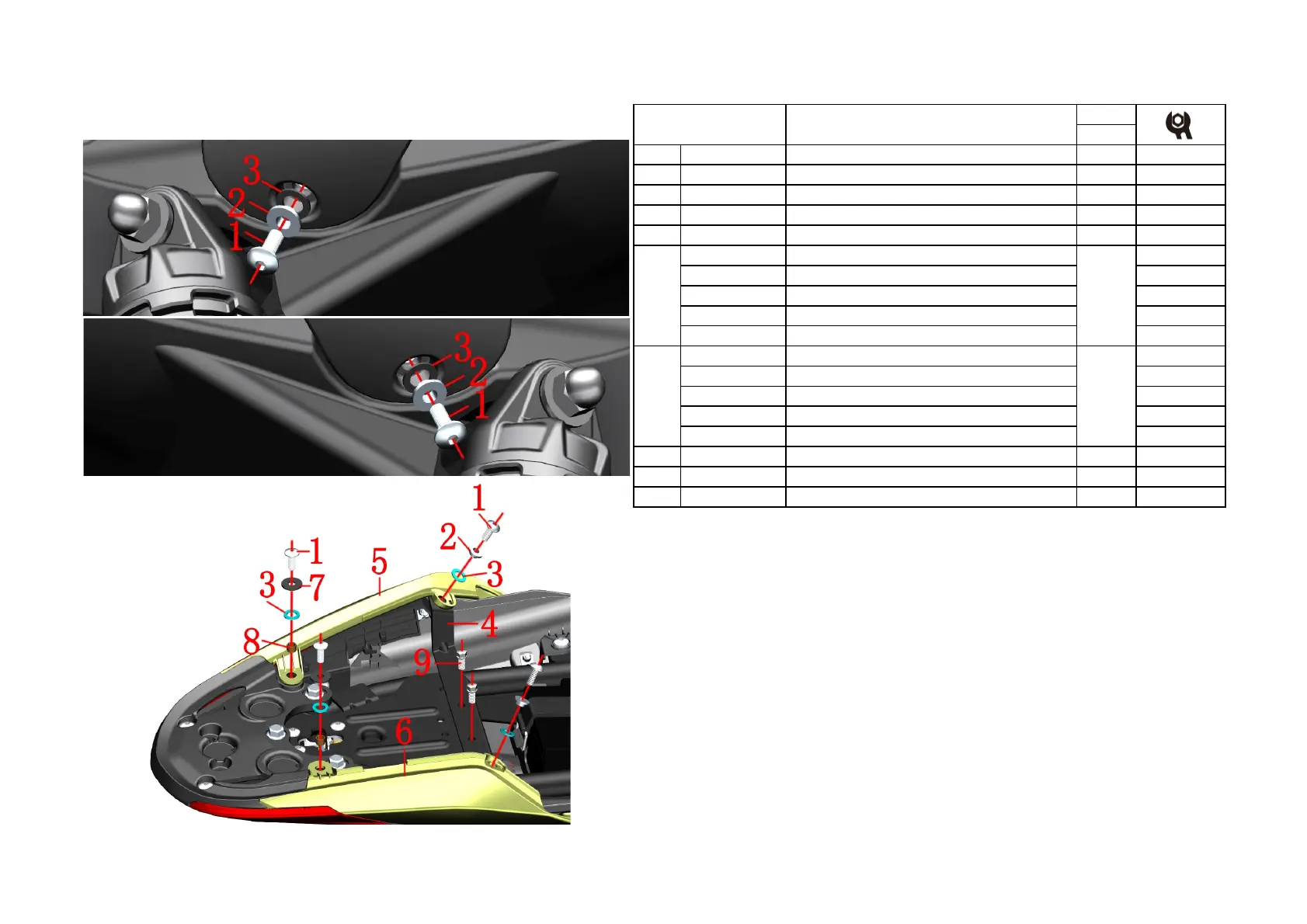

Fig.5 REAR COVER
COMPONENT
Tail skirt taillight component 2
5 1
To Next Page
