5、FOOT PEDAL COMPONENT 48
CHK
A
DJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-061093
M6×22 Hex flang bolt thread level 8.8 (color zinc)
1
2 1250205-043093
（
）
1032142-058000
－
4064200-016051
－
V Rear right pedal cover (dark gray matte)
4 1260100-225000
－
V Rear right pedal torsion spring
1
5 1251700-118000
6 1244100-002000
－
S Side cover round rubber
3
1032142-053000
－
V Rear right pedal bracket
4064200-013051
ZT310－V Rear right pedal bracket (dark gray matte)
8 1274200-148000
－
9 1032142-050000
－
V Rear right pedal slider
1
10 1260100-223000
－
11 1250205-038000
（
）
12 1274200-147000
－
V Rear pedal rubber sleeve fixing piece
1
13 1244200-065000
－
V Rear right pedal rubber seelve
1
1274200-166000
－
4064200-015051
－
V Rear right pedal (dark gray matte)
15 1274200-267021
ZT310-V rear footrest top plate hinge pin 1
PROCEDURE:
●Rear right pedal bracket assembly
Take off 3 pieces side cover round glue ⑹ from the right pedal bracket⑺.
Remove the bolt ⑴and ⑵take off the cover ⑶.
Take off the pedal torsion ⑷ and bushing ⑸.
Take off the rear pedal component
Take off the pedal top film ⑻ and footrest top plate hinge pin⒂.
Take off the pedal slider ⑼ and spring ⑽.
●Rear right pedal
Remove the bolt ⑾,take off the pedal ⒁.
The rubber sleeve fixing piece ⑿ is withdrawn from the pedal rubber sleeve ⒀.
CAUTION:
●When reassembling, apply a proper amount of grease to the yellow surface indicated by arrow b. Note that the
slider top sheet needs to hold the slider.
●From June 16, 2020, when purchasing the ZT310-V rear footrest bracket for the old users, you must also
purchase a 1274200-286000 ZT310-V rear footrest top plate hinge pin (15).
3 1
17
14 1

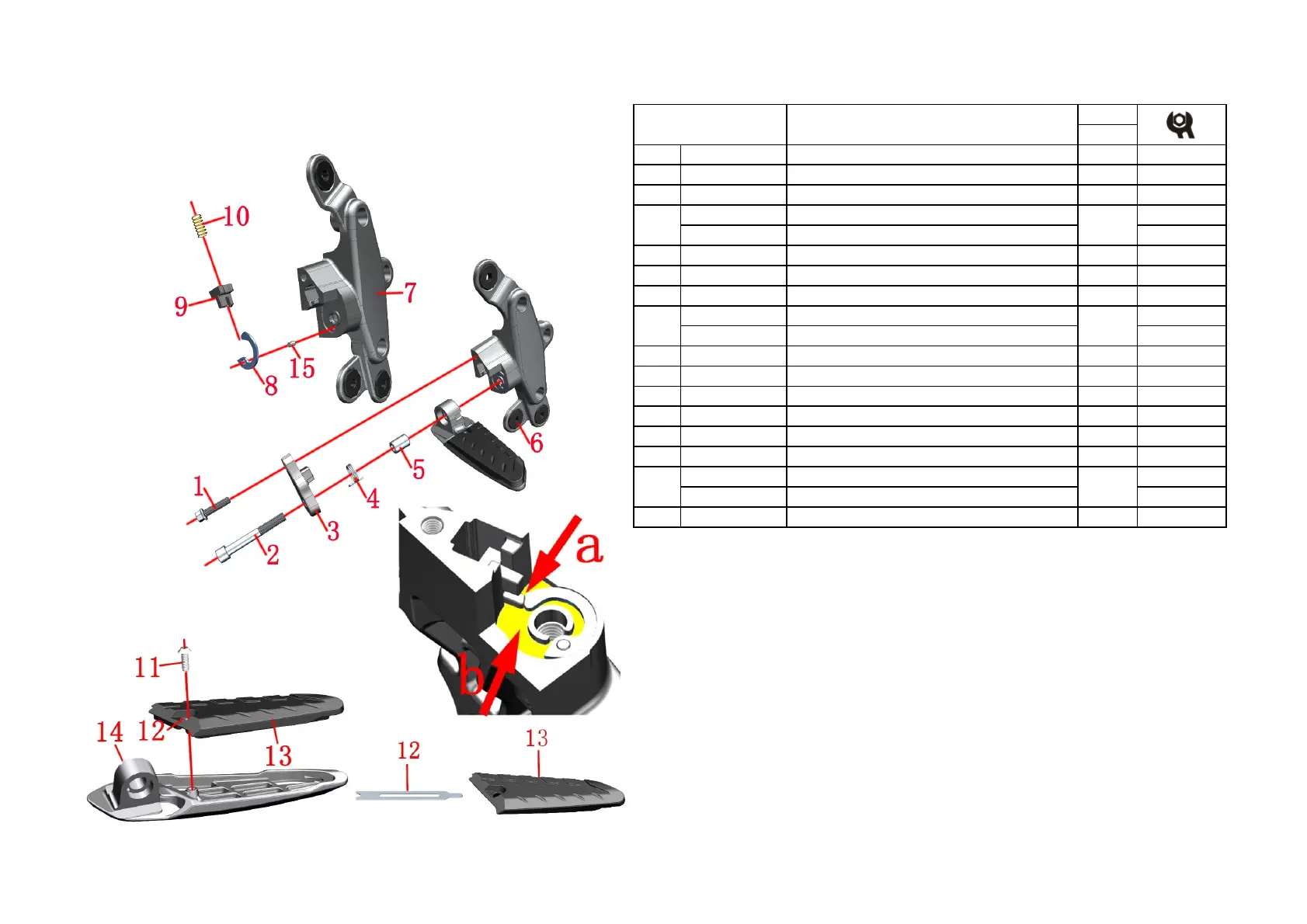

Fig.11 FOOT PEDAL
COMPONENT
Rear right pedal bracket components
To Next Page
