13、MUFFLER COMPONENT 108
CHK
A
DJ
NO. PART NO. PART NAME QTY REMARKS
1 1251100-101000 non-standard bolt M6×12 (304 stainless steel) 3
2 1274100-018000 anti-hot plate sleeve, muffler 3
3 1244100-017000 muffler hot plate rubber buffer 7
4 4044201-243051
ZT310-V Muffler Decorative Cover (Deep Gray Dumb
1
1124200-007000 ZT310-V Muffler (Self-made/China IV) Delphi
1124200-018000
ZT310-V Muffler (Homemade/China IV/Bosch EFI
version)
Bosch
6 1274100-068095 ZT310 Muffler flanging bushing 2
7 1244100-064000 ZT310 Muffler rubber 1
8 1251300-063093
（
）
5 1
PROCEDURE:
●Decorative cover
Remove the bolt ⑴ at the back of the decorative cover and remove the bushing ⑵.
Remove the two bolts (1) of the side cover and remove the bushing ⑵.
Remove the decorative cover from the muffler.
Remove four cushioning glues from the decorative cover.
Turn over to the back and remove the splint nut.
●Muffler
Remove three cushioning glues from the rear of the muffler.
Remove two bushes and one cushioning glue from the middle of the right muffler.
CAUTION:
●Prevent foreign matter from entering the muffler or engine interior.
●If bushing_is not desirable, the decorative cover can be removed before removal.

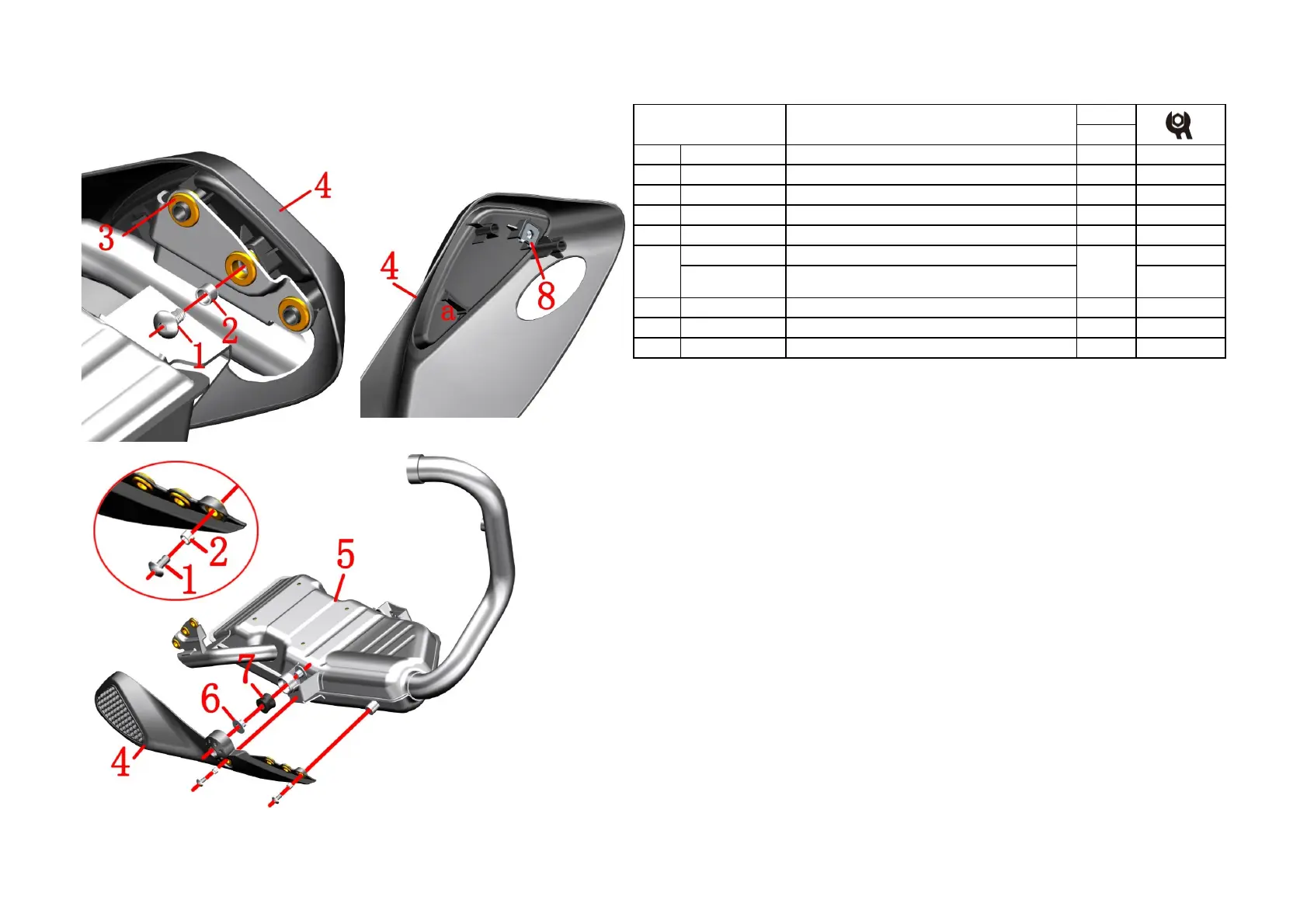

Muffler component4
FIG.4 MUFFLER
COMPONENT
