Zontes ZT310-V User Manual

3、INTAKE SYSTEM COMPONENT 17
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1050954-009000 YH Carbon tank electromagnetic valve 1
2 1250303-010093 GB6177.1M6（color zinc） 2
3 1224100-012000
ZT250
－
S Carbon tank
1
4 1274200-088000
ZT310 water pipe clamp
（
φ10.5
）
5
5 1274200-079000
ZT310 water pipe clamp
（
φ9
）
1

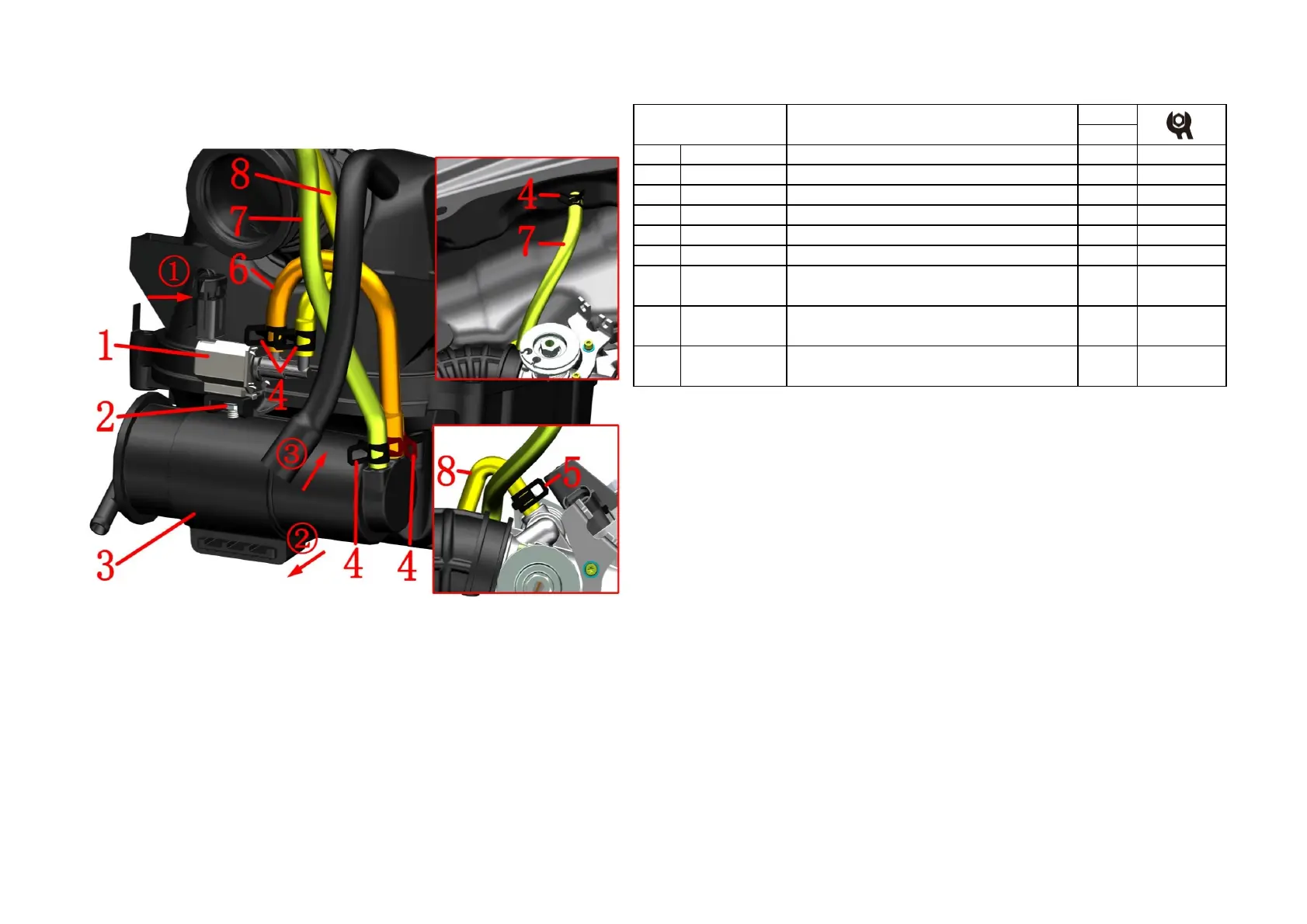

Fig.3 INDUCTION
SYSTEM COMPONENT
6
7 1244200-095000
8 1244200-097000
PROCEDURE:
●Carbon tank
Clamp the hoop ⑷ at the outlet of the oil and gas separator at the bottom of the tank with pliers, unplug the
adsorption tube ⑺ , and remove the hoop (shown in the upper right corner). Also remove the outlet pipe ⑻ and
hoop ⑸ above the throttle valve body assembly (shown in the lower right corner). And the hoop ⑷ on the left
side of the carbon tank ⑶ , remove the adsorption tube ⑺ , and pull out the intake pipe ⑹ near one end of the
carbon tank. Pull the carbon tank down in the direction indicated by arrow②.
●Carbon tank electromangnetic valve
First remove the connector ① of the carbon tank solenoid valve⑴, then remove the nut ⑵ with the sleeve;
remove the solenoid valve assembly. Loosen the hoop ⑷ and pull out the intake pipe ⑹ and the outlet pipe ⑻ .
CAUTION:
●It needs to remove the seat cushion, side cover, oil tank cover, bladdar and so on.
●Regularly check whether the filter element of the carbon tank and air filter is not ventilated, otherwise it may
cause the oil supply to affect the driving experience.
●It should be no crimp, entanglement and other phenomena.
1244200-096000
Induction system component
ZT310-V carbon canister solenoid valve intake
manifold (Φ5×Φ11/Φ7×Φ13)
1
ZT310-V carbon Tank adsorption Tube (Φ 5 × Φ 11) 1
ZT310-V carbon Tank Solenoid Valve exhaust
Manifold (Φ 4 × Φ 10 / Φ 5 × Φ 11)
1
