4、REAR WHELL COMPONENT 32
PROCEDURE:

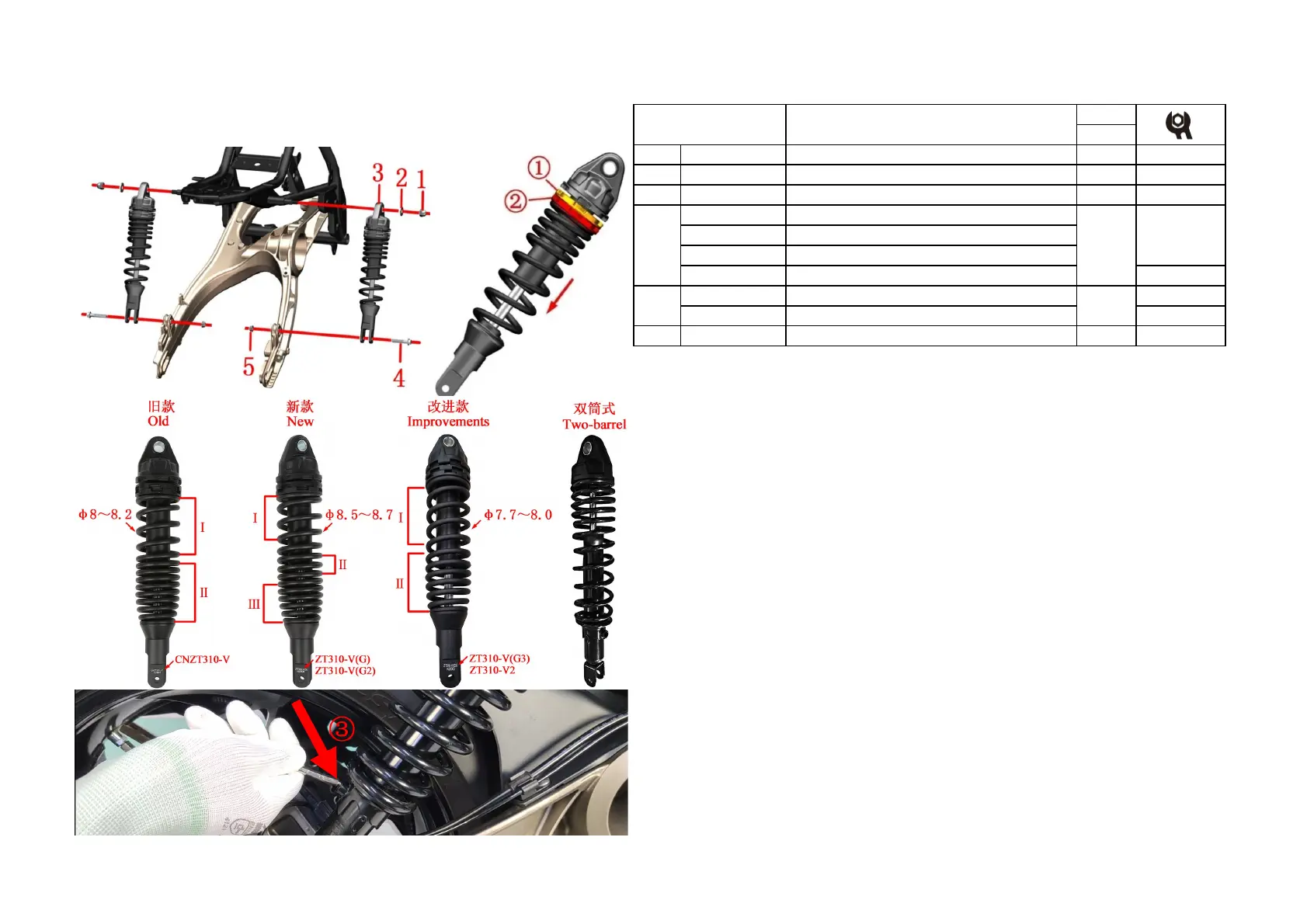

●Rear shock absorber
After the motorcycle is supported, one person needs to hold the head of the bolt ⑷ with a sleeve, and one
person uses the sleeve to remove the nut ⑸. The new shock absorbe without nut ⑸, only need to
remove the bolt ⑷. Rotate the bottom of the rear shock absorber ⑶ backward and rotate the shock
absorption on the rear fork to install the hole convex platform.
Remove the nut ⑴, remove the gasket ⑵, pull the shock absorber ⑶ out and remove it.
●Adjust the rear absorber
OLD:Use hook spanner to loosen adjustive nut①. Rotate adjustive nut②. If the nut is rotated towards the
arrow direction, the spring becomes harder. Conversly, the absorber is softer. Tighten the adjustive nut①
until the absorber is under suitable status. Please adjust in a reasonable range. Riding experience would be
influenced either the absorber is too soft or too hard.
NEW:Use a 4# allen wrench to insert the long handle end into the position indicated by arrow ③ in the
figure, and directly rotate the shock-absorbing limit slot to adjust the spring preload, a total of five gears.
CAUTION:
●Disassemble seat, L,side cover, R, side cover, bolts on front parts of rear cover and rear inner mudguard.
●Use suitable tool to support the motorcycle. Avoid accidents caused by falling motorcycle. Single person
manipulation is prohibited.
●All the standard parts need to reach standard torque while reassembling.
●Due to the adjustment of the spring stiffness; the old spring is φ8～8.2, the new one is φ8.5～8.7, please click
the picture to enlarge to see the state. Before August 22, 2019, it was the old one. On August 22, the production
was confirmed by the self-control picture; after August 22, it was the new one. If the old shock absorber needs to
be replaced, it must be replaced by two rear shock absorbers; if it is new, it can be purchased separately.
●Since April 28, 2020, the rear shock absorber of the ZT310-V model has been changed to the ZT310-V2 rear
shock absorber.
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1250306-006097 GB923M10 × 1.25x18 (chromium plating) 2
2 1251500-007091 Non-standard flat padφ10.5×φ24×2 (white zinc) 2
1114200-008006 ZT310-V Rear shock absorber
1114200-018000
ZT310-V Rear shock absorber (improved)
1114200-021000 ZT310-V2 Rear shock absorber
1114200-034000 ZT310-V rear shock absorber (double barrel) NEW
1250105-150093 GB5789M8×45 (environmental color) OLD
1250105-143093 GB5789M8×35 (environmental color) NEW
5 1250305-002091 GB6187.1M8 (white zinc) 2 OLD
Rear shock absorber
Fig.6 Rear wheel, swinging
arm assembly
2
23
Stop selling
4
