5、FOOT PEDAL COMPONENT 43
CHK
A
DJ
NO. PART NO. PART NAME QTY CAUTION
1 1250205-038000
（
）
2 1251700-117000 Bushing Φ7.4×Φ5.4×5.7 4
1032142-051000
－
V Front pedal pressure block
1020542-004000
－
1274200-295000
－
V Front right pedal (dark gray)
5 1244200-063000
－
V Front pedal plastic sleeve
1
3
PROCEDURE:
●Front right pedal after sale parts
Remove 4 pieces bolts ⑴, and take off 4 bushings ⑵.
Take off the pedal pressure block ⑶.
Take off the pedal rubber sleeve ⑸ fron the pedal ⑷.
CAUTION:
●It is recommended to apply a proper amount of thread fastening glue to the head of the bolt ⑴.
4064200-003051
ZT310－V Front pedal pressure block (dark gray
matte)
1
14
Front right pedal after sale parts

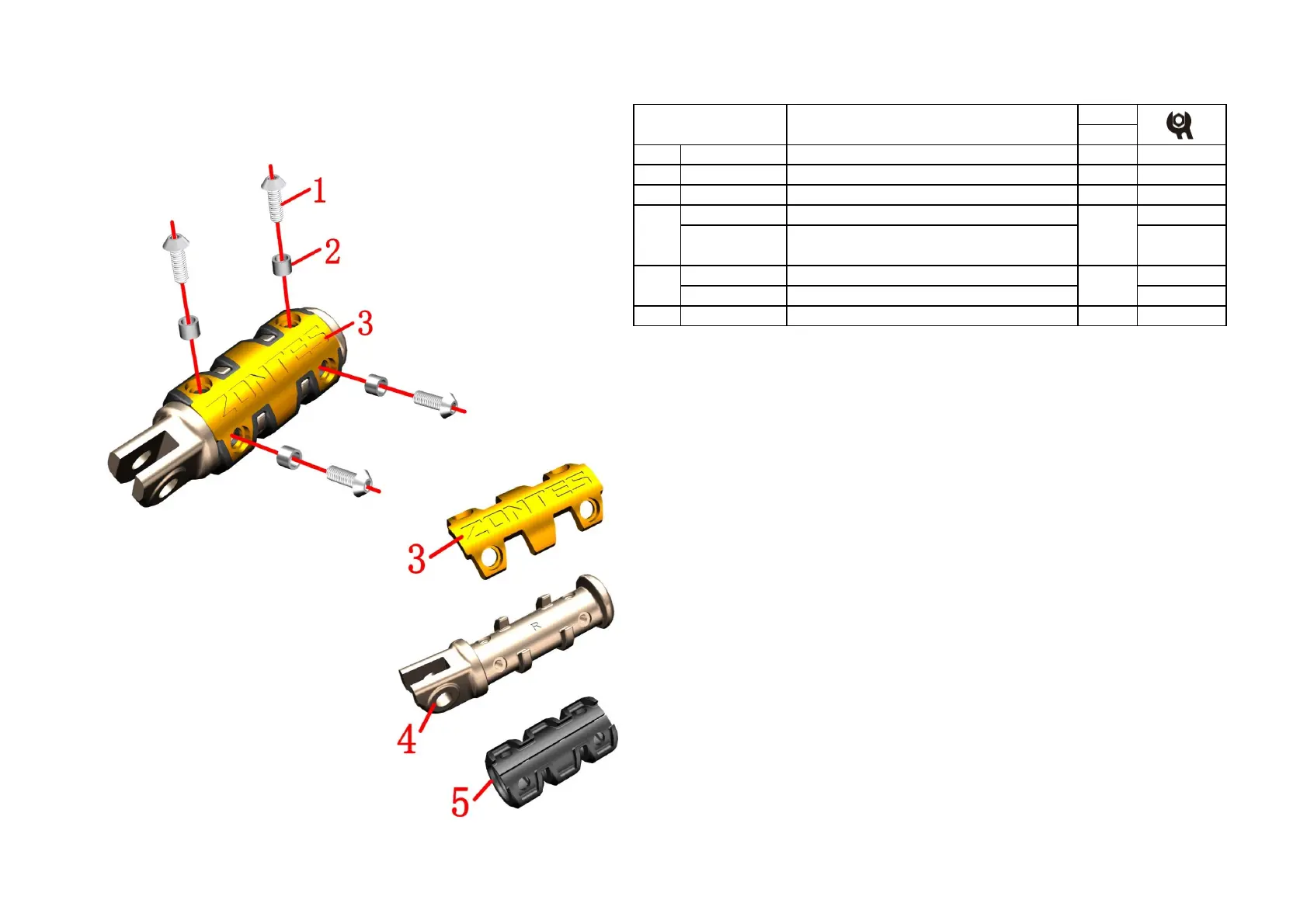

Fig.6 FOOT PEDAL
COMPONENT
To Next Page
