14、LOWER SHROUD COMPONENT 109
CHK
ADJ
NO. PART NO. PART NAME QTY REMARKS
1 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 4
2 1274100-007000
ZT250-S flanging sleeve(φ6.4×φ9×6
＋
3 1244100-004000 ZT250－S Flanging bushing buffer 1
4 1251112-005093 M6×75 Hexagonal flange bolt (color zinc) 1 12±1.5N.m
5 1274200-130000
－
V left support of lower wind deflector
1
6 1274200-131000
－
V right support of lower wind deflector
1
7 1251112-003093 M6×45 Hex flange surface 9.8 bolts (color zinc) 1 12±1.5N.m

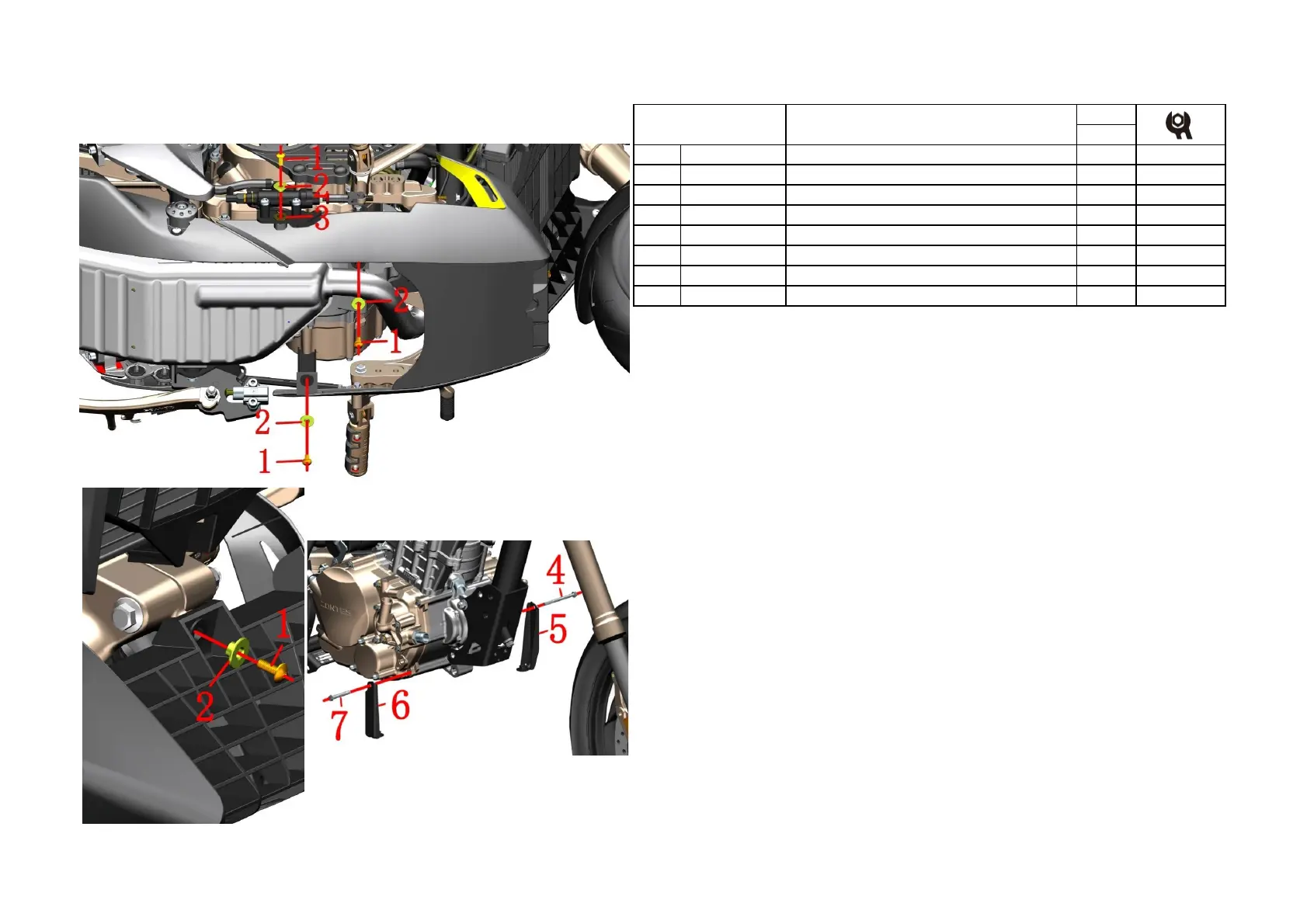

FIG.1 LOWER SHROUD
COMPONENT
PROCEDURE:
●Lower shroud assembly
Raise the platform of the motorcycle and remove the plate brake pump after the bolt ⑴, take off the lining.
Remove the bottom left and right side of the bolt ⑴, remove the liner ⑵.
After supporting the cowl assembly, remove the front center bolt ⑴ and remove the liner ⑵.
Remove the guide housing assembly and place it in place.Take buffer glue as needed.
●Lower shroud bracket
Remove the bolt⑷ with the sleeve and remove the left shroud bracket⑸.
Remove the bolt⑺ with the sleeve and remove the right shroud bracket⑹.
CAUTION:
●The motorcycle support should be fixed during disassembly to prevent accidents caused by incline.
●The shroud should be supported during disassembly to prevent fracture due to uneven force.
●The bolts⑷ and ⑺ must meet the standard torque and must be coated with a thread tightening glue.
