8、FUEL TANK COVER COMPONET 88
CHK
ADJ
NO. PART NO.
1 1251300-063093
Splint m6×11×15 ( color zinc)
4
2 1224100-010000
－
3 1251100-101000
－
Standard bolt m6×12 (304 stainless steel) 2
4 1240300-021000
－
6 shroud glass strip (1.5m) 0.17
4034200-010015
－
V bright red fuel tank Bright red
4034200-010031
－
V bright yellow fuel tank Bright yellow
4034200-010021
－
V bright black fuel tank Bright black
4034200-010002
－
V bright white fuel tank Bright white
4034200-010061
－
V bright purple fuel tank Bright purple
5 1

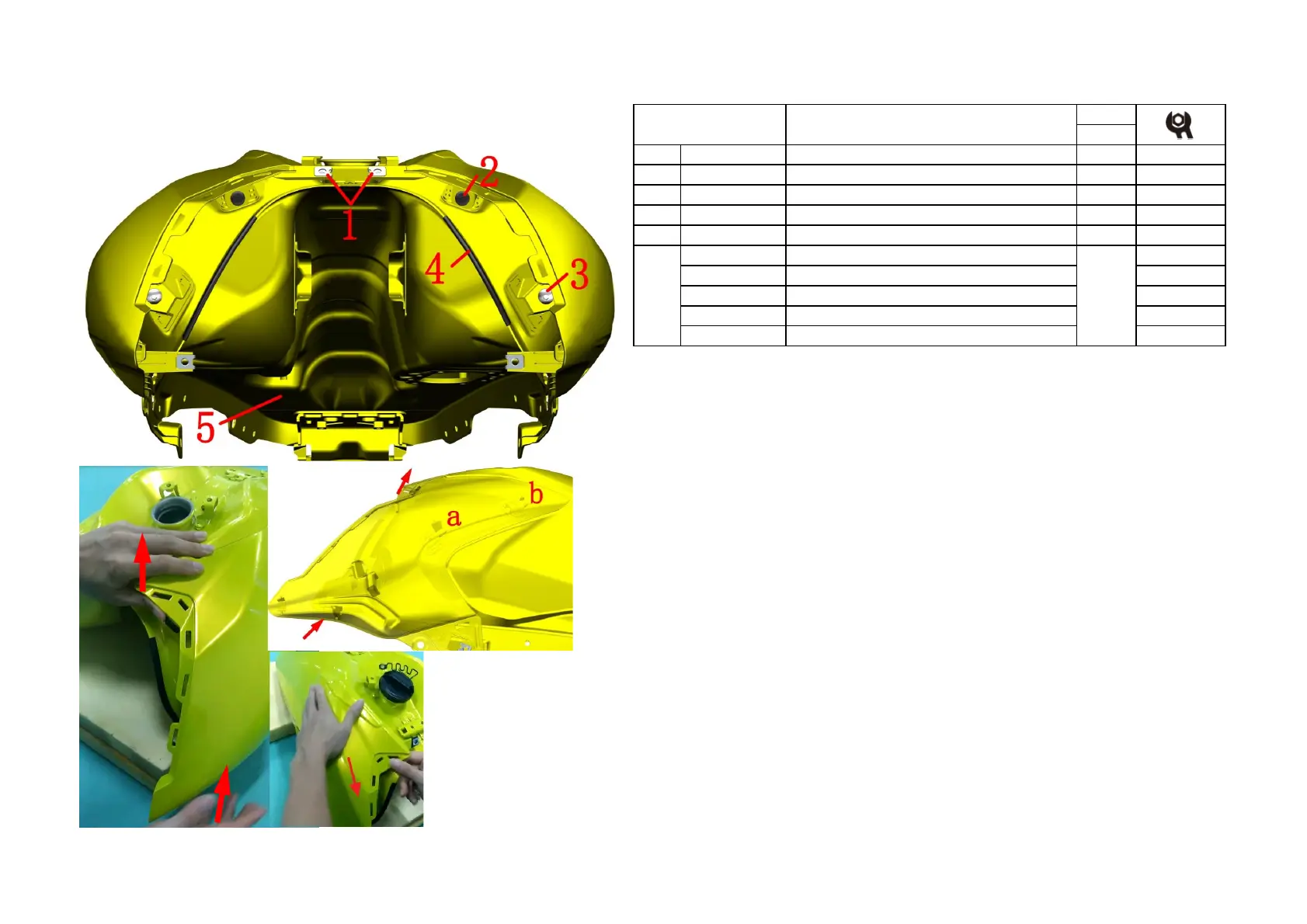

Fig. 7 FUEL TANK
COVER COMPONET
Fuel tank trim cover assembly 1
PROCEDURE:
● Fuel tank decoration cover assembly
Remove the 4 plywood nuts ⑴
Remove the two expansion pins ⑵
Remove the two bolts ⑶.
As shown in the lower left corner, first push the upper part of the decorative cover upwards with the left thumb,
and tap the right hand diagonally upwards to remove the left decorative cover assembly from the fuel tank.
Remove the right decoration cover assembly in the same way.
Remove the strips on the left and right sides ⑷.
CAUTION:
● The parts should be protected during the disassembly process to prevent damage to the paint surface.
● Pay attention to the direction of force, and then remove the trim cover from the tank liner and then remove it.
● When installing, first fasten the buckles at both a and b, and then tap it diagonally downward.
To Next Page
