10、GUARD BAR COMPONENT 93
CHK
AD
J
NO. PART NO. PART NAME QTY CAUTION
1144200-038000
ZT310
－
V Left bumper assembly
4114200-001051
ZT310
－
V Left bumper assembly (dark gray matte)
2 1244100-089000 ZT250-R guard bar anti-drop glue (outside association) 2
3 1251100-083094 Non-standard bolt M10×1.5×50 (black zinc) 2
4 1244100-061000 ZT250 anti-water rubber of frame 2
5 1251100-101000 non-standard bolt M6×12 (304 stainless steel) 10
6 1274200-037000
ZT310
－
R support of disc brake lock
1
7 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color zinc) 1
8 1274200-183000
ZT310
－
V Outlet pipe bracket
1
9 1251112-001093 M6×16 Hexagon flange bolts (color zinc) 1
1184200-033000
ZT310
－
R Rectifier
（
Lithium
） 【
1
】
1184200-133000
ZT310 Rectifier
（
230W
）
1184200-174000 ZT310 rectifier (five wire)
1144200-039000
ZT310
－
V Right bumper assembly
4114200-002051
ZT310
－
V Right bumper assembly (dark gray matte)
PROCEDURE:
●Left bumper assembly
1.Remove the water stopper ⑷, the bolt ⑶, and the protection rubber ⑵.
2.Remove the bolt ⑸ and the disc brake lock bracket ⑹.
3.Remove the bolt ⑺ and the outlet pipe bracket ⑻.
4.Hold the rectifier ⑽ and remove the bolt ⑼ then remove it.
5.Remove the 4 bolts ⑸ and remove the engine decorative cover assembly.
●Right bumper assembly
Follow the steps above to remove the right bumper ⑾.
CAUTION:
●Protect the engine decorative cover paint to prevent scratches.
●The disc brake lock bracket is only suitable for TOP DOG disc brake lock RE008 and TOP DOG disc brake
lock RE0081 two models, other models are not adapted.
●When reassembling, pay attention to the radiator outlet pipe below the outlet pipe bracket.
● 【1】The back of rectifier printed "ZT310(230W)" for the large magnetic motor version.
110
1
111

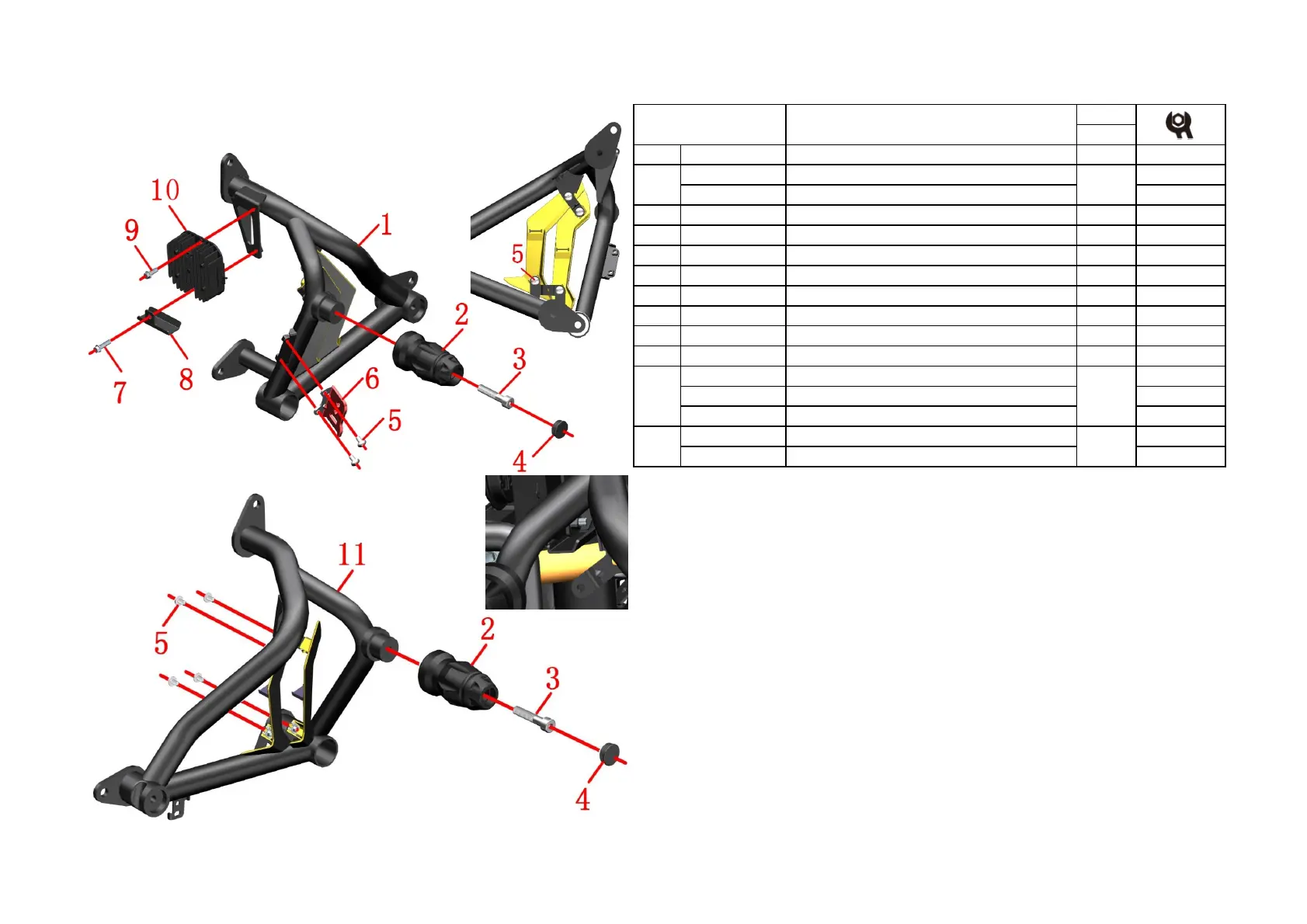

Fig.3 GUARD BAR
COMPONENT
Guard bar assembly 3
1
