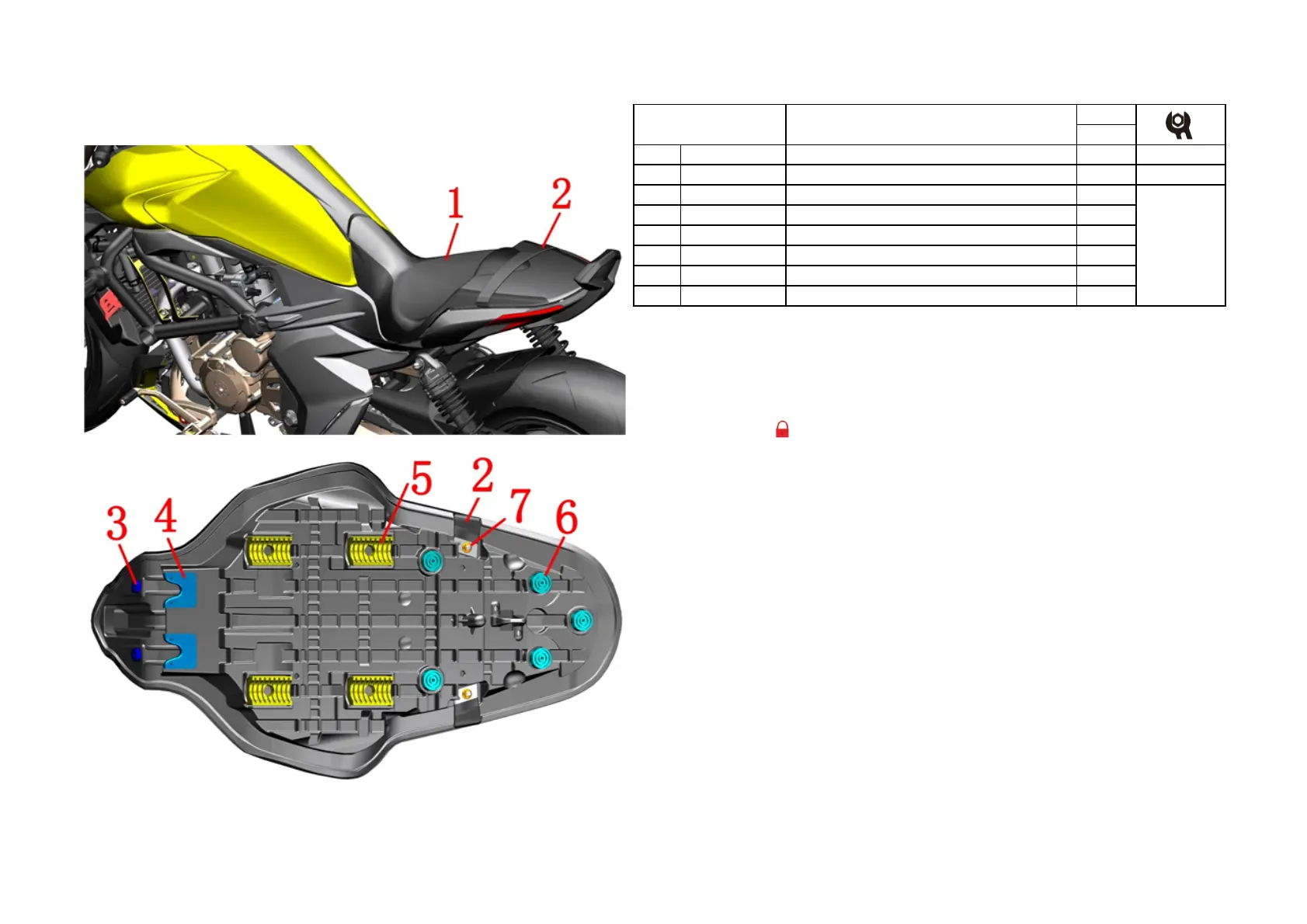

12、CUSHION COMPONENT 104
CHK
ADJ
N
O. PART NO. PART NAME QTY CAUTION
1 1200100-464000 ZT310-V seat cushion (2021 models) 1
2 1010502-005000 ZT310-R Seat belt 1
3
1244200-091000 ZT310-V Seat front round gum cushion 2
4
1244100-024000 ZT250-S Cushion front rubber 2
5
1244100-022000 ZT250-S Cushion rubber 4
6
1244100-025000 ZT250-S Cushion round rubber 5
7 1250303-010093 GB6177.1M6 (environmental color) 2
Cushion component
FIG.1 CUSHION
COMPONENT
PROCEDURE:
●Remove seat cushion
Press the unlock button " " shortly.After the power-on self test is completed, press the "SEAT" button briefly
to open the electronic cushion lock.
Grasp the seat cushion ⑴ and pull it diagonally upwards. At the same time, remove the cushion by moving the
rear part of the cushion from side to side.
●Assembly cushion
When assembling the cushion, check whether all the cushion rubbers are complete. Insert the front part of the
cushion first. After the assembly is in place, shoot the rear part of the cushion firmly. When you hear the "click"
sound, it indicates that the cushion lock has been assembled.
●Cushion rubber and belt, purchased separately
If the cushion rubber aging or excessive wear of the belt can be purchased on the Zontes official website.
The corresponding installation position is shown in the lower left figure.
CAUTION:
●The motorcycle should be fixed before operation.
●【1】Cushion⑴ contains all cushion rubber and the seat belt,nuts.
●Cushion can cause accidents if it is not installed properly.
【1】
