13、MUFFLER COMPONENT 105
CHK
ADJ
NO. PART NO. PART NAME QTY REMARKS
1 1224100-037000 0 grade flame retardant cable tie (black 3.6×295) 1
2 1251112-002093 M6×30 Hexagon flange bolts (color zinc) 1
3 1251112-003093 M6×45 Hex flange surface 9.8 bolt (color zinc) 1

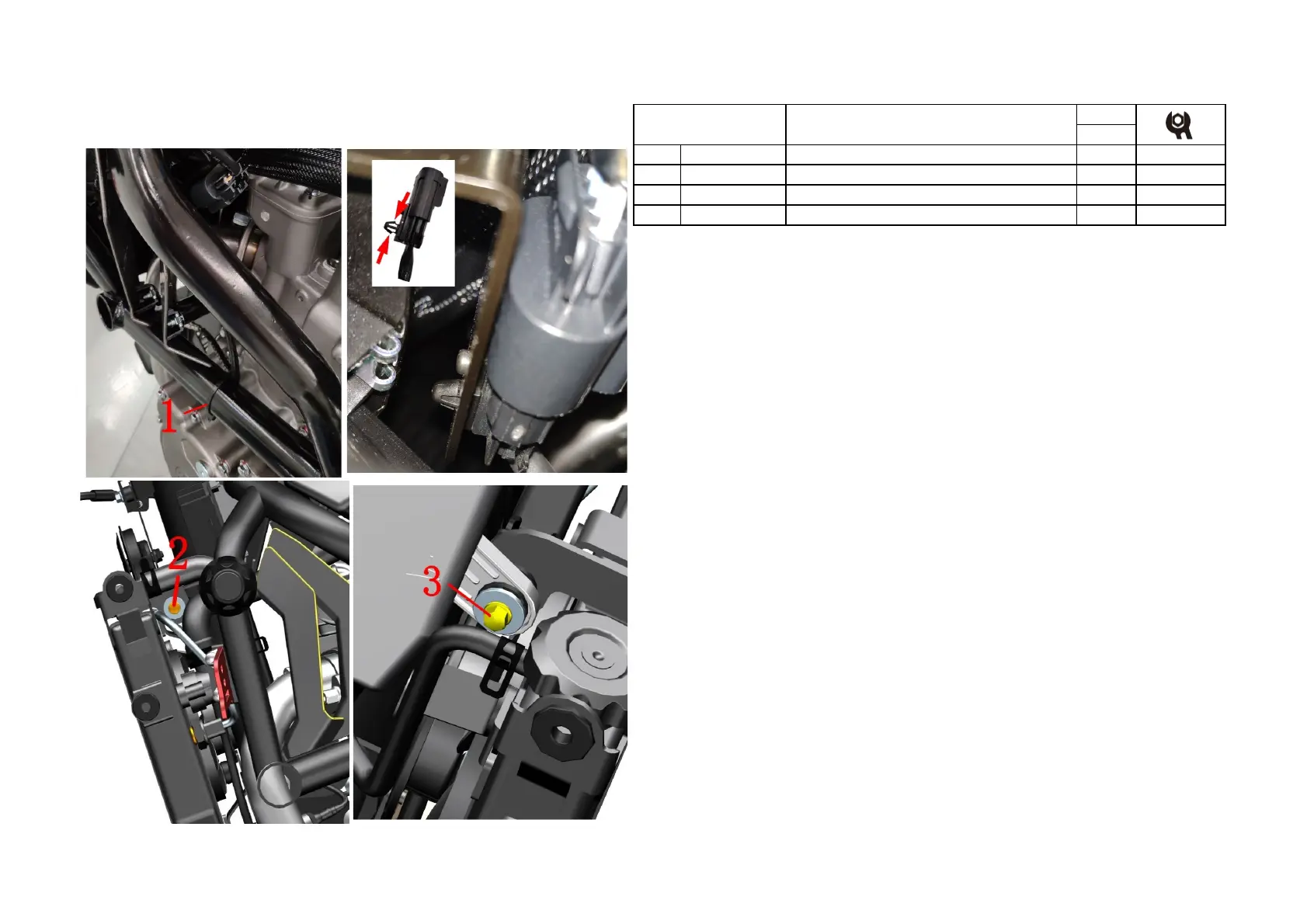

FIG.1 MUFFLER
COMPONENT
PROCEDURE:
●Muffler assembly
Remove the shroud assembly according to the step of "lower shroud assembly 1".
Referring to the steps in "Radiator Decorative Cover Part 1", remove the radiator decorative cover component
first.
Cut the tie belt ⑴.
Use pointed tongs to penetrate the gap of the engine decorative cover, slightly clamp the limit protrusion on the
buckle of the oxygen sensor, and pull the plug off the guard bar. Separate the oxygen sensor plug from the main
harness.
Remove the left main water tank bolt ⑵.
Remove the right main water tank bolt ⑶.
Pull the radiator assembly open to facilitate subsequent removal of muffler nuts.
CAUTION:
●The material should be protected during disassembly to prevent damage to the paint.
●The muffler should be completely cooled before it is disassembled.
Muffler component 1
