1、FRAME COMPONENT 11
CHK
A
DJ
NO. PART NO.
PART NAME QTY CAUTION
4014200-028000
ZT310-V2 frame assembly (for after-sale) (including
seat ring/nameplate/Euro V)
2
1130900-026000
ZT250
－
S Fix loop
2
after-sale
3
1274100-006000
ZT250
－
S Frame engine oil filter screen
1
4
1051453-003000 27.4×2.65 Acrylate O gule cushion loop 1
5
1274100-024000
ZT250
－
S Oil cooling joint
1 50±4N.m
6
1244100-033000 Sealing gasketφ12×φ20×2 1
7
1251100-066093
M12×1.5×15 Ablassschraube
（
color zinc
）
1 24±4N.m
8
1251300-057093
Non-standard bolt M10×1.5
（
dacromet
）
1 45±5N.m
9
1251700-025091
ZT250
－
S Side support bush
1
1274200-200000
ZT310
－
T side support(short)
1271200-165000 ZT310-T side bracket (short/dark gray)
11
1251100-088094
Non-standard bol M10×1.5×43
（
dacromet
）
1
12
1264100-001000
ZT250
－
S Side support spring
1
CAUTION：
●Remove the wind deflector component, handle bar component, steering column component first.
●Paint the lubricating grease on the cushion ring to decrease the rotary resistance of front forklift.
●The waste oil needs to be collected and returned to qualified institutions. It is forbidden to dump and
pollute the environment and the source of water.
●Pay attention to safety when mounting side support spring.
●All parts should be correctly assembled.
4014200-023000
ZT310-V frame after-sales assembly Euro IV
(including fix loop / nameplate)
Domestic

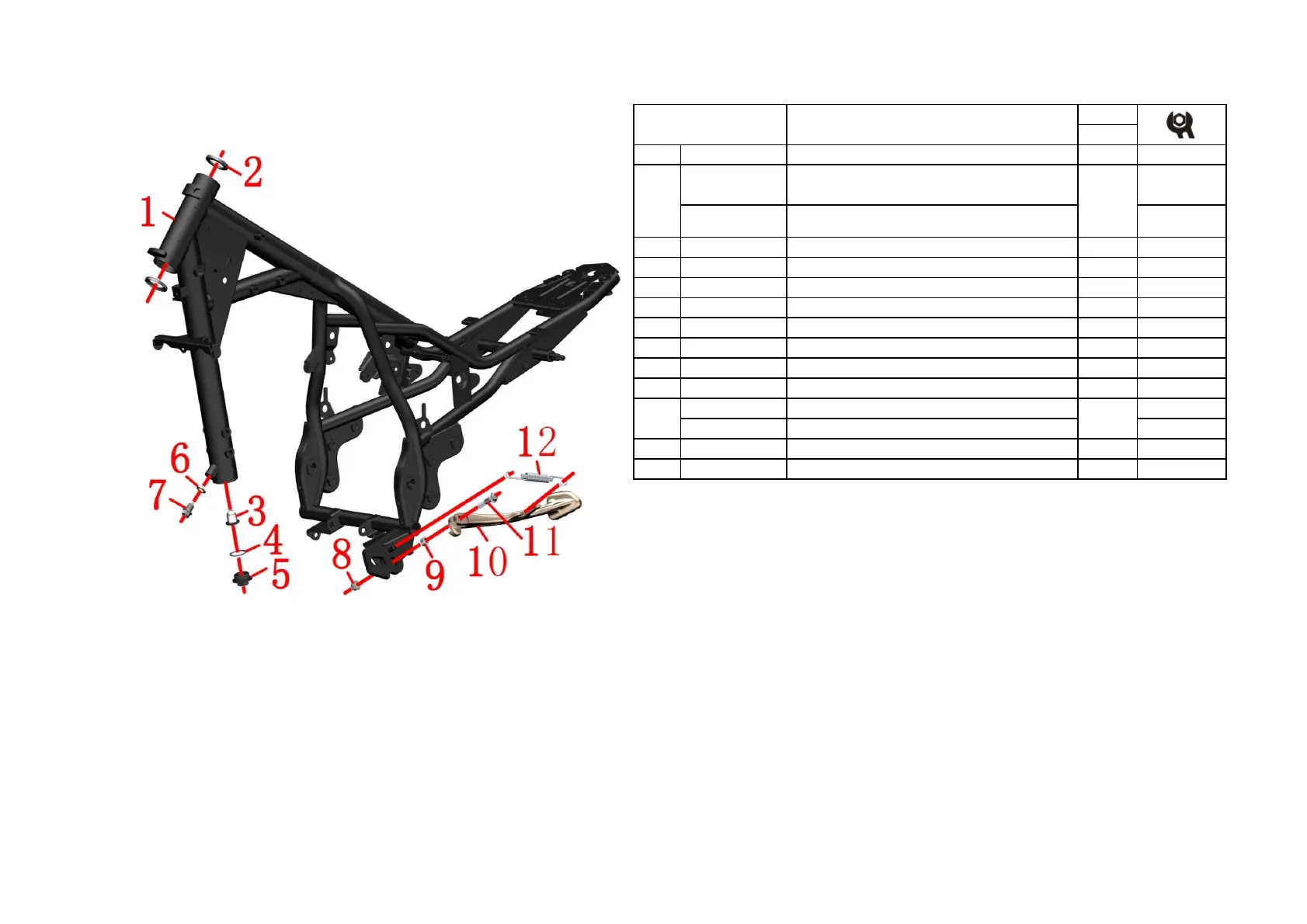

Fig.5 FRAME&ELECTRONIC
PARTS COMPONENT
Frame, Side support, the operation of releasing engine
oil
PROCEDURE:
●Checking the cushion loop
Checking whether the cushion loop ⑵ is frayed, if as it, please replace it on ZONTES website, fix the cushion
loop well and paint the lubricating grease on it with appropriate tool.
●Replacing the engine oil filter screen
Put the oil pan on the bottom and use the appropriate tools to remove the oil cold joint ⑸ , O ring ⑷, and oil
filter screen ⑶. When replacing the oil filter screen ⑶, the O-ring ⑷ must be replaced at the same time. The oil
cooling joint ⑸ must be tightened well when re-assembling which meets the standard torque value.
●Realease the frame tube enging oil
Put the oil pan at the bottom, use the appropriate tool to remove the oil bolts ⑺ and the sealing gasket ⑹, and
remove the oil from the frame tube. Refer to the instructions for detailed steps to replace the oil. It is
recommended that the engine oil should be replaced with oil bolts ⑺ and sealing gasket⑹ to prevent oil leakage.
●Sider support
Use the cross screwdriver to remove the side support spring, and guard against the personal injury caused by
spring contraction, remove the nuts ⑻ and bolts ⑾ with the appropriate tools. Remove the side support ⑽ and
bush ⑼, paint the lubricating grease on the bush⑼ when re-assembling ,then put it into the frame ⑴.
1 1
10 1
