13、MUFFLER COMPONENT 106
CHK
ADJ
NO. PART NO. PART NAME QTY REMARKS
1 1251100-137000 non-standard boltM10×1.5×100(Dacromet) 2
2 1251100-135000 non-standard bolt M10×1.5×95(Dacromet) 1
3 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color zinc)) 1
4 1251112-003093 M6×45 Hex flange surface 9.8 bolt (color zinc) 2 10N.m
5 4024200-058035 ZT310-V Muffler Left Anti-scalding Plate (Titanium) 1
6 1251300-057093 non-standard nuts M10×1.5 (color zinc) 3 65±5N.m
7 1251300-058093 hexagonal nut 2
8 1020241-094000 muffler flange 1
9 1250205-023000 GB70.1 inner hexagonal M8X35 (army green) 1
10 1274100-068095 ZT310 Muffler flanging bushing 2
11 1244100-064000 ZT310 Muffler rubber 1

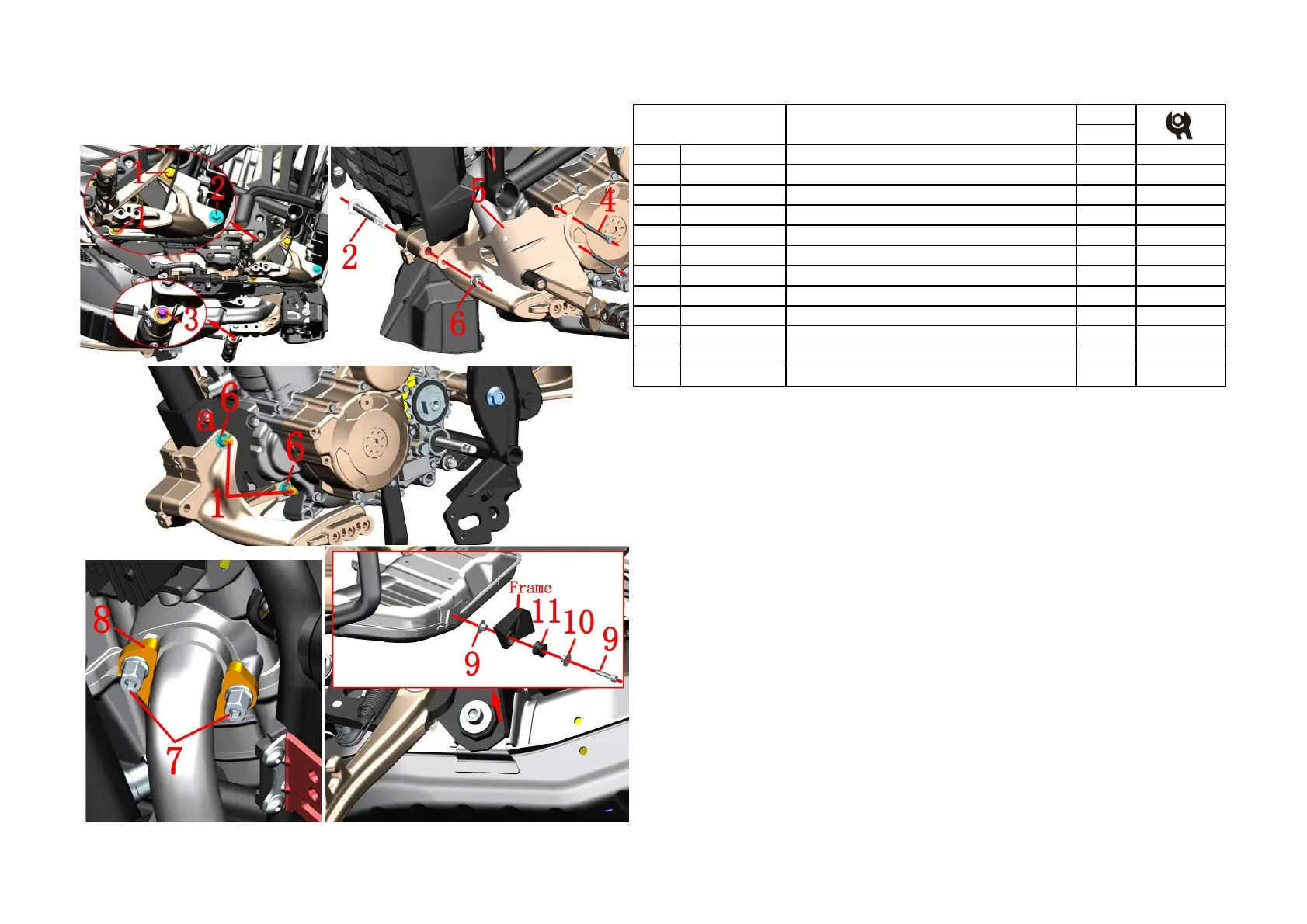

FIG.2MUFFLER
COMPONENT
PROCEDURE:
●Front-left pedal bracket assembly
Grasp the anti-scalding board and remove two bolts.
Fix the head of the bolt with sleeve, remove the nut and remove the anti-scalding board.
The gap between the left radiator and the left pedal bracket extends into the nut ⑴ which is fixed by the 14
Remove the bolt on the back of the shifter pedal rocker arm.
Fix the head of the bottom bolt_, remove the nut_with sleeve on the left side and remove the left foot bracket
assembly; the bolt can not be removed.
●The front of the muffler
Push the radiator assembly forward to reveal two nuts and remove them.
Remove the muffler flange.
●Muffler assembly
Remove the bolt_at the installation point of the left muffler and remove the outer bushing_. Buffer glue_and
bushing near muffler hanging ear need to be removed before the muffler assembly can be removed.
CAUTION:
●The muffler should be completely cooled before it is disassembled.
●Early production does not contain muffler left ironing plate, can be installed
Muffler component 2
