4、REAR WHELL COMPONENT 31
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000
Non-standard Bolt M6×16
（
SS
）
4
2 1224200-003000
ZT310
－
Z rear disc brake oil tube cleat
1
3 1224200-110000 ZT310-V rear mud plate fende 1
4 1244100-052000
Gum cushion, bush
（
φ8.5×φ14×1
）
3
5 1274100-057095 Bush φ6.2×φ8.4×3.5＋φ14×1.5 2
6 1250303-010093
GB6177.1M6
（
environmental color
）
2
PROCEDURE:
●Rear inner mudguard
First refer to the steps in the previous "Intake System Assembly-Replace the air filter element 1" to remove the
rear inner assembly.
Using the inner hexagon to fix the bolt ⑴, remove the nut ⑹ , and remove the bush ⑸ and the buffer adhesive
⑷. And then the lower bolt ⑴ and the pipe clamp ⑵ are taken out.
CAUTION:
●For details of the removal steps of the rear inner mud plate, see "intake system Assembly-replacement of Air
filter Core 1".

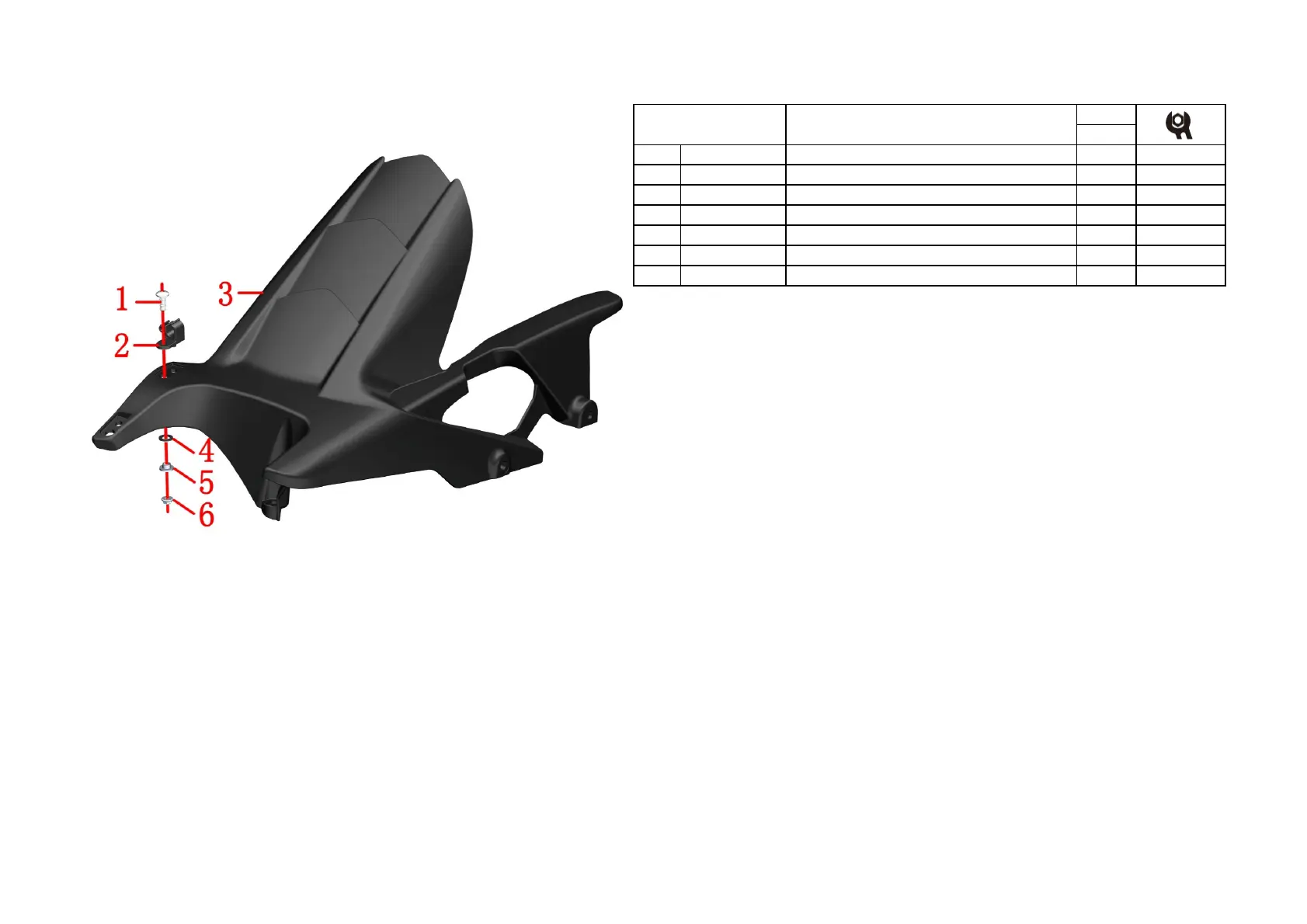

Fig.5 Rear wheel, swinging
arm assembly
Rear inner mudguard
