Zontes ZT310-V User Manual

11、REAR COVER COMPONENT 101
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000
Non-standard bolt M6×16
（
304 stainless steel
）
6
2 1274100-057095
Flanging bushing φ6.2×φ8.5×3.5
＋
φ14×1.5
6
3 1244100-052000
Buffer rubber of flanging bushing
（
φ8.5×φ14×1
）
6
4 1174200-029000 ZT310-V Stop light 1
5 1174200-027000 ZT310-V rear left light 1
6 4044201-252051 ZT310-V rear cover dark grey 1
7 1174200-028000 ZT310-V rear right light 1
8 1251300-063093
Plywood M6×11×15
（
color zinc
）
10
PROCEDURE:
●Rear light
First pull out the plug of the left rear tail lamp ⑸ and the right rear tail lamp ⑺.
Remove two bolts ⑴ of the brake lamp ⑷, take off the bushing ⑵ and cushion rubber ⑶;Pull up the outlet
side of brake lamp and remove it.
Remove the bolt ⑴ on both sides of the left rear lamp ⑸, remove bushing (2) and cushion rubber ⑶ ;Pull back
the left rear tail light.
Remove the right rear tail lamp ⑺as shown above.
Remove from the rear trim cover ⑹ 8 pieces nuts⑻
Respectively from the left tail lamp ⑸ and right tail lamp once each took a piece of nut.
CAUTION:
●The material should be protected during discomponent to prevent scratching the lamp.
●Never pull the cable directly.
●As shown at ①, users who have a production date before June 2020 must manually cut the red part of the tail
skirt before installation.

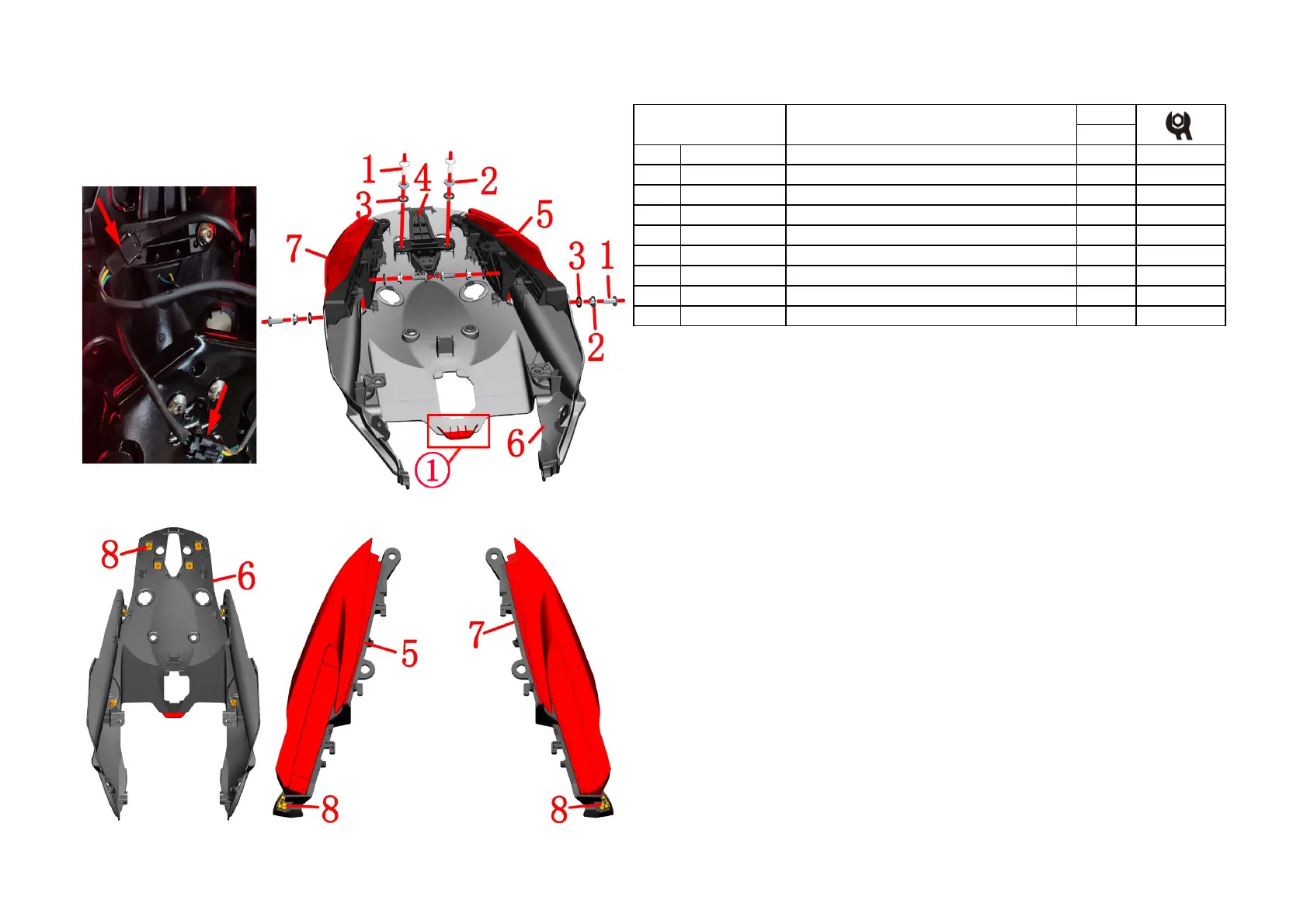

Fig.7 REAR COVER
COMPONENT
Tail skirt taillight component 4
