Zontes ZT310-V User Manual

7、FRONT FORK COMPONENT 68
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-061093 M6×22 Hex flange face full thread bolt 1
2 1224100-044000 Wheel speed sensor clamp 3
3 1251100-080094 Non－standard bolt M8×37 (color zinc) 2
4 1251100-101000 Non－standard bolt M6×12 (304 stainless steel) 3
5 1184200-045000 DF30wheel speed sensor 1
6 1251100-102000 Non－standard bolt M6×16 (304 stainless steel) 6
7 1274100-057095
flanging bushing φ6.2×φ8.5×3.5
＋
φ14×1.5
8
8 1244100-052000
buffer rubber of flanging bushing
（
φ8.5×φ14×1
）
8
10 1224200-107000 ZT310－V front fender extension baffle 1
11 1274200-038000 ZT310－X Front mudguard front oil pipe fixing seat 1
12 1250402-001091 GB12615φ3×10 1
13 1251300-063093
plywood M6×11×15
（
color zinc
）
2
yellow
purple
PROCEDURE:
●Wheel speed sensor
Pull out the plug of the wheel speed sensor⑸; then remove the clamp⑵. Remove the bolt⑷ then remove the sensor⑸.
●Front disc brake caliper
Remove the bolts⑴ and ⑶ so that the caliper will hang down naturally. It is forbidden to invert the caliper to prevent the
air from entering and causing the brake to fail.
●Front mudguard
Remove the 6 bolts ⑹ with the hexagonal tool by hand and remove the bushing ⑺ and cushion rubber ⑻.
Flip to the back, remove the two bolts ⑷, and remove the bushing ⑺ and cushion rubber ⑻. Separate the front fender ⑼
from the extended baffle ⑽ .
Remove the two splint nuts ⒀ from the front fender ⑼
The inside of the front mudguard can be protected with reticle or double-sided tape around the rivet ⑿, then the rivet is
ground off with a small sander, and the fixing seat ⑾ are removed.
ZT310－V front fender assembly (dark light
gray/purple decal / ABS)
ZT310－V front fender assemlight graylight graybly
(dark light gray /titanium gold decal/ ABS)
ZT310－V front fender assembly (dark light gray/ red
decal/ABS)
ZT310－V front fender part assembly (dark light gray
/ yellow decal / ABS)
white
after-sales
9
CAUTION:
●Pay attention to the strength when disassembling the front mud plate to prevent scratching the paint
surface.
●The front fender assembly already includes a tapping tube mount ⑾ and a rivet ⑿.Rivets need to be
assembled with professional tool.
4044201-393051
4044201-395051
4044201-396051
4044201-394051
4044201-397051

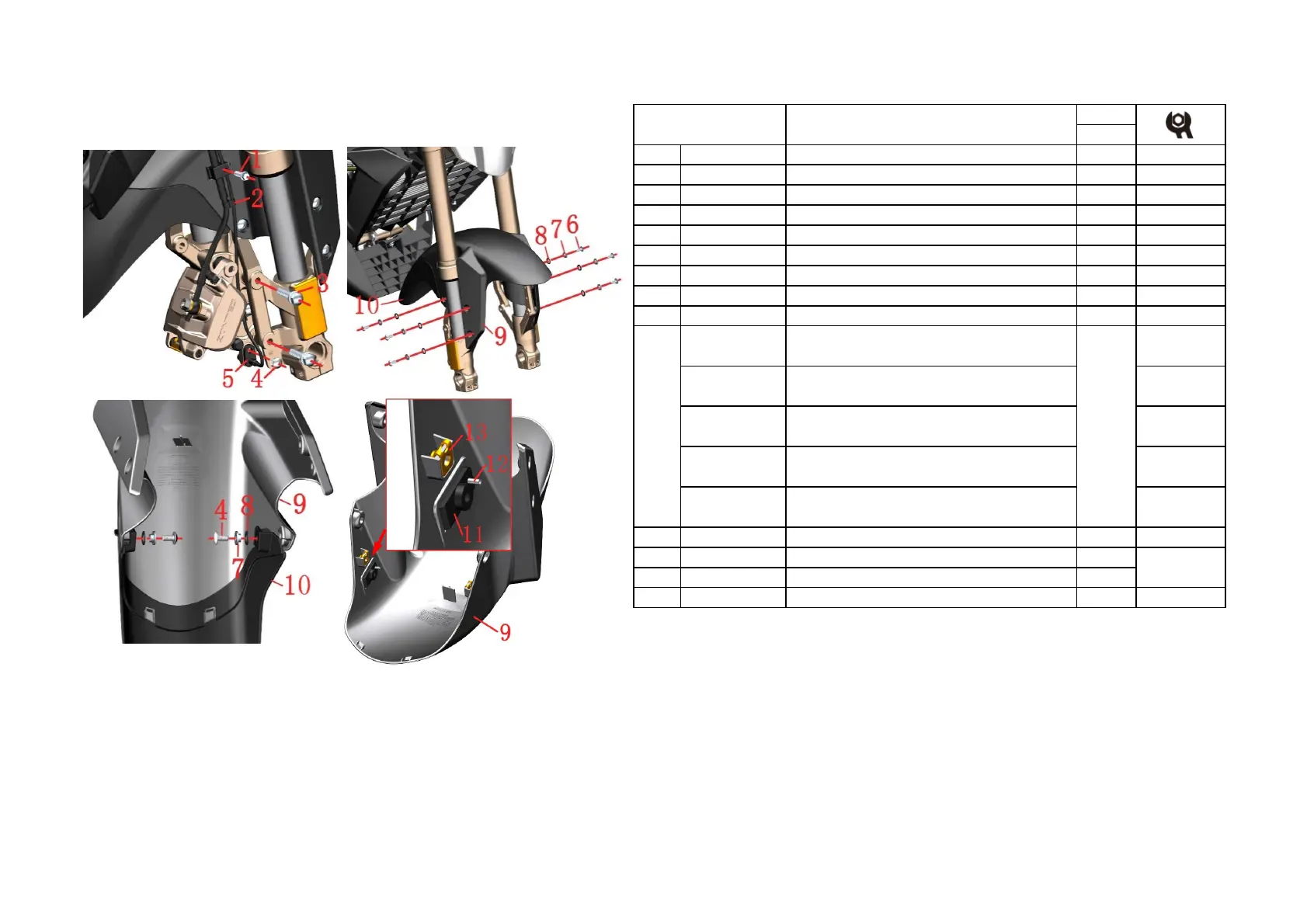

Front mudguard & wheel speed sensor component
Fig.9 FRONT FORK
COMPONENT
ZT310－V front fender assembly (dark Light Gray
/white decal / ABS)
black
red
1
