4、REAR WHELL COMPONENT 35
CHK
AD
J
NO. PART NO. PART NAME QTY CAUTION
1 1252200-032000 ZT310-V rear flat fork shaft 1
2 1251300-059093 125Rear fork shaft nutM14×1.5（Dacro） 1 110±5N.m
3 1251100-102000 Non-standard bolt M6×16（stainless steel） 5
4 1224200-003000 ZT310－ZRear disc brake pipe clamp 1
5 1080200-064000 ZT310-V 118 chain (CHOHO520HX) 1
6 1251100-105000
ZT310
－
ZChain adjuster bolt M10×70
2
7 1251300-050000
ZT310
－
ZChain adjuster nut M10
（
304stainless steel）
2
10 1274100-057095 Flanging bushingφ6.2×φ8.4×3.5＋φ14×1.5 2
11
1244200-026000 ZT310-V rear flat fork anti-wear block 1
12 1274200-043000 ZT310-V rear flat fork bushing 2
13 1051366-008000 8×20×19shock absorber hole bushing 2
14 1104100-005000 ZT250-S oil seal TC20×26×4 4
15
1094100-001000 ZT250-S needle roller bearing (HK2016) 4
after-sale
8
4024200-049000
ZT310-V aluminum alloy rear flat fork assembly
(including bearing/ oil seal)
Rear swinging arm component
1
19

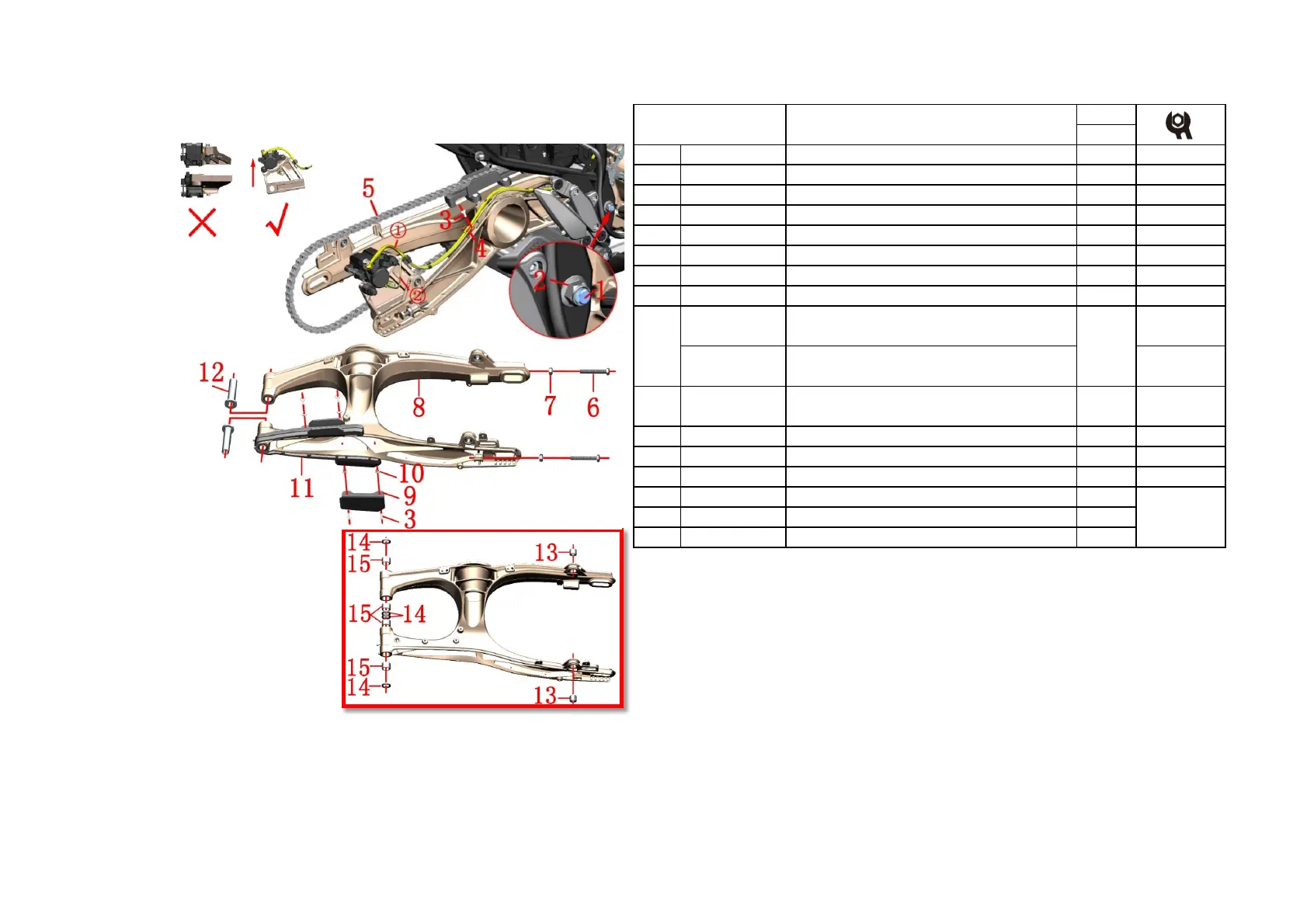

Fig.9 Rear wheel, swinging
arm component
4074200-006051
ZT310-V dark gray aluminum alloy rear fork assembly
(including bearing/ oil seal)
8
PROCEDURE:
●Rear fork assembly
Pull off the disc brake oil pipe①and wheel speed sensor② from the disc brake oil pipe clamp ⑷ ,loosen the
bolt⑶ and take off the disc brake oil pipe clamp.
The rear disc brake caliper is placed well ，always keep the rear brake clamp facing up
One person fastens the head of the rear fork shaft with sleeve, and the other person remove the nut ⑵ with it.
One person holds the rear fork assembly and the other person removes the rear fork shaft ⑴ with suitable tool
and then remove the rear fork assembly.
●Rear fork rear-resistant block
Remove the bolt ⑶ ,flanging bushing ⑽ with respectively inner hexagon tool，remove the anti-wear block
support ⑼ and remove the anti-wear block 11 from the rear flat fork assembly ⑻.
Remove the chain adjuster bolt ⑹ and nut ⑺ with the open end wrench.
Put the rear fork bushing ⑿ inward and remove it.
Shock absorber hole bushing⒀，Oil seal ⒁ and needle bearing ⒂ are used for interference compression.
CAUTION:
●The rear disc brake caliper must not be higher than the disc brake oil cup, otherwise the brake will
become soft or fail due to air entering the pipeline. Because the brake line requires extremely high
vacuum, it is necessary to ensure sufficient capacity for repair and disassembly.
●The ZT310-V aluminum alloy rear flat fork assembly ⑻ including 2 pcs bushing⒀, 4 pcs oil seal⒁
and bearing
⒂
.
1274200-116000
Fixed bracket of flat fork anti-wear block after ZT310-
V
