4、REAR WHELL COMPONENT 28
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1020242-263021 Rear auxiliary mud plate aluminum alloy bracket 1
2 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 6
3
1224200-090000 Rear auxiliary mud board retaining plate 1
4 1250105-137093 GB5789M6×16 (environmental color) 4
5 1274100-057095 Flanging bushing φ6.2×φ8.4×3.5+φ14×1.5 5
6 1244100-052000 Cuff bushing cushioning rubber (φ8.5×φ14×1) 5
7 1250501-007093 GB93φ8 (environmental color) 5
8
1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 2
9 1270300-039000 HJ125-6 rear license plate bracket 1
10 1250303-010093 GB6177.1M6 (environmental color) 2
11 4024200-036000 Rear section of ZT310-V rear mud plate iron support 1
12 4024200-035000 Front section of ZT310-V rear mud plate iron support 1

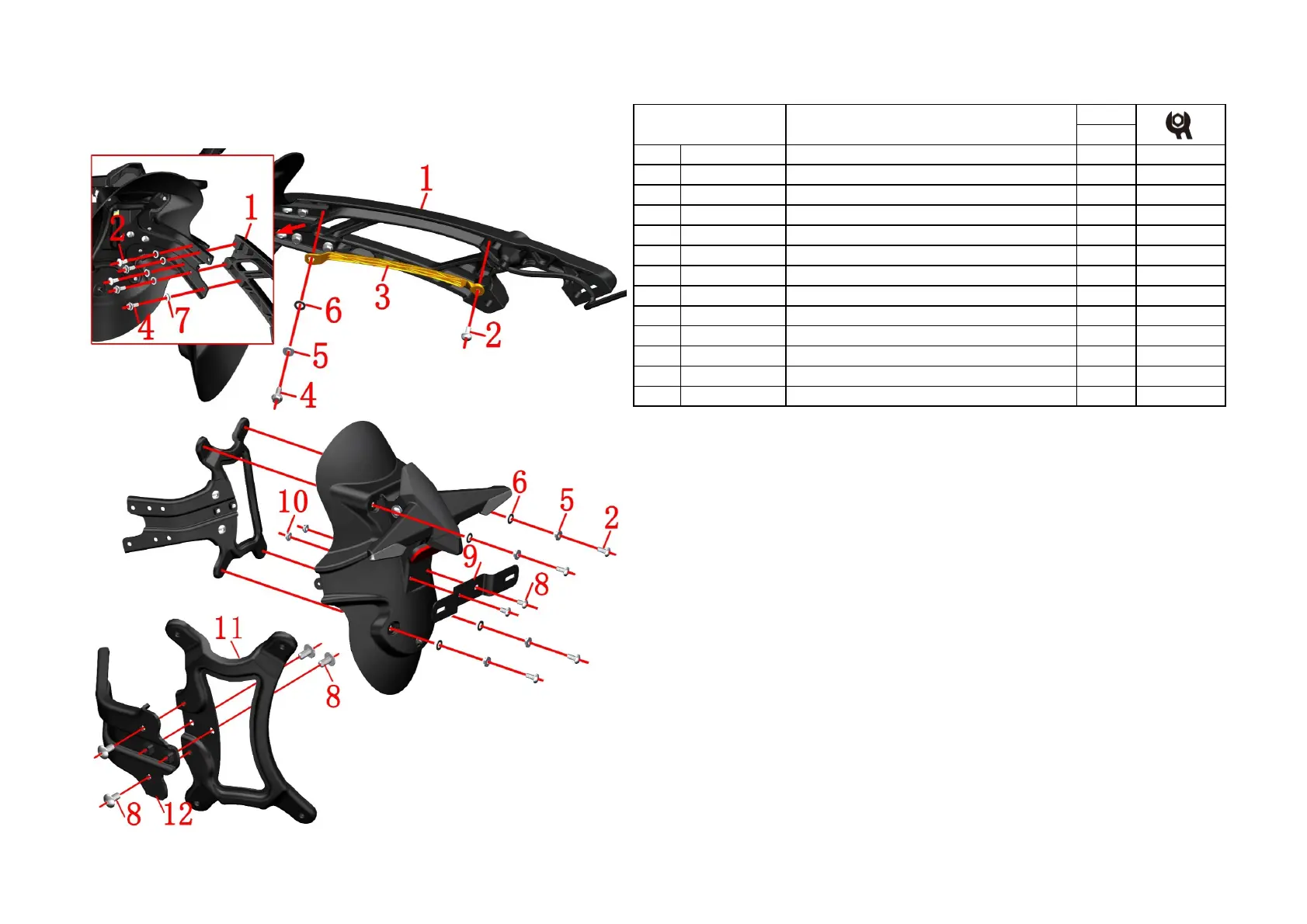

Fig.2 Rear wheel, swinging
arm assembly
PROCEDURE:
●Retaining plate
Remove the bolts ⑵and ⑷, remove the flange bushing ⑸ the rubber pad ⑹, and finally remove the retaining
plate ⑶.
●Rear auxiliary mud plate iron bracket
Hold the rear turn signal assembly, removethe 2 pcs of bolt⑵ and 3 pcs of ⑷, then remove 5 pcs of spring
washe⑺. Then take off rear auxiliary mud plate component.
Remove the bolt⑻ and nut⑽ at the license bracket⑼ and remove the license bracket⑼.
●Iron support
Remove 4 bolts ⑵, remove flanging bushing ⑸, rubber pad ⑹, and finally remove iron support assembly.
Remove 4 bolts ⑻ to separate the rear section ⑾ and the front ⑿ of the iron bracket.
CAUTION:
●Do not pull the cable hard when removing the sub-mud switch.
●
When reassembling, first check if there is any pressure on the wire to prevent short circuit when tightening the
bolt.
Rear auxiliary mud plate component 2
To Next Page
