6、COOLING SYSTEM COMPONENT 57
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000 Non-standard bolt M6×16(304 stainless steel) 3
2 1274100-018000 ZT250-S muffler anti-scalding bushing 3
3 1251112-001093
（
）
4 1051654-002000 Seal gasketφ6×13×1.8 1

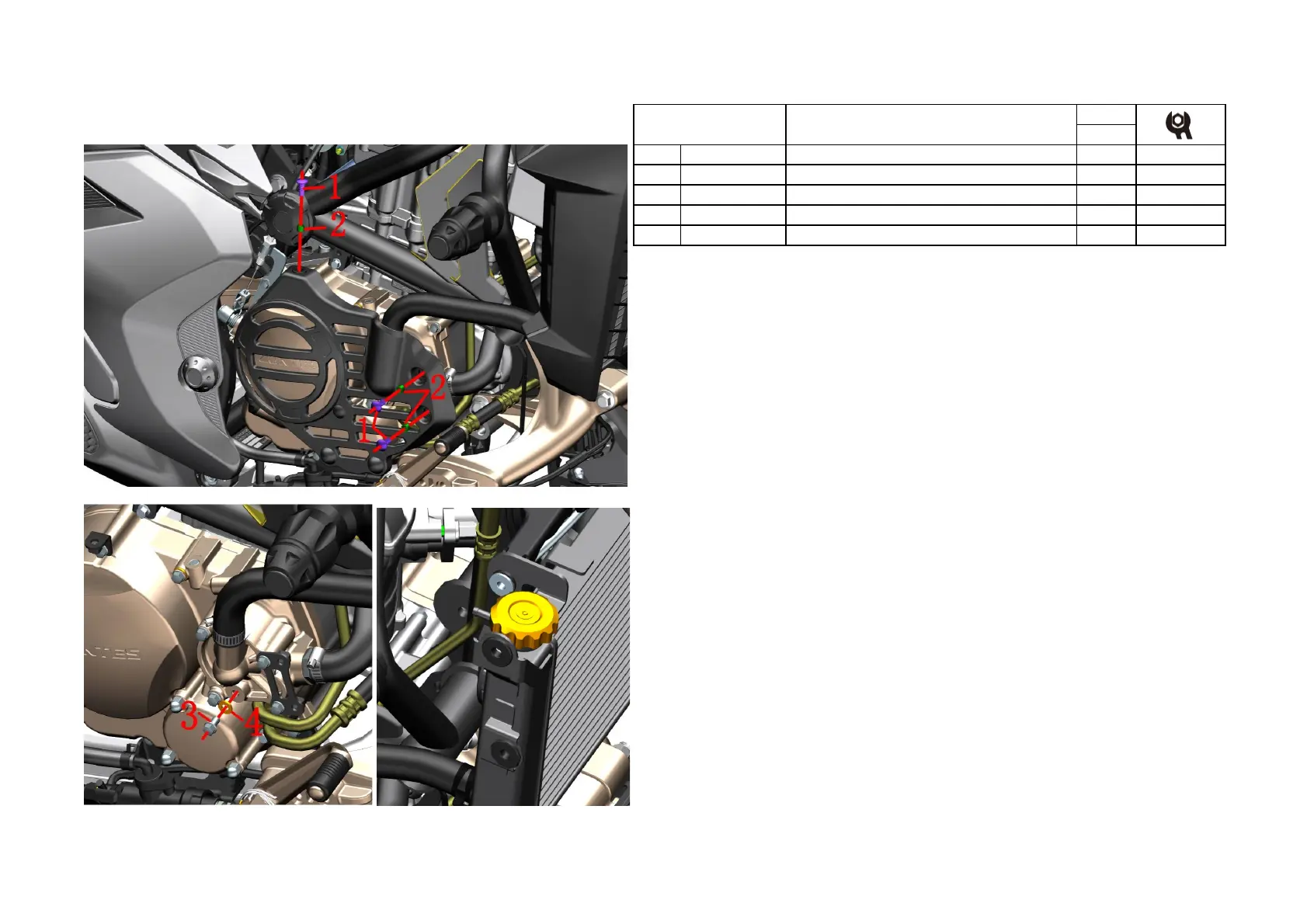

Fig8 COOLING SYSTEM
COMPONENT
PROCEDURE:
●Engine decorative cover assembly
Remove 3 bolts ⑴ respectively, after taking off bushing ⑵ and take off engine decorative cover assembly.
●Drain the cooling liquid
Refer to the previous “Sub tank assembly” procedure to vent the coolant in the sub tank.
After placing the oil pan or other container under the right side of the vehicle, tilt the vehicle to the right.
After wearing waterproof gloves with both hands, remove the bolts ⑶ with a sleeve and remove the
combination seal ⑷.
Drain the coolant with a funnel or other device.open the cooling liquid tank cover to accelerate the draining of
cooling liquid in the cooling system.
Wipe out all of the cooling liquid on surface every component with a clean cloth.
CAUTION:
●Motorcycle should be well supported.
●Manipulation should start after the engine is completely cooled down.
●Cooling liquid is toxic. Avoid strictly eye or skin contact.
Draining cooling liquid
To Next Page
