8、FUEL TANK COVER COMPONET 82
CHK
ADJ
NO. PART NO.
PART NAME QTY CAUTION
1 1050954-027000
ZT310
－
V EFI high pressure tubing assembly 1
2 1274200-088000
ZT310 water pipe hoop (φ10.5) 1
3 1244200-095000
ZT310
－
V carbon canister adsorption tube (φ5×φ11) 1 24N.m
4 1250205-043093
Gb70.1m8×55 (environmental color) 2
【
1
】
5 1251900-028093
ZT250
－
R fuel tank flat pad φ9×φ37.5×2 2
6 1251500-081000
Non
－
Standard flat pad φ13×φ8.2×1.5 ( color zinc) 2
7 1244100-020000
ZT250
－
S fuel tank pressure rubber 2
8 1244100-053000
ZT250
－
S second generation fuel tank gasket 2
9 1274100-080000
ZT250
－
R seat cushion fixing block 1
10 1244100-019000
ZT250
－
S tank inner limit rubber 1
fuel tank
lock plug
PROCEDURE:
●Fuel tank assembly
Open the fuel tank cover first, and do not close it during the subsequent disassembly.If you accidentally close it,
you can find the fuel tank lock plug near the auxiliary water tank. After connecting, re-open the fuel tank cover.
Place the oil pan on the left side under the high pressure oil pipe ⑴, and press the limit buckle at the direction
indicated by the arrow a to pull out at the rear of the car.
Use a pair of pliers to clamp the hoop slightly at the bottom of the right tank and move it down about 30mm,
leaving the boss on the tank snorkel.Adsorption tube ⑶ Remove from the fuel tank.
Remove the bolts ⑷, remove the flat pads ⑸ and ⑹; and press the glue ⑺.The flat pad ⑹ was added in mid-
August 2019 to prevent excessive compression of the tank rubber and rubber.
Pull the fuel tank assembly slightly behind the rear and lift the rear of the fuel tank assembly up.Do not lift too
high to prevent fuel from escaping from the snorkel.Unplug the cable plug b of the oil pump.
Remove the fuel tank gasket ⑻, the seat cushion fixing block ⑼, and the tank liner limit rubber from the
frame.
CAUTION:
● The fuel tank should be protected during the disassembly process to prevent damage to the paint surface.
●
Before disassembling the fuel tank assembly, it is recommended to use the oil pump to pull out the fuel or use
off the fuel
● Fireworks, telephone calls should not be allowed near the motorcycle -removal workshop to prevent
accidents.
● A small amount of fuel leaks when pulling out the high pressure tubing subassembly, and should prevent the
fuel from dripping to the outside of the engine or the muffler.

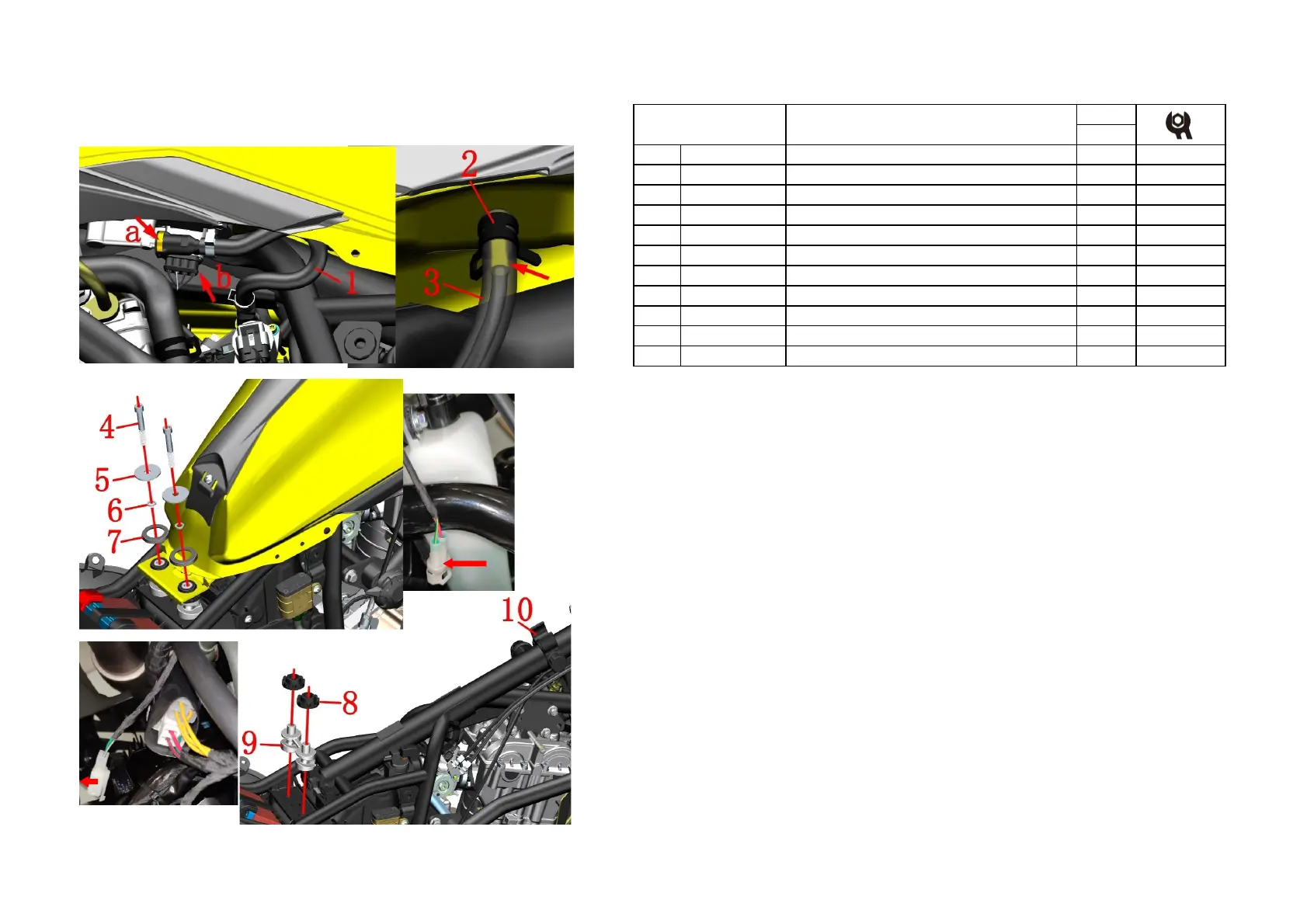

Fig. 1 FUEL TANK
COVER COMPONET
Fuel tank assembly
