3、INTAKE SYSTEM COMPONENT 21
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-101000
（
）
2 1251100-102000
（
）
3 1274100-057095
flanging bushing φ6.2×φ8.5×3.5
＋
4 1244100-052000 buffer rubber of flanging bushing （φ8.5×φ14×1） 2
5 1224200-111000 ZT310-V electrical box 1
A B
C D
E

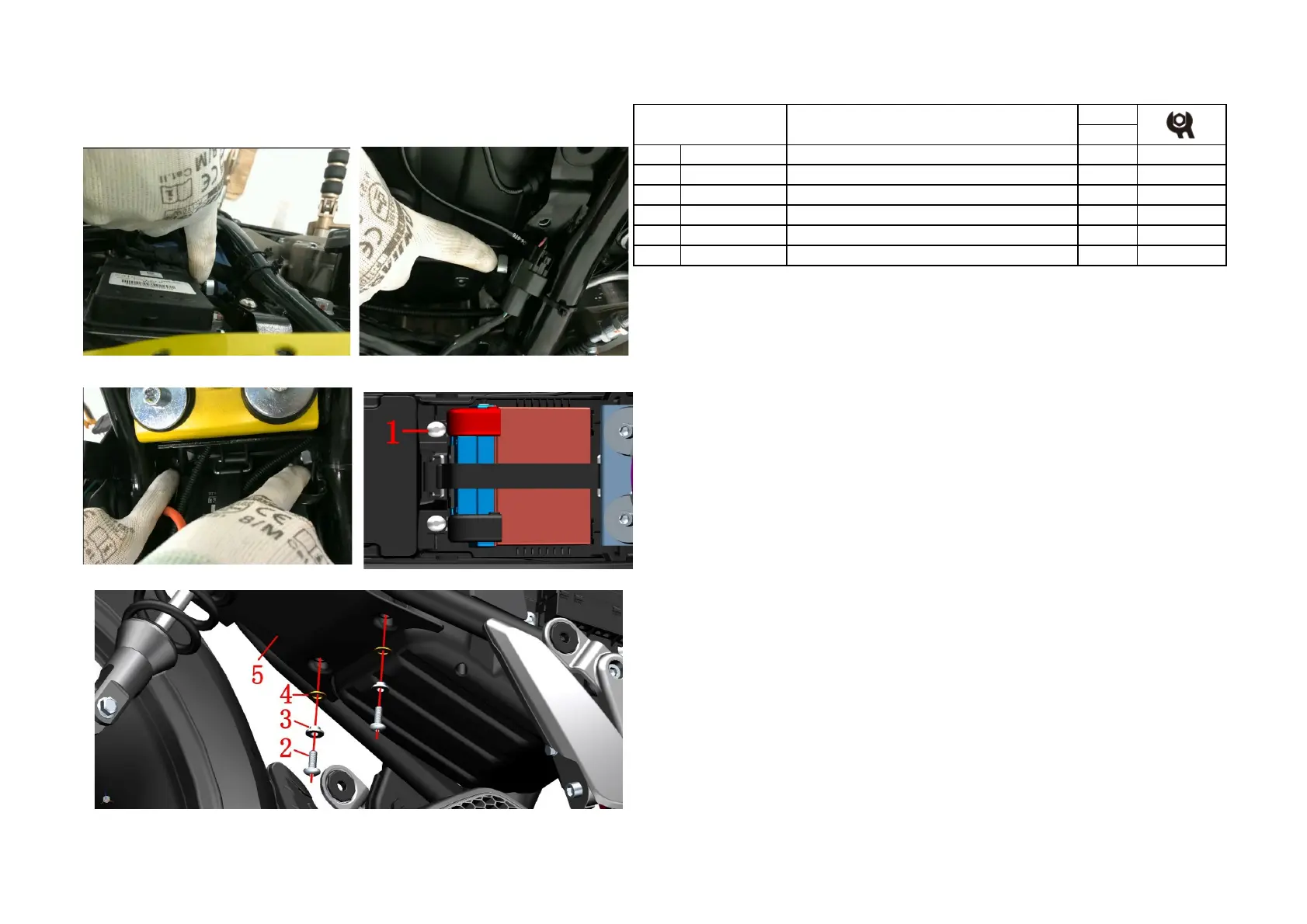

Fig.7 INDUCTION
SYSTEM COMPONENT
Induction system component
PROCEDURE:
●Air filter
Locate the lock pins at the four corners of the air filter. Open the card and remove the four bolts with a Phillips
screwdriver.
●Electric device box
Remove the bolts ⑴ near the positive and negative terminals of the battery.
Remove the bolt ⑵ underneath and remove the bushing ⑶ and cushion rubber ⑷.
●Air filter bottom case
The front part of the electrical device box ⑸ is pulled down in one hand, and the air filter bottom case of one
hand is taken out.
CAUTION:
● Pay attention to safety when opening the lock card.
● Do not pull it open when pulling down the device box.
