Zontes ZT310-V User Manual

1、FRAME COMPONENT 8
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-061093 M6×22 Screw bolt 1
2 1274200-033000
ZT310－R No.2 holder of front disc oil pipe
1
3 1184200-004000 ZT310 Horn 1
4 1274100-017000
ZT250－S Cable clip
2
5 1224100-037000
0 level antiflaming binding（black 3.6×295）
2
6 1274100-095000
ZT250－S Holder of flameout switch cable
1
7 1184100-012000
ZT250－S Flameout switch
1
8 1250205-040095 GB70.1M8×16 Screw 2
9 1251112-001093 M6×16 Hexagon flange bolts (color zinc) 1
10 1274200-183000 ZT310-V outlet pipe bracket 1
1184200-033000
ZT310－R Rectifier（Lithium）
1184200-133000
ZT310 Rectifier（230W） 【1】
1184200-174000 ZT310 rectifier (five wire)
12 1274200-141000 ZT310-V high voltage package bracket 1
13 1251100-101000
Non-standard bolt M6×12（304 stainless steel）
1
1184200-108000 ZT310 EFI ignition coil
1184200-104007 ZT310 EFI ignition coil (with high voltage line)
1184200-177000
ZT310 EFI ignition coil (with high-voltage wire/with
damping wire)
New
15 1250201-032093 GB818M5×16 bolt 2
16 1050954-017000
LDK8RTIP－0.8 sparking plug
1

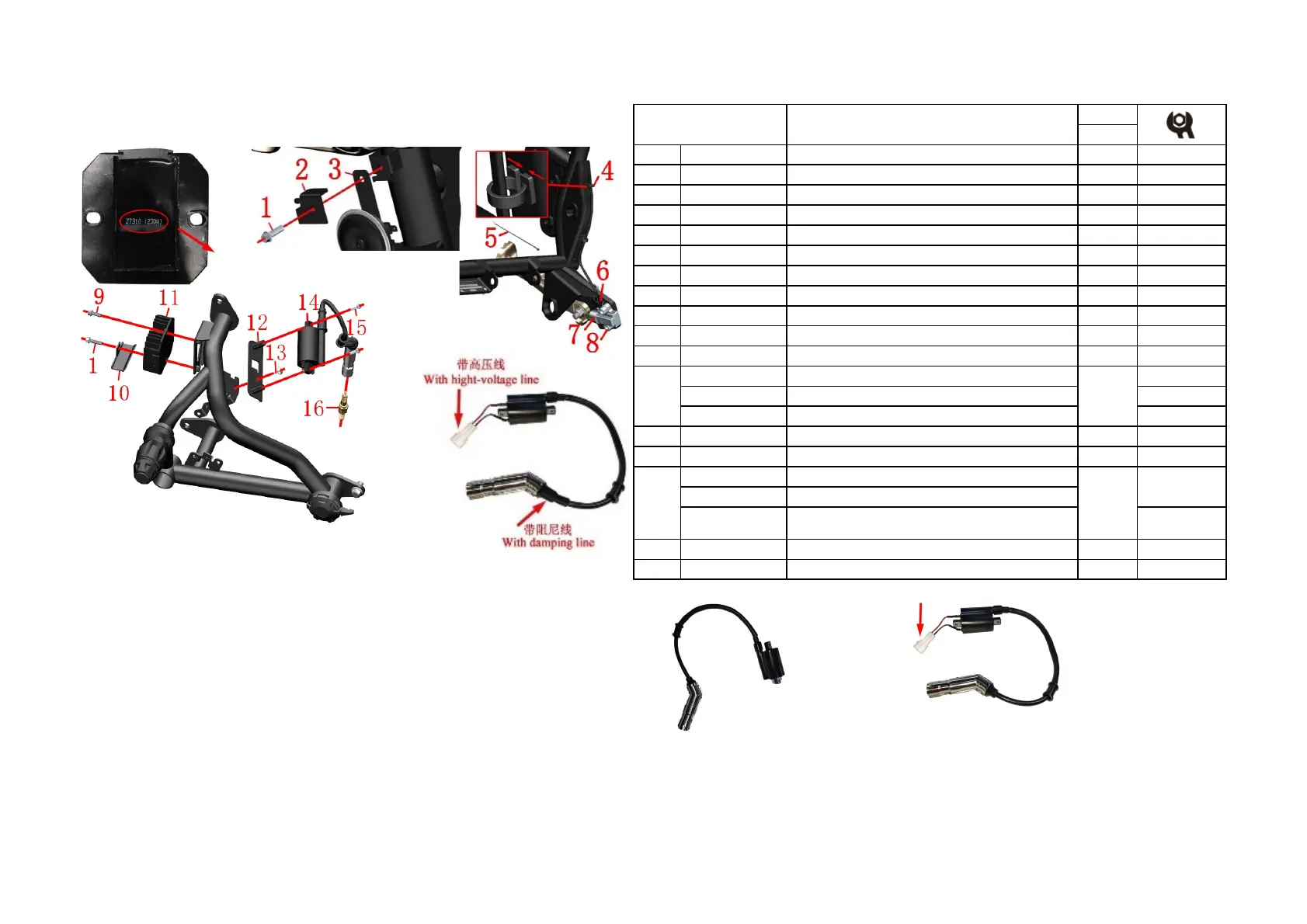

Fig.2 FRAME&ELECTRONIC
PARTS COMPONENT
Electronic parts COMPONENT-2
PROCEDURE:
●Horn
Take off the plug of horn① take the horn ⑶ by one hand use tool rotate the screw ⑴ by another hand
remove the holder⑵ then take off the horn.
●Flameout switch
⑷⑹ ⑸
.
Find and take off the plug of the flameout swich press and take off the cable clip cut ribbon
Using the inner hexagon tool, remove the bolts ⑻、the holder ⑹ and the flameout switch ⑺ .
●Rectifier
Find and remove the rectifier plug, remove the bolt ⑽, remove the outlet pipe bracket ⑾; remove the
bolt ⑼ and remove the rectifier ⑿. Note that the rectifier is not universal.
●Ignition coil
First remove the oxygen sensor cable tie from the high pressure package bracket ⒀. Then pull out the
metal shield cap of the ignition coil ⒂ from the spark plug ⒄ on the engine, and then remove the bolt ⒃
with a Phillips screwdriver to remove the coil ⒂. Remove the bolt ⒁ and remove the high pressure
package bracket ⒀.
CAUTION：
● The ignition coil needs to distinguish whether it has a high voltage line. If your vehicle uses an ignition coil
without a high-voltage line, you must replace the main wiring harness with an ignition coil with a high-voltage
line.
● 【1】The back of rectifier printed "ZT310(230W)" for the large magnetic motor version.
14 1
Old
111
ZT310(230W)
ZT310 EFI ignition coil
ZT310 EFI ignition
coil (with high
voltage line)
