6、COOLING SYSTEM COMPONENT 59
CHK
AD
J
NO. PART NO. PART NAME QTY CAUTION
1 1274200-187021 ZT310-V Main water tank 1
2 1244100-002000
ZT250
－
S Side cover round rubber
4
3 1274200-091000
ZT310 water pipe clamp
（
φ27
）
1
4 1274200-089000
ZT310 water pipe clamp
（
φ22
）
2
5 1244200-067000 ZT310-V small circulation water pipe 1
6 1244200-071000 ZT310-V engine outlet water pipe 1
8 1274200-267021 ZT310-V Main water tank(right return water) 1
Old New
1
New
Old

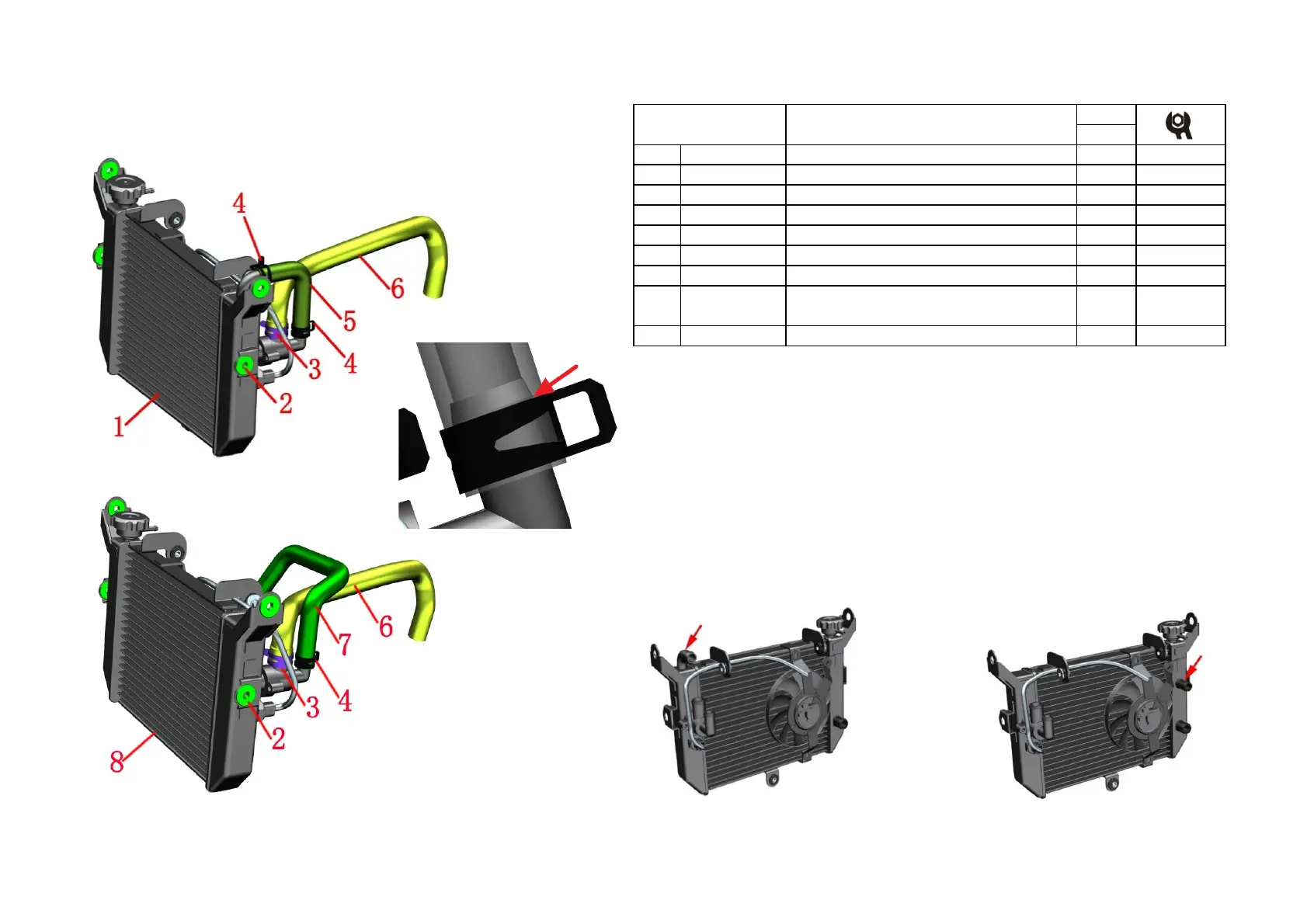

Fig.10 COOLING
SYSTEM COMPONENT
Main water tank assembly 2
PROCEDURE:
●Main tank assembly
Remove 4 pieces of side cover round glue ⑵ from the main water tank ⑴ or ⑻.
After wearing the waterproof gloves, clamp the hoop with pliers ⑷ and remove the hoop after removing the
anti-slip boss.
Remove the small circulation water pipe ⑸ or ⑺ and take off the two hoops ⑷.
Remove the outlet pipe ⑹ and the hoop ⑶ as previously described.
CAUTION:
●Cooling liquid is toxic. Avoid strictly eye or skin contact.
●Do not disassemble the hoop with too strong force. If not, it will cause permanent deformation and lose
elasticity, which will lead to leakage of cooling liquid.
●From May 14, 2020, the new main water tank will be switched, and the old water tank will be discontinued.
You need to purchase the "1274200-267021 ZT310-V main water tank (with temperature control switch / right
small return water)" and "1244200-113000 ZT310 -V small circulation water pipe (right return water) ".
ZT310-V small circulation water pipe(right return
water)
1244200-1130007
