7、FRONT FORK COMPONENT 81
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-061093 M6×22 hex flange face full thread bolt 1
2 1224100-044000 Wheel speed sensor clamp 1
3 1224200-003000 ZT310－Z rear disc brake pipe clamp 4
4 1251100-102000 Non－standard bolt M6×16 (304 stainless steel) 4
5 1251100-101000 Non－standard bolt M6×12 (304 stainless steel) 1
6 1184200-045000
DF30 wheel speed sensor
1
7 1251100-112000 Disc brake tubing bolt M10×1－22 1 32N.m
8 1251513-013000 Brake brake tubing copper washer φ15×φ10.2×1.5 2

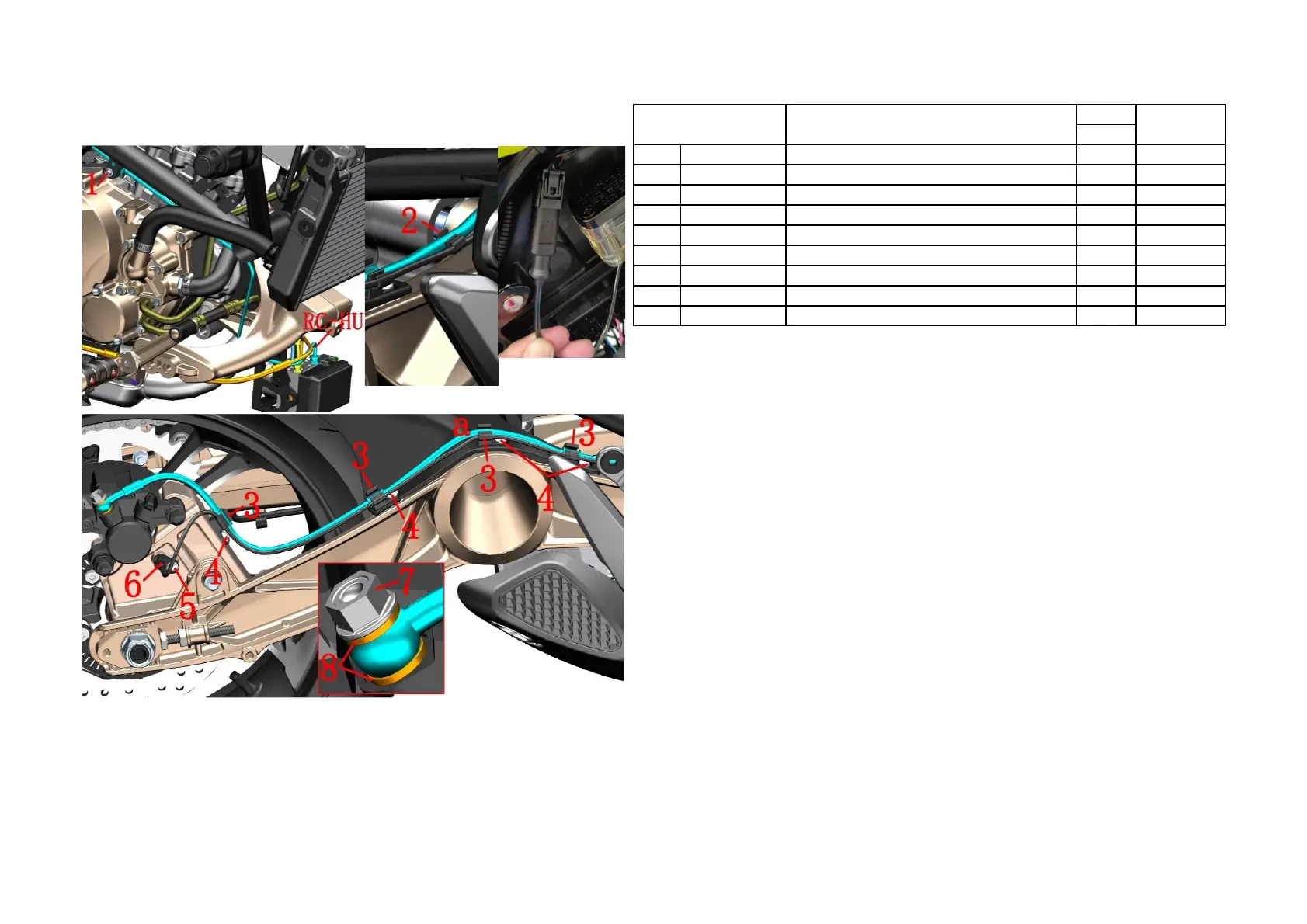

Fig.22FRONT FORK
COMPONENT
PROCEDURE:
●Rear disc brake caliper
Refer to the steps of removing the rear wheel assembly in the front, remove the rear axle nut and the right chain
adjuster, and then retract the rear axle to the left to remove the rear disc brake caliper assembly. Put the rear axle,
right chain adjuster and rear axle nut back into the rear fork.
●RC-HU Oil Pipe
Rear disc brake calipers and hydraulic control unit placed under the oil pan
In the previous steps, remove the nut of the pilot control unit and the brake fluid. Connect the RC-HU oil pipe
to the hydraulic control unit.
Remove the bolt ⑴; find the clamp ⑵ on the back of the right foot and remove it.
Pull the RC-HU oil pipe out of the 4 disc brake tubing clamps ⑶.
After wearing the waterproof gloves, remove the bolts ⑺ with a 12# sleeve; remove the copper washers ⑻. If
you need to replace the RC-HU tubing, it is recommended to replace the two copper washers ⑻ at the same
time; the bolts ⑺ can be replaced if they are not damaged.
●Wheel speed sensor
Remove the wheel speed sensor cable connector and pull it out. Pull the sensor cable out of the 4 disc brake
tubing clamps ⑶. Remove the sensor wire after removing the bolt ⑸.
●Disc brake pipe clamp
a-For the disassembly and assembly of the disc brake tubing clamp, see the steps in the inner mud plate.。Do
not loosen the bolts ⑷ at a) if necessary. The other three positions of the tubing clamp can be removed after
removing the bolt ⑷.
CAUTION:
●
Be sure to disassemble the muffler and engine after they have cooled down completely. The horizontal support
of the vehicle should be fixed before disassembly and assembly work.
●The precautions for brake fluid are described in the previous section.
●The torque of the four oil pipe nut joints at the pilot unit is 18 N.m.
ABS brake system－5
