6、COOLING SYSTEM COMPONENT 56
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1051454-014000 9.8×2.5 acrylic o-ring 3
2 1274200-186000 ZT310-V Frame bypass oil pipe 1
3 1251100-061093
M6×22 Hex flang bolt thread level 8.8 (color zinc)
3
4 1251100-089094
oil bolt M14×1.50×32 3 30±2N.m
5 1244100-034000
combined sealing gasket φ14×φ20×2 6
6 1274200-189000 ZT310-V Engine outlet oil pipe 1
7 1244200-015000 ZT310-R Engine inlet oil pipe 1
A
E
C

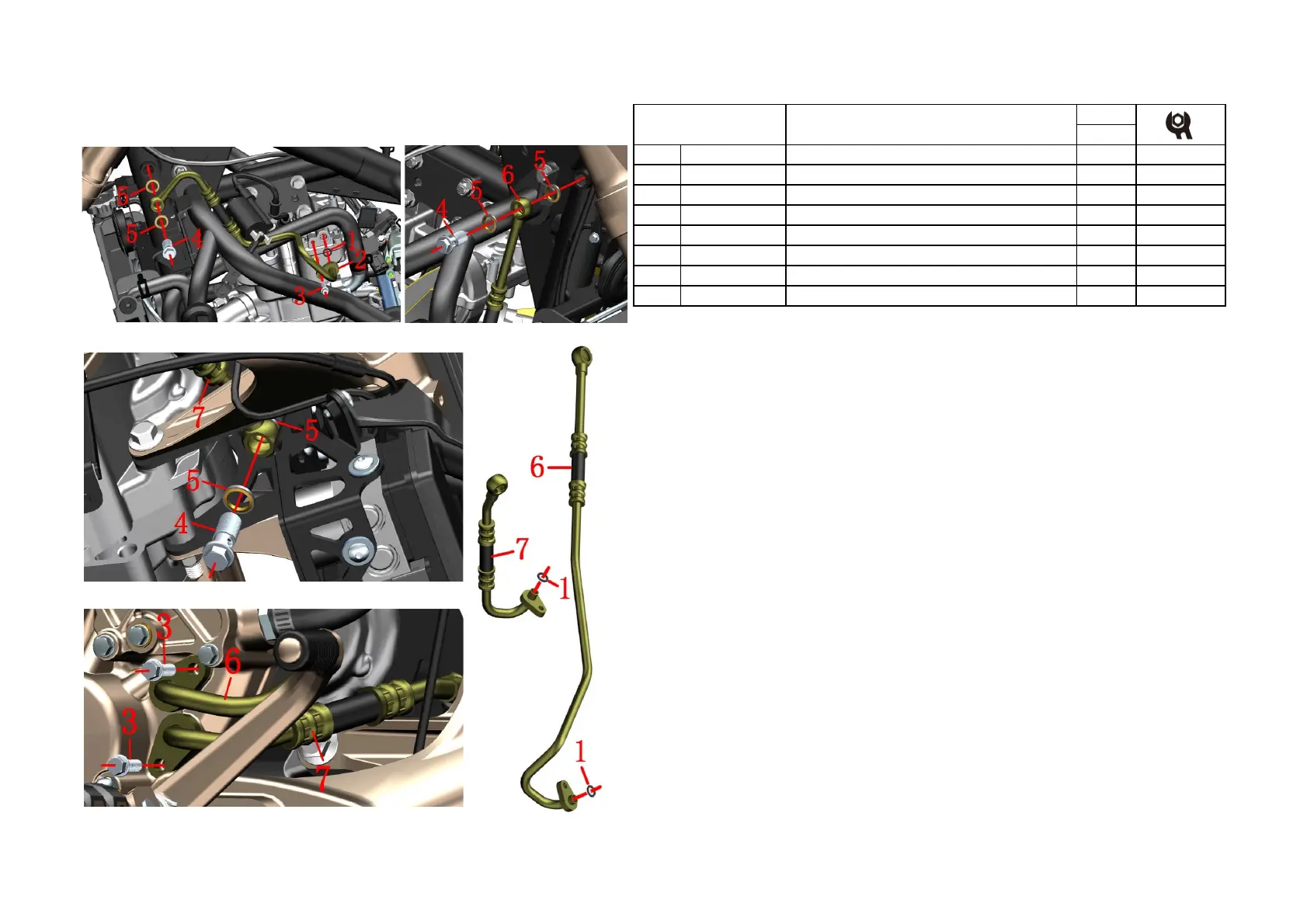

Fig.7 COOLING SYSTEM
COMPONENT
PROCEDURE:
●Chassis connected oil tube
Disassemble oil passing bolt ⑷,take off 2 pieces combination seal ⑸，pictured A。
Disassemble bolt⑶ close to engine with socket sleeve. Disassemble chassis connected oil tube. Take off O-ring
●Engine oil outlet tube
Disassemble oil passing bolt ⑷, Remove 2seal gasket ⑸ with socket sleeve，pictured B
Disassemble oil passing bolt ⑷, seal gasket⑸ with socket sleeve，pictured C
Disassemble bolt ⑶ with socket sleeve. Take off engine oil outlet tube ⑹, engine oil intake tube ⑺，pictured
D。
The oil outlet pipe ⑹ and the oil inlet pipe ⑺, Remove 2 o-ring ⑴.
CAUTION:
●Disassembling the cooling system while the motorcycle is hot is prohibited. Wait until the engine and muffler
cool down thoroughly for the manipulation.
●Wasted engine oil should be collected and hand over to qualified facilities for further treatment. Do not pour
the oil anywhere and avoid pollution of environment and water source.
●Do not disassemble the oil tube violently in case of deformation of bush.
●To avoil leakage, changing seal gasket and O-ring every time together with engine oil is suggested.
●Be sure to wipe the connecting surface with clean nonwoven before reassembling.
To Next Page
