7、FRONT FORK COMPONENT 70
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000 nonstandard bolt M6×16304 stainless steel 1
2 1274100-057095
flanging bushing φ6.2×φ8.5×3.5
φ14×1.5
1
3 1244100-052000
buffer rubber of flanging bushing
φ8.5×φ14×1
1
4 1251100-102000 nonstandard bolt M6×16304 stainless steel 2
5 1174200-026000 ZT310 V headlight 1
6 1274200-133000 ZT310V headlight lower bracket 1
7 1240400-007000 battery holder buffer aprons 2
8 1264100-006000 ZT250S Pedal circlip 2
9 1274200-024000 ZT310R Front light rotated pin 2

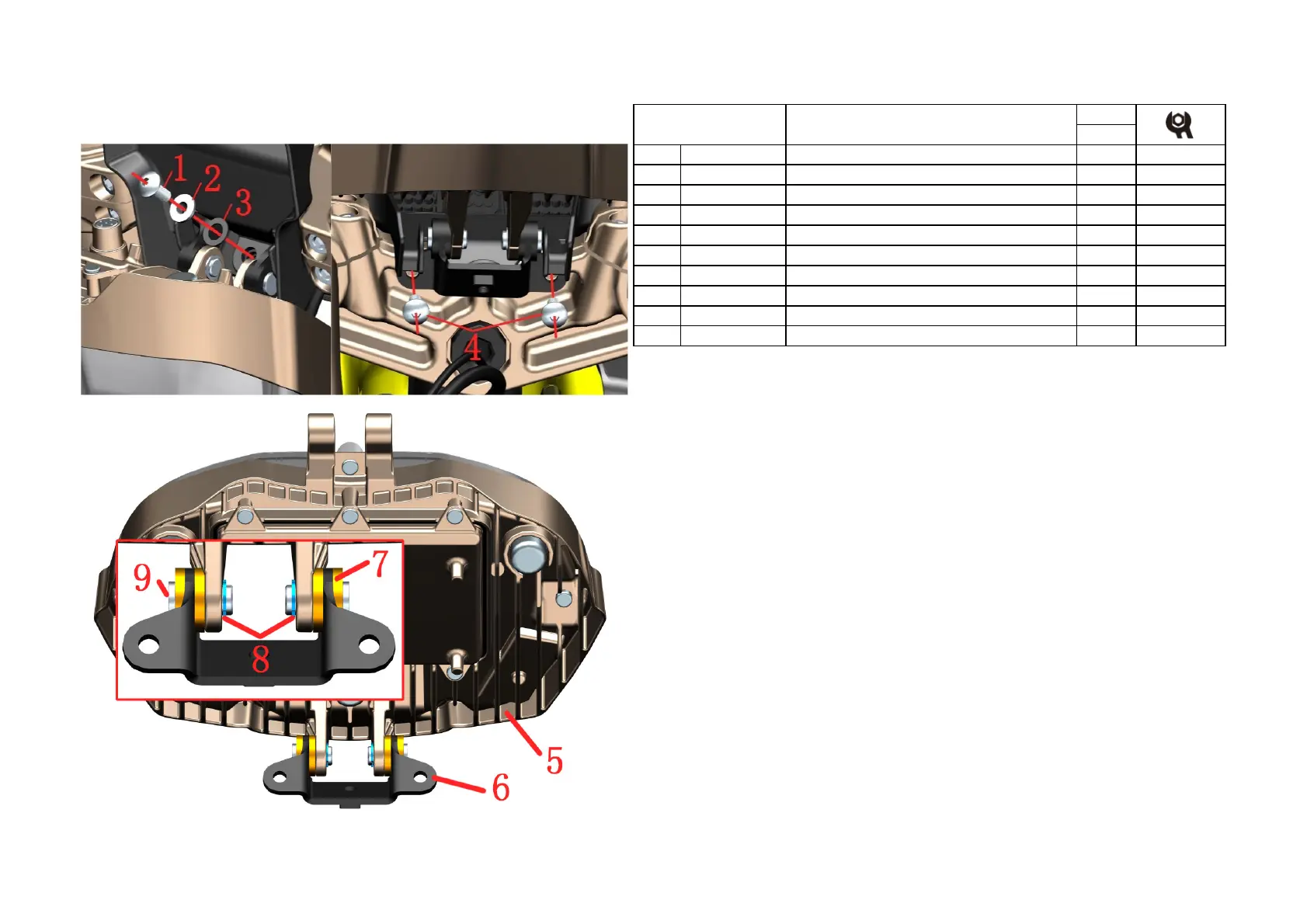

Fig.11 FRONT FORK
COMPONENT
PROCEDURE:
Headlight assembly
Turn the headlight assembly forward to expose the bolt at the bottom of the storage box, remove the bolt ,
and remove the bushing and cushion rubber .
Turn the headlight up and remove the two bolts at the bottom of the lower plate
Remove the headlight assembly
Remove the two pin shanks and remove the two pins
Separate the headlights from the bracket assembly
Remove two pieces of cushion rubber from the bracket
CAUTION:
Protect protective measures to prevent scratching the lampshade or paint finish.
The headlights use imported LED light sources. It is recommended not to change the internal structure of the
headlights. It is forbidden to destroy the sealing structure of the headlights, prevent water mist from forming
inside the lamps and affect driving safety.
Headlights assembly 2
