3、INTAKE SYSTEM COMPONENT 15
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1050954-007000
39
－
N008 Fuel injector
1
2 1050954-008000
39
－
N008 Fuel injector fixator
1
3 1251112-001093
M6×16 Hexagon flange bolt
（
color zinc
）
1
4 1251300-063093
Plywood M6×11×15
（
Environmental protection
）
8
5 1251100-102000
Non-standard bolt M6×16
（
304stainless steel
）
1
6 1251100-101000
Non-standard bolt M6×12
（
304stainless steel
）
2
7 1224200-129000 ZT310-V air filter 1
8 1051354-004000
Φ56×10 Hoop assembly 2
9 1050954-005000
TB39 Throttle body part 1
10
1251100-061093
M6×22 Hexagon flange bolt
（
color zinc
）
2
11 1050954-012000
TB39 Intake pipe assembly 1
12 1051453-007000
45×2.1 Fluorine rubber O-ring
1
PROCEDURE:
●Air filter
Remove bolt ⑸、⑹; loosen the pipe hoop assembly ⑻ against the end of the air filter, clamp the hoop on the
exhaust pipe with pliers and unplug the exhaust pipe connected to the exhaust port of the engine, and then use the
rubber plug supplied with the car to prevent foreign bodies from entering the engine. Remove the empty filter
assembly, splint nut ⑸.
●Throttle assembly
Use the plum blossom wrench to loosen the bolt ⑽,and remove the throttle assembly.Loosen the hoop⑻
between the intake pipe assembly ⑾ and throttle assembly ⑼, and then remove them separately.Remove the O-
ring ⑿ from the intake oipe assembly.Loosen the bolt ⑵ on the injector holder ⑶ with a sleeve. Remove the
holder and remove the injector ⑴.
CAUTION:
●
First it need to remove the cushion,side cover,oil tank outside cover and liner,rear shock absorber and electrical
device box etc.
●Before reassembly, check the O-ring ⑿ for damage and replace it if any.

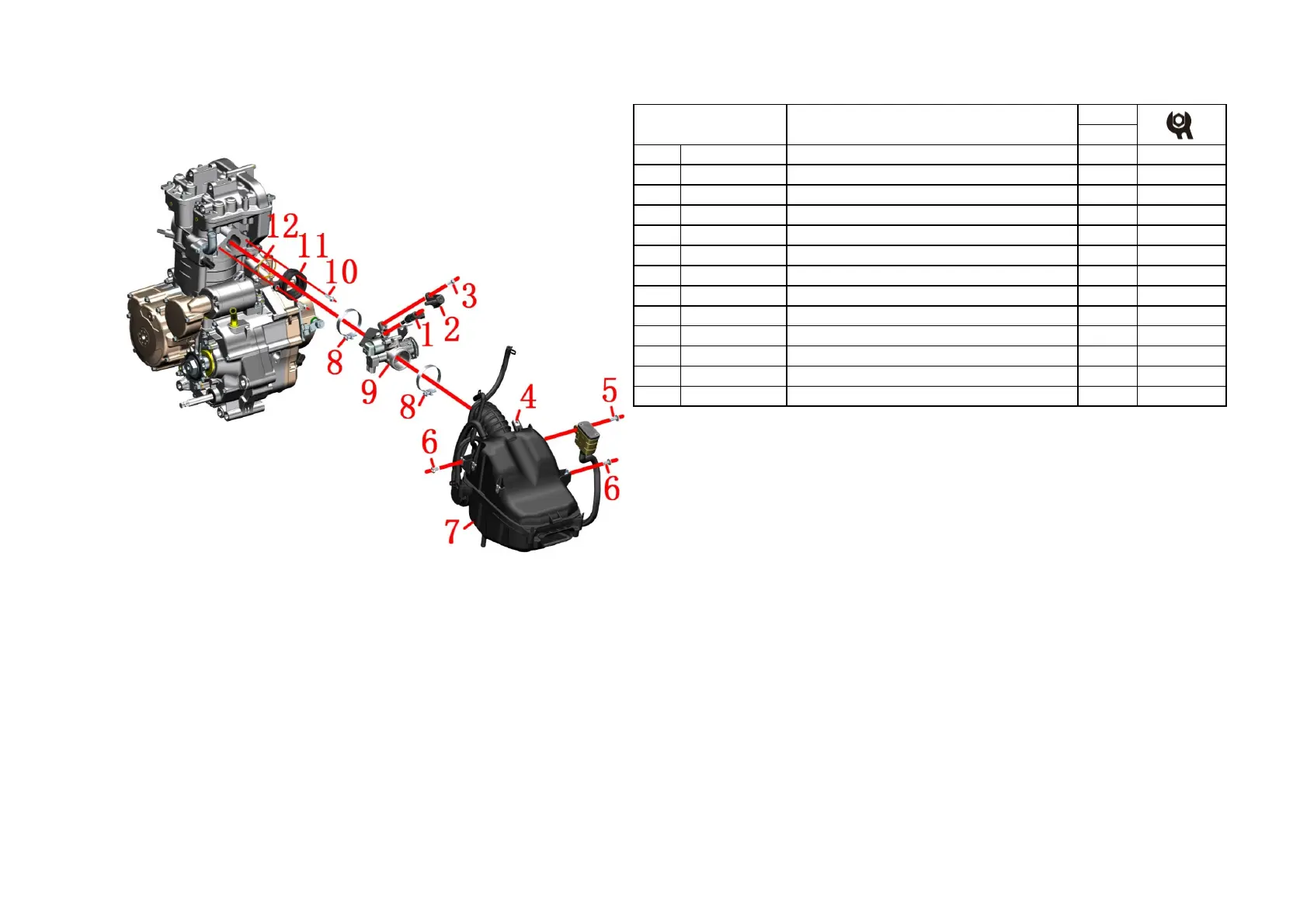

FIG.1 INTAKE SYSTEM
COMPONENT
Intake system component(Delphi EFI)
