Zontes ZT310-V User Manual

11、REAR COVER COMPONENT 97
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1250205-040095
GB70.1 inner hex bolt M8×16
（
color Zinc
）
4
2 1251100-101000 non-standard bolt M6×12 (304 stainless steel) 1
3 1244200-062000
Zt310-v rear backrest rubber
1
4 1244200-005000
ZT310
－
R buffer rubber of head cover
1
5 1274200-146000
Zt310-v rear backrest rubber holder
1
4024200-053051
Zt310-v rear backrest
4024200-074051
Zt310-v rear backrest (dark gray matte)
7 4044201-257051
Zt310-v rear decoration cover front cover
2
8 4044201-258051
Zt310-v rear decoration cover rear cover
2

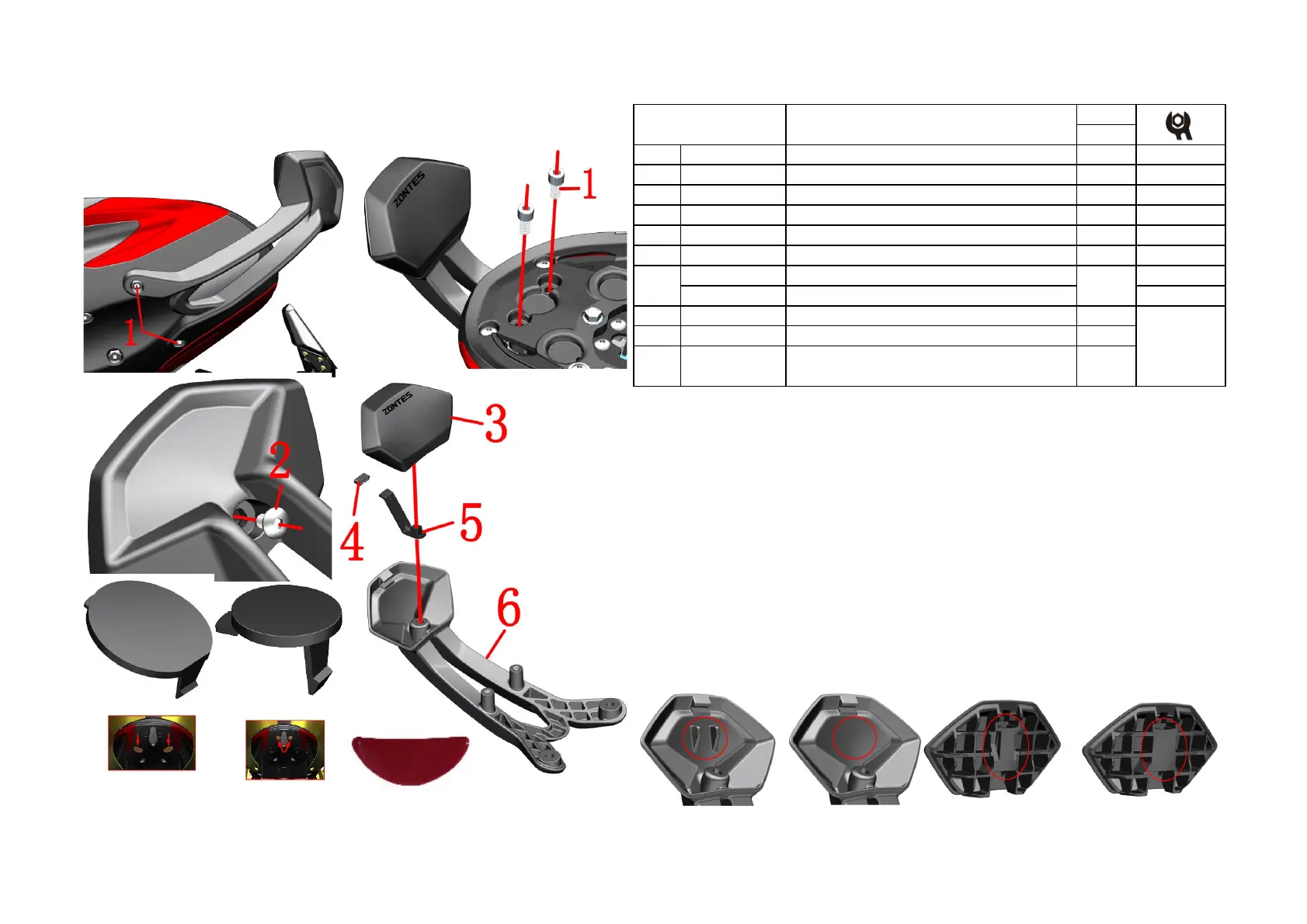

Fig.3 REAR COVER
COMPONENT
Backrest assembly componen
9 1244200-090000
Double sided tape for the front small cover of the rear
decoration cover
4
without
backrest
6 1
7 8 9
Old backrest New backrest Old backrest rubber New backrest rubber
PROCEDURE:
●Backrest assembly componen
Remove
the bottom two bolts ⑴.
Support the backrest assembly and remove the upper two bolts ⑴.Remove the backrest assembly from the
vehicle.
Flip to the back and remove the bolts ⑵.
Divided the backrest ⑹ and backrest rubber ⑶.
Remove the holder ⑸ from the backrest.Remove buffer ⑷ from the holder.
●without backrest
If without the backrest will send four units small cover and double tape to block up the hole of the rear backrest.
CAUTION:
●Remove the side cover, seat cushion, and cover decoration cover in advance.
●The material should be protected during discomponent to prevent damage to the paint.
●If want to change the old backrest rubber as the new one Need to polish off the two convex boss on old
backrest.
