5、FOOT PEDAL COMPONENT 38
CHK
A
DJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-061093 M6×22 Hexagon flange bolt 8.8 degree 1
1274100-039000 ZT250－S Gear swift rod spline of Rocker arm
1271200-163000 ZT250-S gearshift lever spline rocker arm (dark gray)
3 1250301-020093
（
）
4 1274100-041000
－
S shift lever adjustment screw
1
5 1250301-018093
－
（
）
6 1274200-177000
－
V The second generation shift lever step rocke
1
7 1274200-178000
－
V The second generation brake pedal
1
1274200-224000
－
V Front right pedal assembly
4064200-006051
ZT310－V Front right pedal assembly (dark gray matte)
12
8 1
PROCEDURE:
●Adjust the height of gear shift rod
Use an open-end wrench to loosen the nut ⑶ ,and nut ⑸ respectively. Use 8# open spanner to adjust the gear
shift rod ⑷ adjustment bolt until the height becomes suitable. Then tighten the nuts. If the above-mentioned
method can not adjust the gear shift rod to a satisfying position, take off bolt ⑴ and adjust gear shift rod spline
of rocker arm ⑵ with a straight screwdriver by shoving a little bit the groove in the middle while dragging it out.
Reassemble after the height is suitable. Pay attention to the aligning of the groove in the middle.
●Adjust the height of brake pedal
Use an open-end wrench to loosen the nut②. Spin the adjustment rod bolt① and adjust the brake pedal⑺ to
85mm up to the top pedal ⑻. Fix the adjustment rod bolt① and tighten Nut②.
CAUTION:
●Ensure the motorcycle is well supported during manipulation. Avoid falling accident.
●The height of gear shift rod should be ajusted to a suitable range. Otherwise the riding experience would be
influenced.
●The height of brake pedal should be ajusted to a suitable range. Otherwise the durance of braking shoe and
plate would be influenced. In severe case, ineffective braking is possible.
Adjust the hight of foot pedal

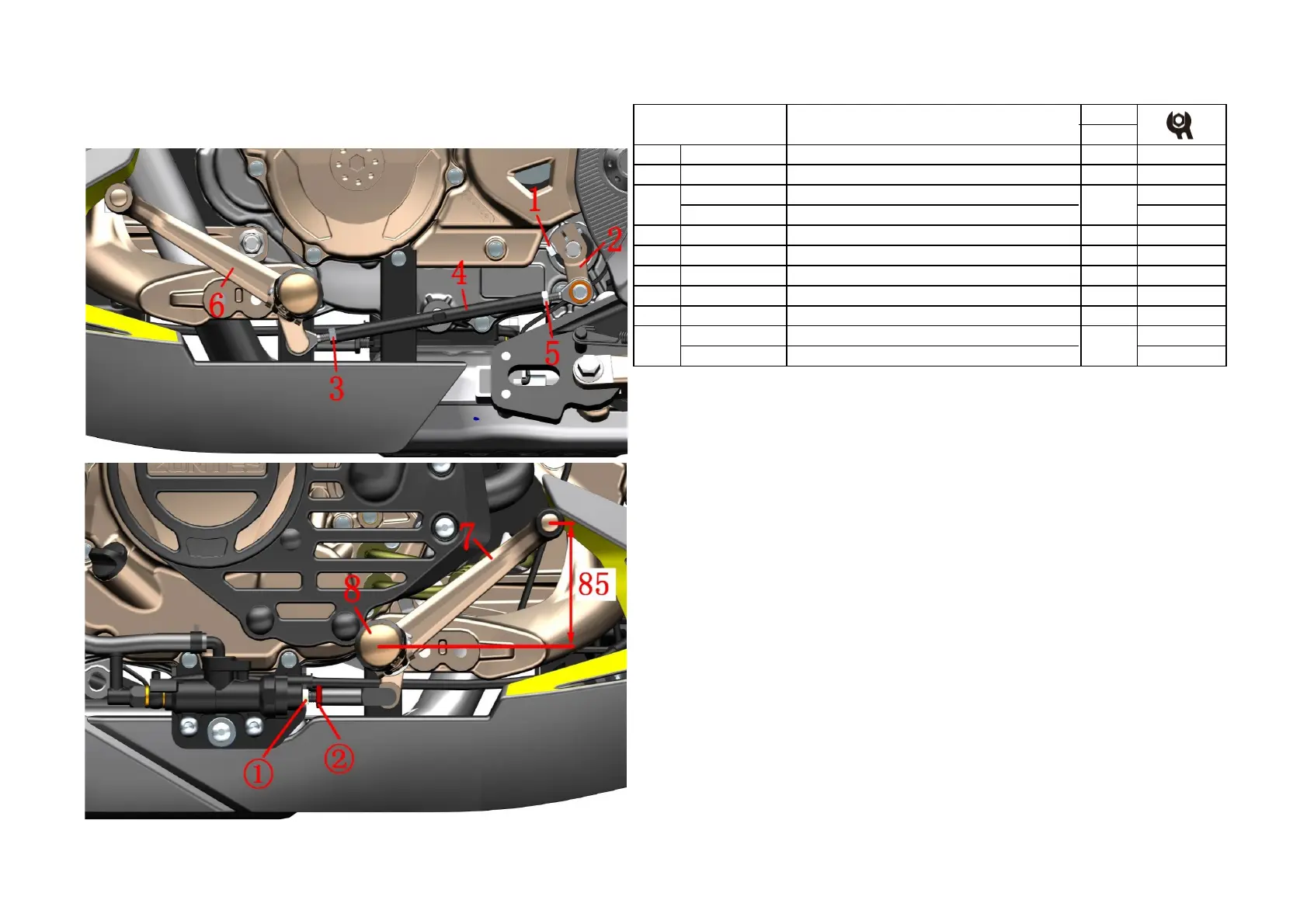

Fig.1 FOOT PEDAL
COMPONENT
To Next Page
