5、FOOT PEDAL COMPONENT 47
CHK
A
DJ
NO. PART NO. PART NAME QTY CAUTION
1 1250205-023000
GB70.1 inner hexagonal M8X35 (army green)
6
1274200-227000
ZT310
－
V Rear left pedal bracket assembly
1274200-226000
ZT310
－
V Rear right pedal bracket assembly
2 1
ZT310－V Rear right pedal bracket assembly (dark
gray matte)
4064200-008051
13
4064200-017051
ZT310－V Rear left pedal bracket assembly (dark gray
matte)
PROCEDURE:
●Rear left pedal bracket assembly
Remove 3 pieces bolts ⑴ on the left side, take off the left pedal bracket assembly ⑵
Remove 3 pieces bolts ⑴ on the right side , take off the right pedal bracket assembly ⑶
CAUTION:
●The rear left and right foot pedal brackets are always equipped with the whole set,including the side cover
round glue, pedal bracket, pedal etc.

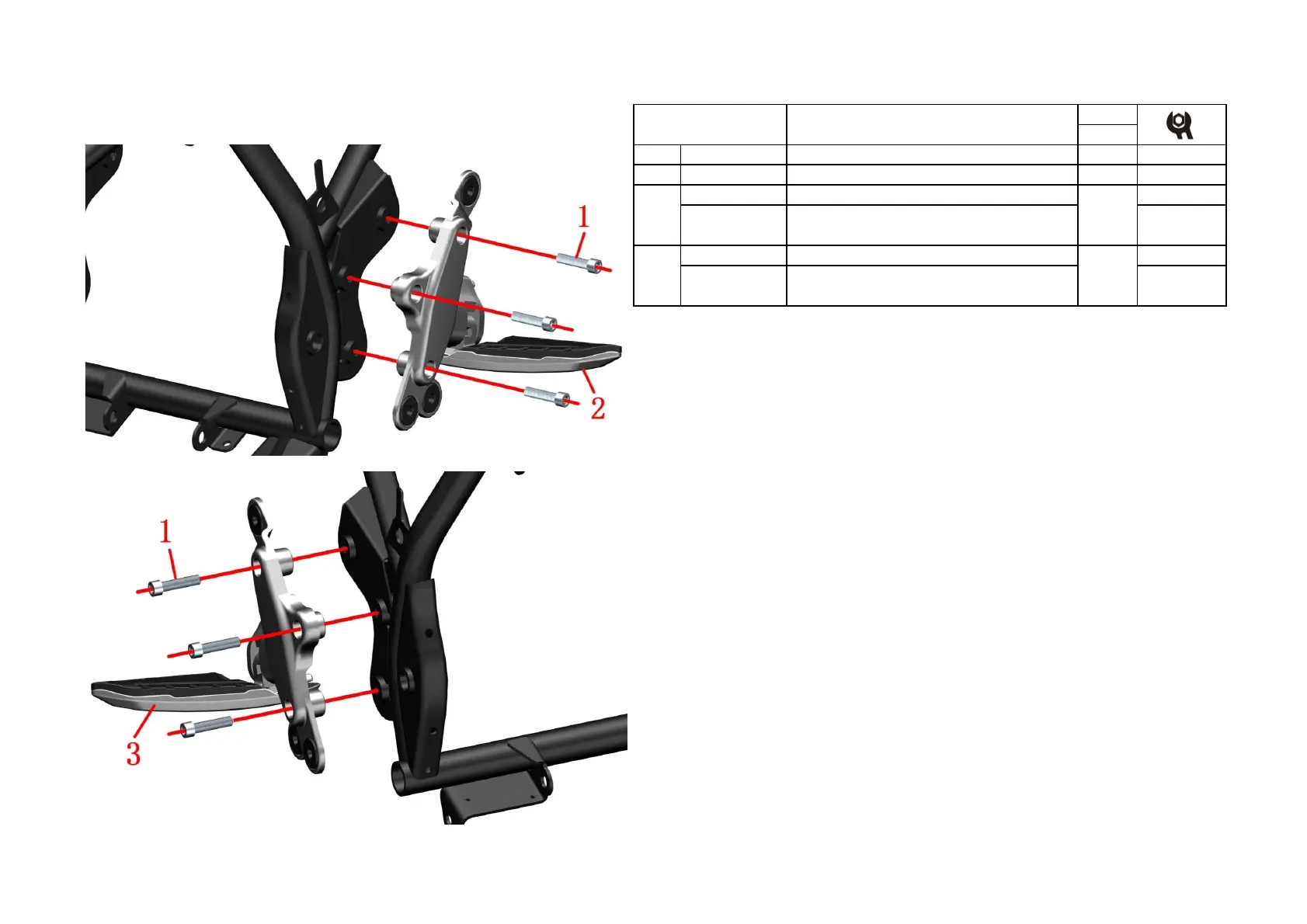

Fig.10 FOOT PEDAL
COMPONENT
Rear pedal assembly
