Zontes ZT310-V User Manual

10、GUARD BAR COMPONENT 94
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1
1251300-063093
plywood M6×11×15
（
color zinc
）
8
4044201-344051
Engine decorative cover left front（Dark gray matte red）
red
4044201-336051
Engine decorative cover left front（Dark gray matte yellow）
yellow
4044201-246051
Engine decorative cover left front（Dark gray matte）
black
4044201-340051
Engine decorative cover left front（Dark gray matte white）
white
4044201-348051
Engine decorative cover left front（Dark gray matte purple）
purple
4044201-345051
Engine decorative cover left back（Dark gray matte red）
red
4044201-337051
Engine decorative cover left back（Dark gray matte yellow）
yellow
4044201-247051
Engine decorative cover left back（Dark gray matte）
black
4044201-341051
Engine decorative cover left back（Dark gray matte white）
white
4044201-349051
Engine decorative cover left back（Dark gray matte purple）
purple
4044201-342051
Engine decorative cover right front（Dark gray matte red）
red
4044201-334051
Engine decorative cover right front（Dark gray matte yellow）
yellow
4044201-248051
Engine decorative cover right front（Dark gray matte）
black
4044201-338051
Engine decorative cover right front（Dark gray matte white）
white
4044201-346051
Engine decorative cover right front（Dark gray matte purple）
purple
4044201-343051
Engine decorative cover right back（Dark gray matte red）
red
4044201-335051
Engine decorative cover right back（Dark gray matte yellow）
yellow
4044201-249051
Engine decorative cover right back（Dark gray matte）
black
4044201-339051
Engine decorative cover right back（Dark gray matte white）
white
4044201-347051
Engine decorative cover right back（Dark gray matte purple）
purple

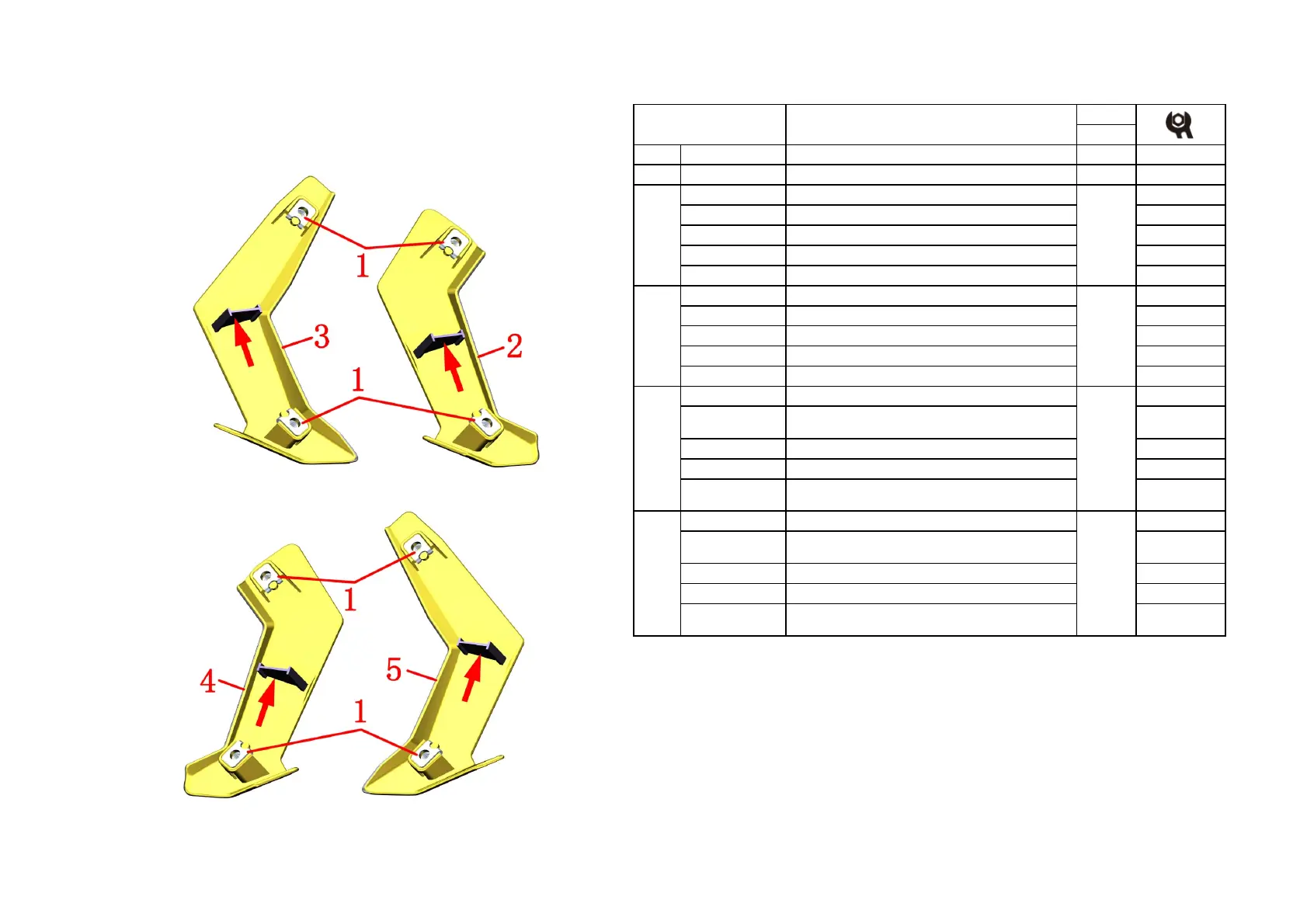

Fig.4 GUARD BAR
COMPONENT
Engine decorative cover components
5 1
PROCEDURE:
●Left engine decorative cover assembly
1.Remove the two nuts ⑴ from the left front decorative cover ⑵ of the engine.
2.The same method remove the nuts ⑴ from the left back decorative ⑶, the right front decorative cover ⑷,
and the right back decorative cover ⑸.
CAUTION:
●Protect the engine decorative cover paint to prevent scratches.
●Before replacing the engine decorative cover, check whether the clip indicated by the arrow has been cut
short,if not, cut it first and then assemble it on the bumper.
3 1
4 1
2 1
