Zontes ZT310-V User Manual

6、COOLING SYSTEM COMPONENT 58
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1224100-037000 0 grade flame retardant cable tie (black 2.5×100) 2
2 1274200-090000
ZT310 Hoop of cooling liquid tube
（
φ26
）
2
3 1251112-002093 M6×30 Hexagon flange bolts (color zinc) 1
4 1244200-068000 ZT310-R engine inlet water pipe 1
5 1274200-041000
ZT310 Cooling liquid tube clamp
（
φ26
）
3
6 1244200-012000
ZT310
－
R Engine cooling liquid passing tube
1

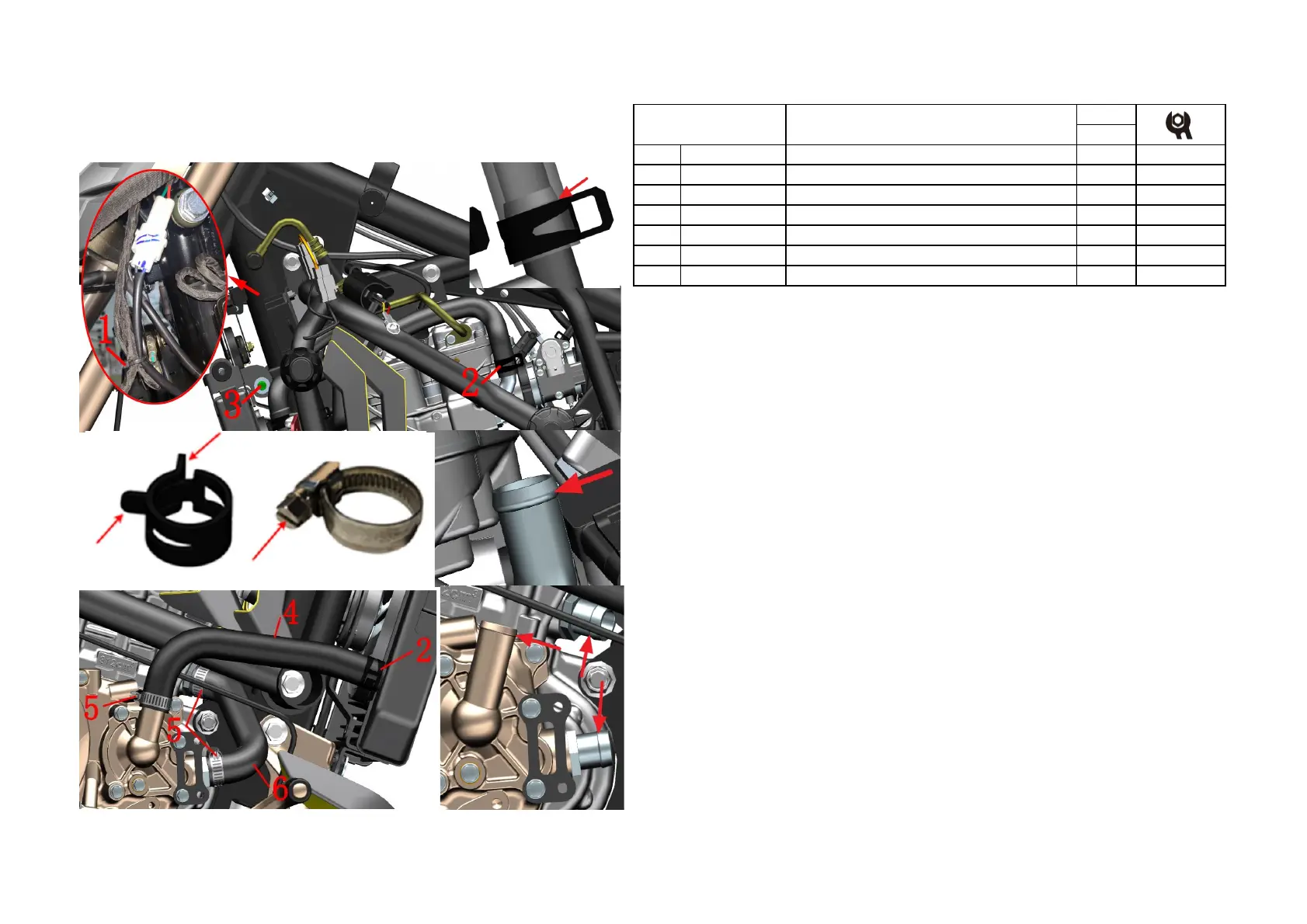

Fig.9 COOLING SYSTEM
COMPONENT
PROCEDURE:
●Main water tank assembly
Locate the connector for the radiator fan and temperature sensor on the left side of the vehicle near the front of
the tank and unplug the connector.
Cut the two straps ⑴.
Use the pliers to clamp the hoop ⑵ and move the anti-slip boss up to release the hoop.
Remove the bolt ⑶.
Pull out the water pipe after wearing the waterproof gloves. Remove the hoop ⑵.
Use the pliers to remove the hoop ⑵ on the right side and pull out the engine inlet pipe ⑷. Close the radiator
end and remove the hoop.
Use a flat-blade screwdriver to loosen the three clamps ⑸ and remove the boss indicated by the arrow.
Remove the inlet pipe ⑷ and the water pipe ⑹ and then remove the clamp ⑸ from the water pipe.
Remove the main tank assembly.
CAUTION:
●Motorcycle should be well supported.Manipulation should start after the engine is completely cooled down.
●【1】 used for sliding clutch engine.【2】 used for ordinary clutch engine.
●
When reassembling, be careful that the clamps and hoops should be prevented from loosening on the inside of
the boss.
Main water tank assembly 1
