3、INTAKE SYSTEM COMPONENT 16
CHK
ADJ
N
O. PART NO. PART NAME QTY CAUTION
1 1251100-101000
Non-standard bolt M6×12 (304 stainless steel)
2
2 1251100-102000
Non-standard bolt M6×16 (304 stainless steel) 1
3 1251300-063093
Clamp plate M6×11×15 (environmental color) 8
4 1224200-170000
ZT310-V1 Air filter (Bosch) 1
5 1051354-004000
Φ56×10 pipe clamp assembly 2
6 1050954-038000
ZT40 three-in-one valve body sub-assembly
manufacturing parts
1
7 1251100-061093
M6×22 Hexagon flange bolts (Class
8.8/Environmental Protection Color Zinc)
2
8 1250105-138093
GB57
89M6×20 (environmental color)
1
9 1050968-002000
ZT1P58MJ injector retainer 1
10 1050954-023000
11 1050954-034000
ZT180MN intake pipe assembly (Bosch)
1
12 1051454-016000
45×2.5 fluorine rubber O-ring 1
PROCEDURE:
●Air filter
Remove the bolts ⑴, ⑵,⑷; loosen the hose clamp assembly ⑸ on the side of the air filter, clamp the clamp on
the exhaust pipe with pliers and pull out the exhaust pipe connected to the exhaust port of the engine, and then
use the rubber plug that was delivered with the bike. Plug it well to prevent foreign matter from entering and
damaging the engine. Remove the air filter assembly and splint nut (3).
●Thro
ttle valve assembly
Use a wrench to remove the bolt ⑺ and remove the throttle valve assembly. Loosen the pipe clamp ⑸ between
the intake pipe assembly ⑾ and the throttle valve component ⑹, and remove them respectively. Remove the O-
ring ⑿ from the intake pipe assembly. Remove the bolt ⑻ that fixes the injector holder ⑼ to remove the holder,
and remove the injector ⑽.
CAUTION:
●
First it need to remove the cushion,side cover,oil tank outside cover and liner,rear shock absorber and electrical
device box etc.
●Before reassembly, check the O-ring ⑿ for damage and replace it if any.

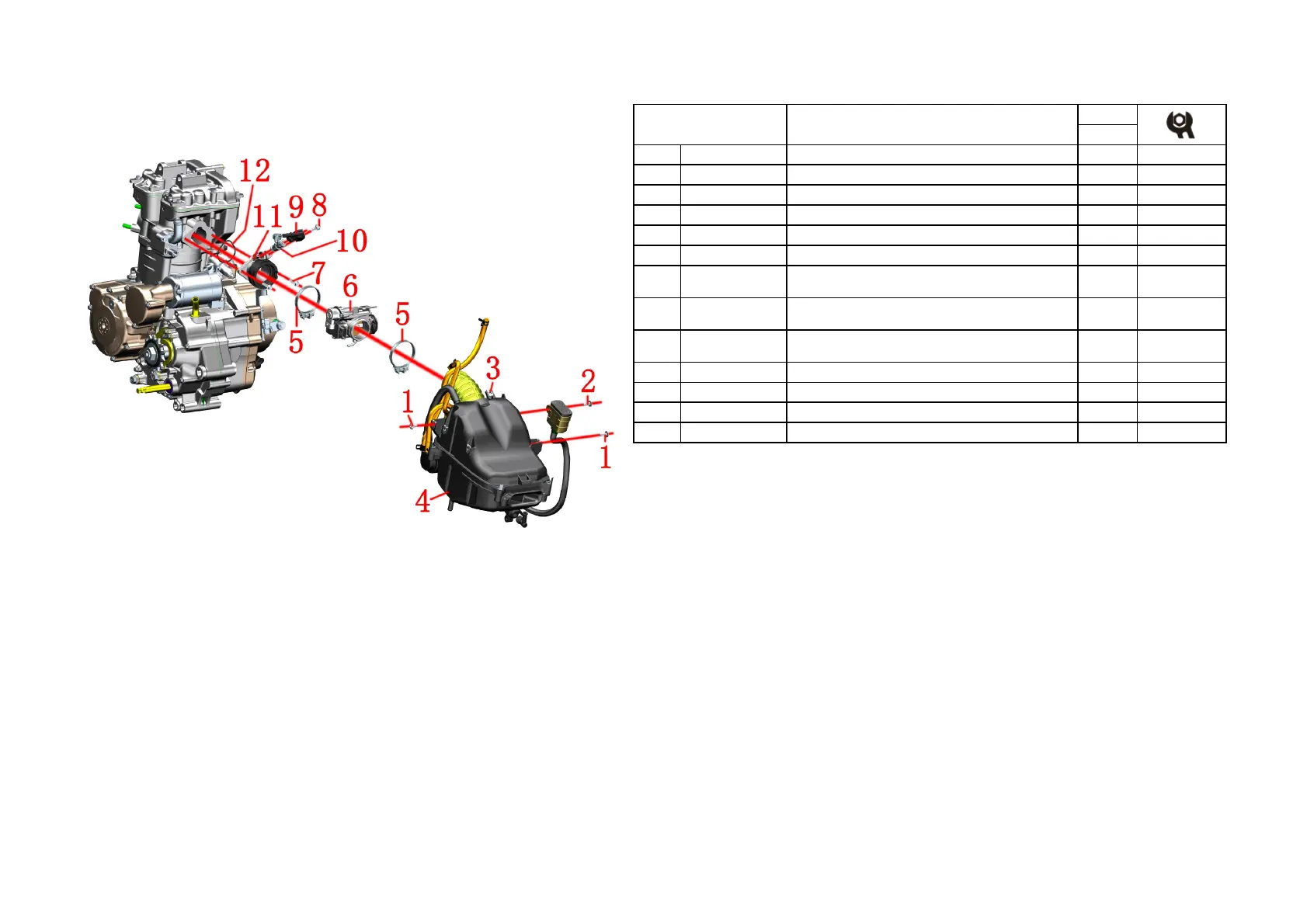

FIG.2 INTAKE SYSTEM
COMPONENT
Intake system components (Bosch EFI)
