Zontes ZT310-V User Manual

5、FOOT PEDAL COMPONENT 45
CHK
A
DJ
NO. PART NO. PART NAME QTY CAUTION
1 1250105-150093
GB5789M8×45
（
environmental color-zinc
）
1
2 1274200-092000
ZT310
－
V Front left pedal bracket
1
3 1251500-048000
ZT250
－
S Pedal support gasket
1
1274100-035000
ZT250
－
S Foot pedestal
1271200-161000
ZT250
－
S Foot pedestal (dark gray)
6 1264100-003000 front left foot pedal torsional spring 1
7 1274100-012000 ZT250－S Foot pedal pin axle 1
8 1264100-006000 ZT250－S Foot pedal circlip 1
9 1274200-225000
ZT310
－
V Front left pedal assembly
1
PROCEDURE:
●Front left pedal bracket component
Refer to to steps above, remove the pedal bracket component.
Use the seelve to remove the blot ⑴ , take off the bearing gasket ⑶ ,shift lever ⑷ and front left pedal assembly
by the order.
●Front left pedal component
Remove the circlip ⑻ and after taking off the pin⑺, separate pedal bearing ⑸ ,torsion spring ⑹ and front left
pedal assembly ⑼.
CAUTION:
●The bearing washer and the boss of the support should be placed and assembled.
●The pedal torsion spring pays attention to the installation direction.
1274200-292000
1274200-177000
ZT310－V The second generation shift lever step
rocker (dark gray)
ZT310－V The second generation shift lever step
rocker
14
5 1
Front left footrest component

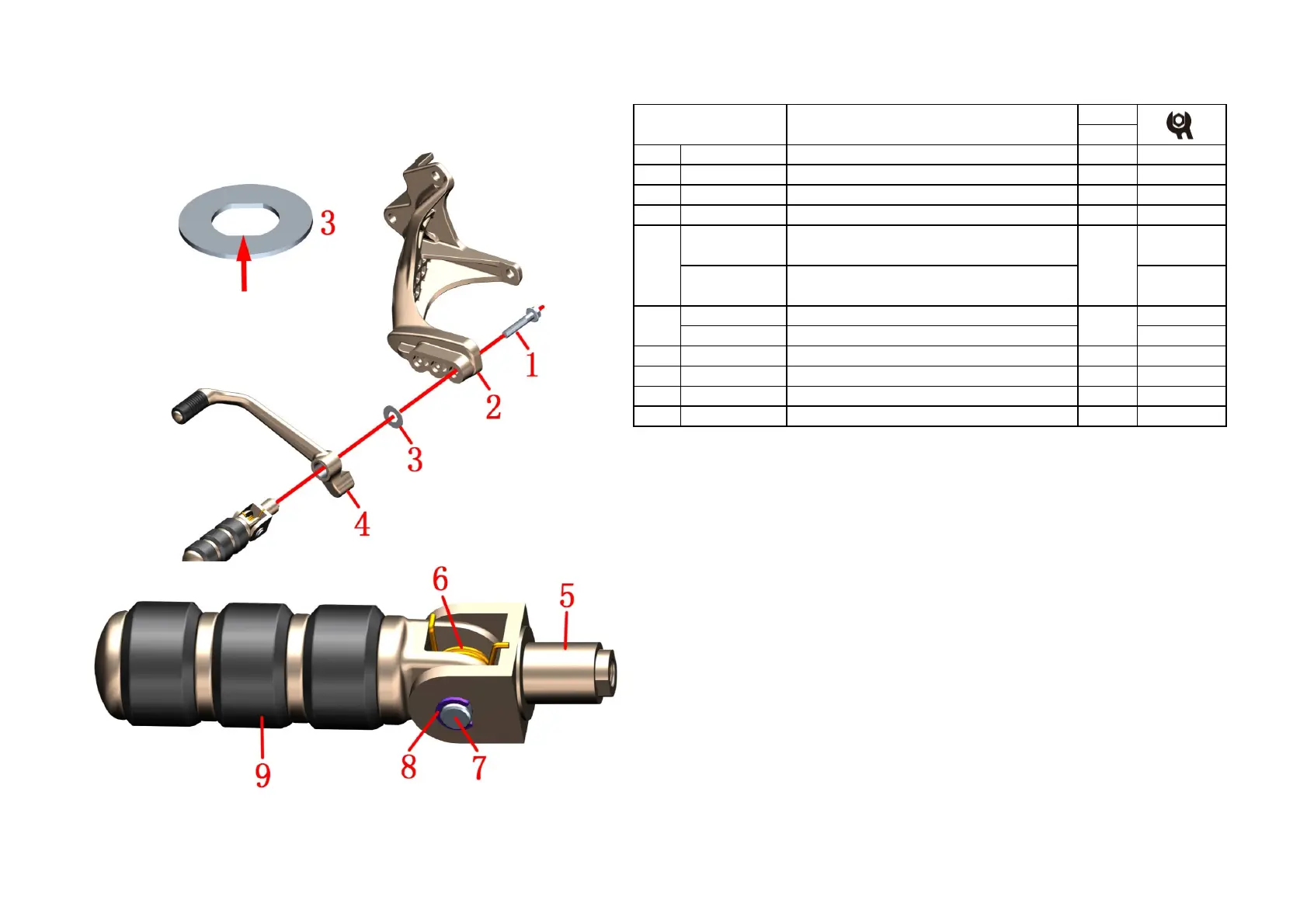

Fig.8 FOOT PEDAL
COMPONENT
