Zontes ZT310-V User Manual

7、FRONT FORK COMPONENT 72
PROCEDURE:
●Rearview mirror
Hold the mirror stem in one hand, remove the nut ④ with a sleeve, and remove the small pad ③, the spring ②
and the large pad ①. Remove the mirror from the front brake master pump.
●Right handlebar to put rubber sleeve, balance block
Push the rubber sleeve ⑸ with the right handlebar to push forward to expose the upper balance block fixing
hole; use the tool to press the convex parts at both ends of the elastic block on the balance block and pull out the
balance block assembly ⑷, and then put the right handle Remove the rubber sleeve ⑸.
●Right handlebar half cover
Hold the front disc brake main pump ⑵ with one hand, and remove the bolt ⑺ with the hexagon socket tool.
Remove the wire plug connector of the sub switch ⑹ and pull it out.
●Front brake switch replacement
Unplug the brake switch
Remove the bolt ⑤ attached to the front brake main pump and replace the front brake switch. Note that the boss
on the brake switch is aligned with the limit hole at the arrow indication of the front brake main pump.
CAUTION:
●The motorcycle should be fixed after horizontal support.
●Periodically check that the fluid level of the brake fluid is between 3/4 of the observation window.
●Do not flush the cup directly with high pressure water.
●When assembling the balance block, align the protruding parts at both ends of the shrapnel with the fixing
holes on the handle and then insert the direction into the holes.
●The small spacer of the rear view mirror anti-rotation limit slot needs to be aligned with the slot on the mirror
bar bolt.
●The right handlebar refers to the switch to replace the throttle line.
●The joint between the front disc brake main pump and the half cover should be aligned with the right hand to
match the triangle on the switch.
CHK
ADJ
NO. PART NO. PART NAME QTY
备注
1 1194100-002000 ZT250－S Right rearview mirror 1 CAUTION
2 1100300-044000 Front disc brake main pump component (without handle 1
3 1134100-032000 ZT250－R Right Hand Rocker (Machine) 1
4 1134200-023000
ZT250－R Balancing block
1
5 1244100-042000 ZT250－R Right hand rubber sleeve 1
6 Right handleabar switch 1
7 1250205-031091 GB70.1M6×30 (stainless steel) 2
8 1100100-583000 ZT125T front brake switch 1 after sale
Right handlebar component

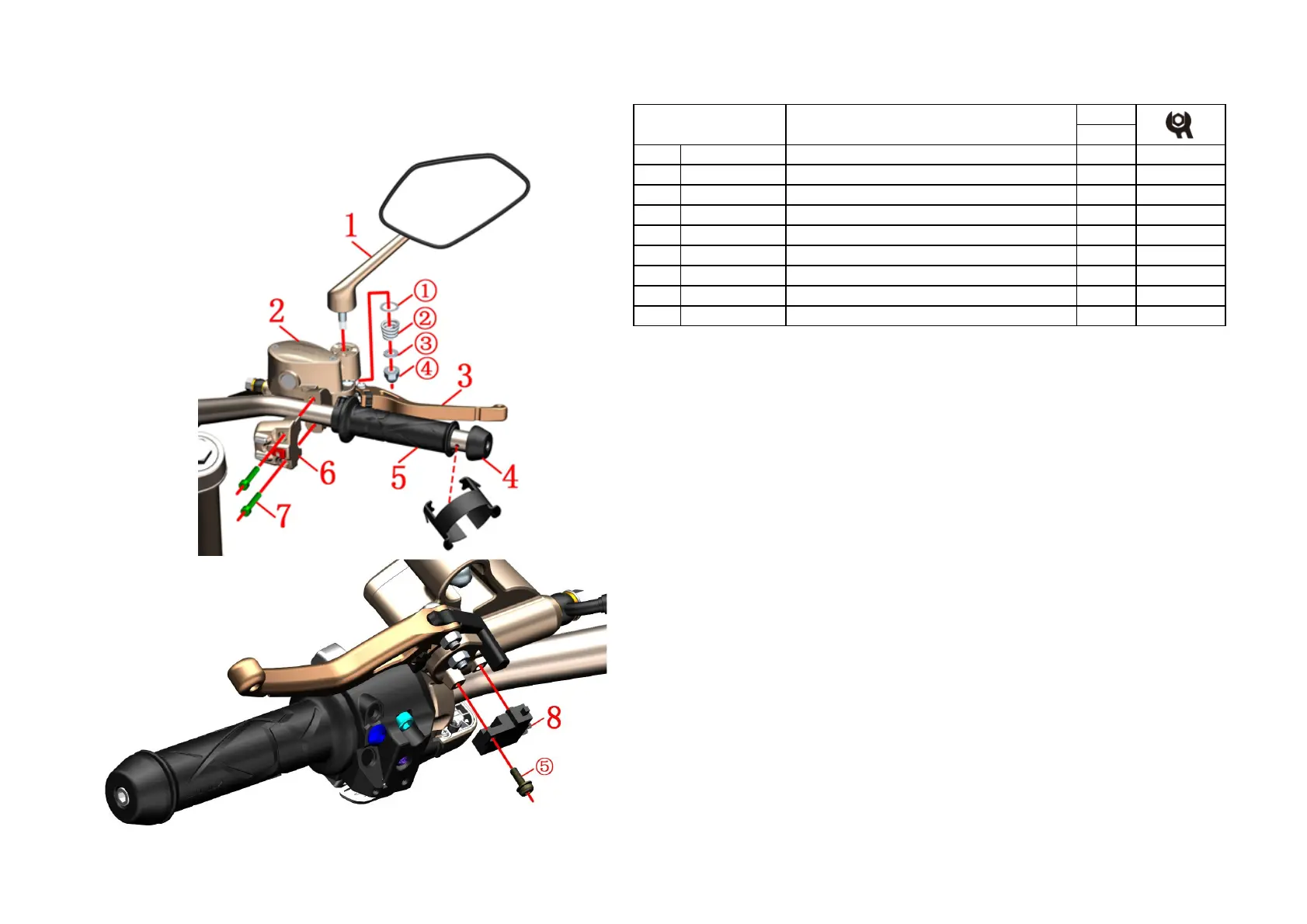

Fig.13 FRONT FORK
COMPONENT
