7、FRONT FORK COMPONENT 71
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1224200-121000 ZT310 －V storage box 1
2 1170300-063000 front left turn signal light 1
3
－
V front turn signal left bracket 1
4 1224200-123000 ZT310－V front turn signal right bracket 1
5 1170300-064000 front right turn signal light 1
6 1244100-004000 ZT250－S Flanging bushing buffer 2
7 1274200-132000 ZT310－V headlamp left bracket 1
8 1250205-040095
GB70.1 inner hex bolt M8×16
（
）
9 1274200-134000 ZT310－V headlamp right bracket 1

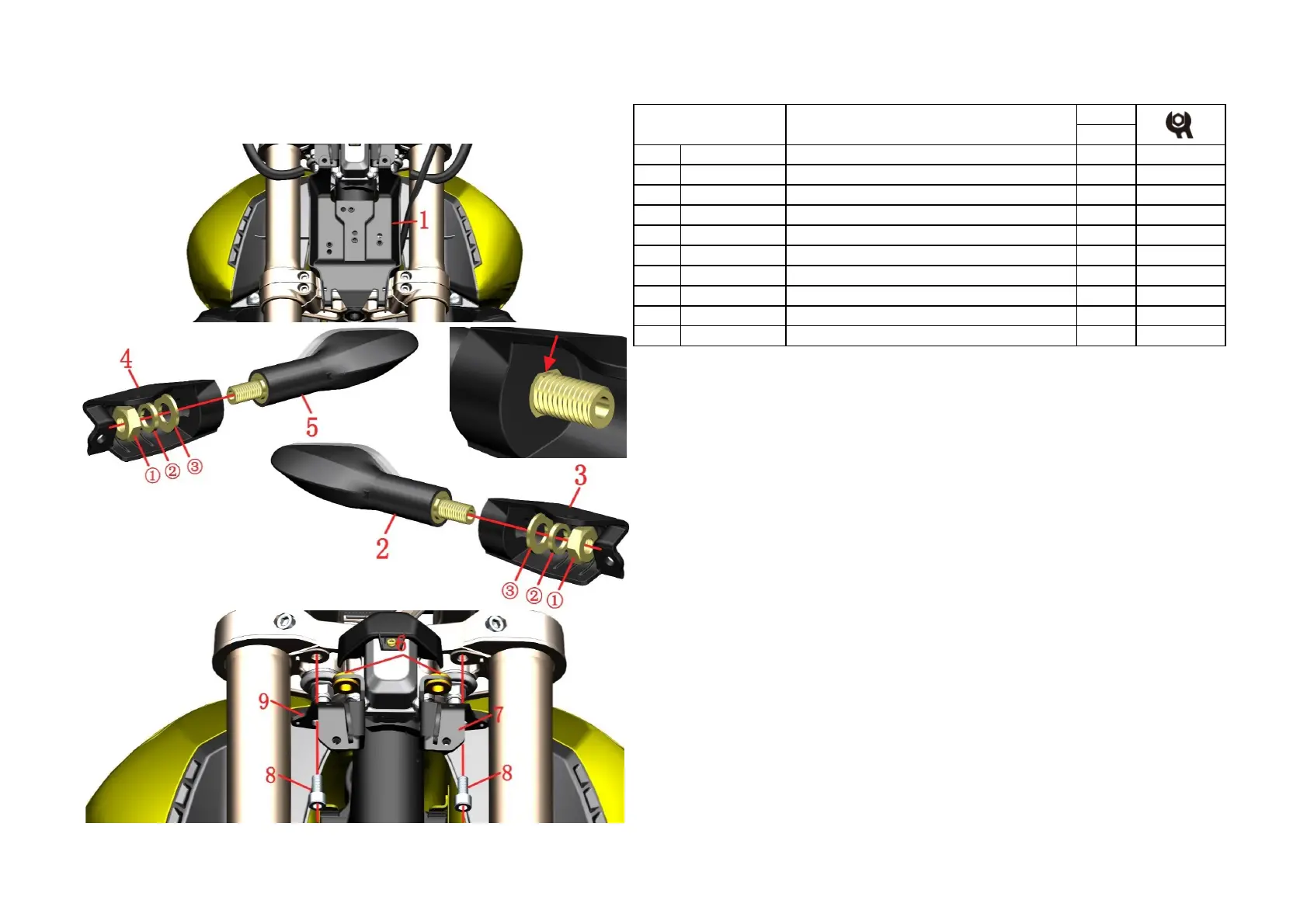

Fig.12 FRONT FORK
COMPONENT
Headlights assembly 3
●Storage box
Remove all the cables and remove the cable box ⑴
●Turn signal assembly
Turn the turn signal assembly to the back, use the open-end wrench to remove the nut ① that comes with the
turn signal, and remove the spring pad ② and the gasket ③. Separate the turn signal from the bracket.
●Headlight bracket
Remove 2 pieces of cushion rubber ⑹
Grab the left bracket ⑺ or the right bracket ⑼ and remove the bolt ⑻
CAUTION:
●When reassembling, check if there is any pressure on the wire to prevent it from tightening Short circuit
caused by bolts. Pay attention to the lamp connector, do not insert the wrong, turn left Green + orange; right turn
signal is green + blue.
●Note that the positioning boss on the turn signal corresponds to the slot on the bracket
To Next Page
