4、REAR WHELL COMPONENT 30
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1224200-120000 ZT310 rear turning light holder 1
2 1174200-019000
－
3 1174200-020000
－
4 1174200-021000
－
PROCEDURE:

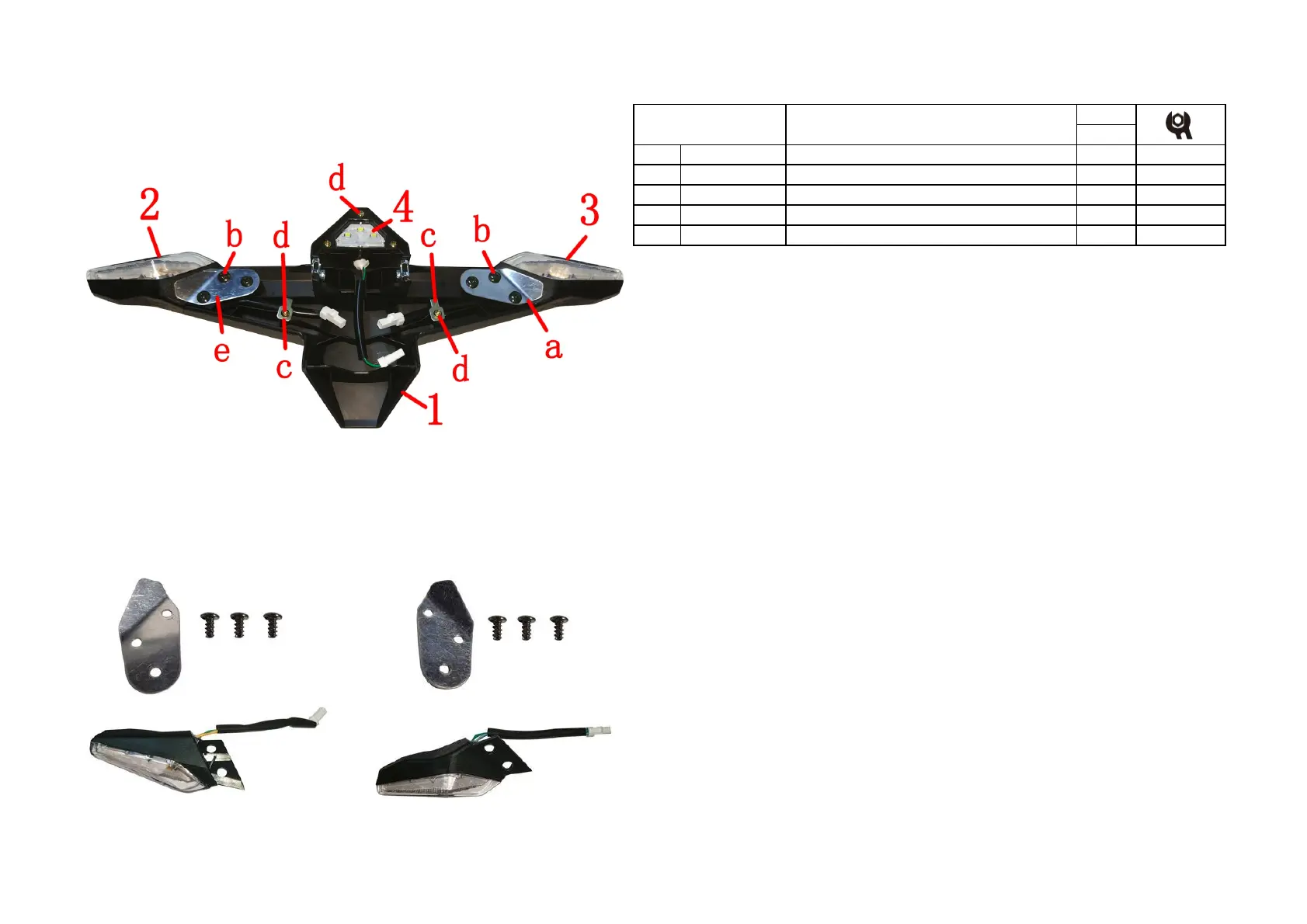

●Rear turning light（license lamp included）
Grip the rear turning light holder ⑴ then disassemble bolts "d" on the license lamp ⑷.
Disassemble bolts "b" and "d" on the diagram left side, and then dismantle left press line plank of "e" and press
line plank "c", dismantle the L, rear turning light ⑵ ;follow the steps above dismantle right press line plank of
"a" and press line plank "c".
CAUTION:
●Avoid fasterning the bolt on the cable while reassembling in case of shrt circuit.
Fig.4 Rear wheel, swinging
arm assembly
rear turning light parts for after sales service
－
－
