5、FOOT PEDAL COMPONENT 44
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-061093 M6×22 Hexagone flange bolt 8.8 degree 3
2 1274100-039000 ZT250－S Gear shift rod spline rocker arm 1
3 1274100-043000 Knuckle Bearing SALJK6C 1
4 1250303-010093 GB6177.1M6（environmental color-zinc） 1
5 1250301-018093
－
（
）
6 1274100-041000 shift lever adjusting screw 1
7 1250301-020093 GB6170M6（environmental color-zinc） 1
8 1274100-042000 Knuckle Bearing SAJK6C 1
Shift lever assembly
PROCEDURE:
●Gear shift rod
assembly
Use the 10# open-end wrench to loosen the nut ⑸ and nut ⑺ , use the 8# open-end wrench to rotate the groove
of adjustment screw ⑹ and take it off. Take off the nut ⑸ and nut ⑺ . Using the 10# open-end wrench to fix the
nut ⑷ then using the 8# sleeve remove the bolts ⑴ ,take off the bearing⑶.Using the 8# sleeve remove the bolts
⑴ at the shift lever step rocker,take off the bearing ⑻. Using the 8# sleeve remove the bolts ⑴ ,then using a flat-
blade screwdriver to pull the spline rocker arm ⑵ in the middle slot slightly and pull it out.
CAUTION:
●Support the motorcycle properly while disassembling in case it falls down.。
●Pay attention to distinguishing the nuts at both ends of the knuckle bearing and the adjustment screw。

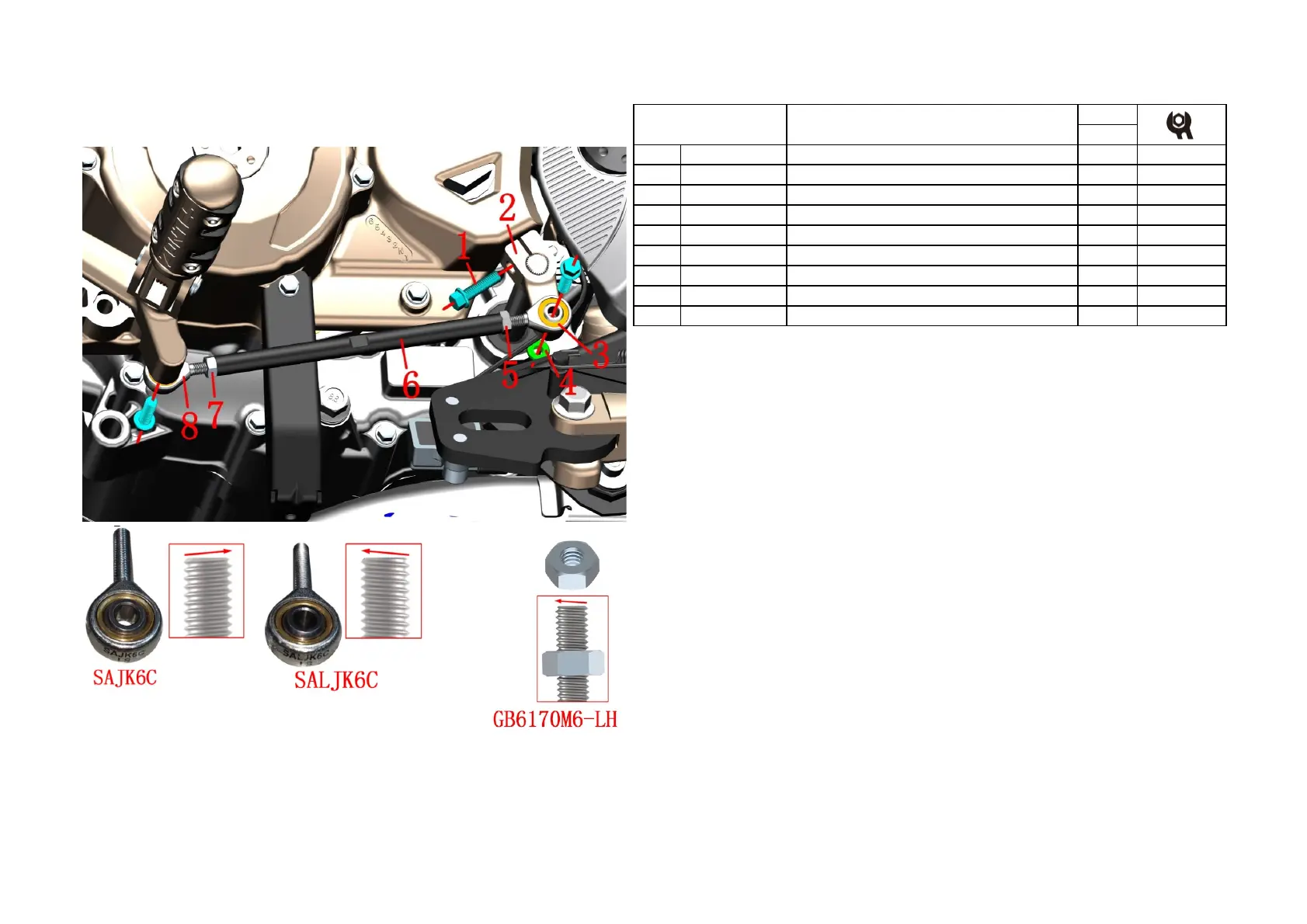

Fig.7 FOOT PEDAL
COMPONENT
